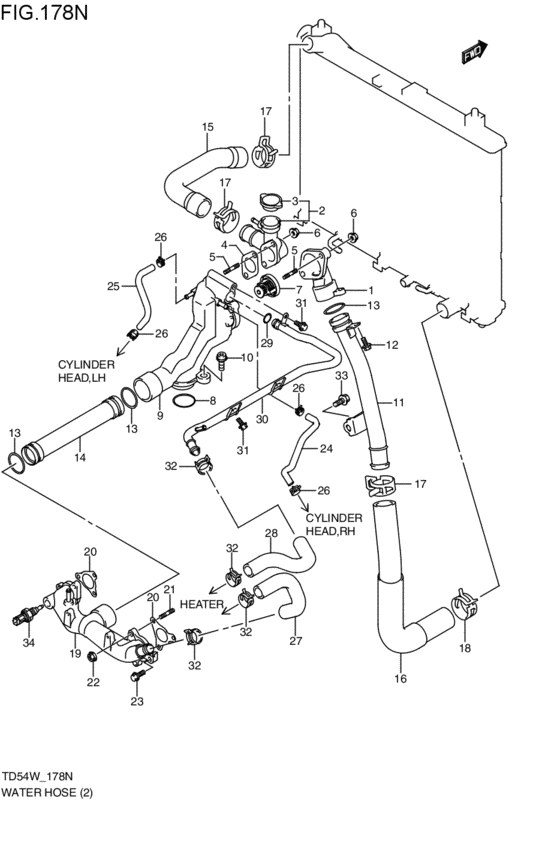

water hose (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-67D01-000 CAP,WTR THERMOSTATH27A; 2005-05-01~2006-06-01 |
17561-67D01-000 |
US $77.52 |
||
|
2
|
2
17570-52D00-000 CAP ASSY,WTR OUTLETH27A; 2005-05-01~2006-06-01 |
17570-52D00-000 |
from US $75.80 |
||
|
3
|
3
17730-62H00-000
キャップ,ラジエータ(1.1)
H27A; 2005-05-01~2006-06-01 |
17730-62H00-000 |
— | ||
| replacement | |||||
|
3
|
3
17920-68HA0-000 CAP,RADIATOR 1.1H27A; 2005-05-01~2006-06-01 |
17920-68HA0-000 |
from US $12.80 |
||
|
4
|
4
17579-67D00-000 GASKET,WTR OUTLET CAPH27A; 2005-05-01~2006-06-01 |
17579-67D00-000 |
from US $4.95 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
H27A; 2005-05-01~2006-06-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUDH27A; 2005-05-01~2006-06-01 |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-10083-000
Nut
H27A; 2005-05-01~2006-06-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTH27A; 2005-05-01~2006-06-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
17670-77E11-000 THERMOSTAT,WATER 82 DEGH27A; 2005-05-01~2006-06-01 |
17670-77E11-000 |
from US $25.16 |
||
|
8
|
8
09280-44008-000 O RING(D:2.4,ID:39.5)H27A; 2005-05-01~2006-06-01 |
09280-44008-000 |
from US $2.81 |
||
|
9
|
9
17690-66J00-000 CASE,THERMOSTATH27A; 2005-05-01~2006-06-01 |
17690-66J00-000 |
US $163.02 |
||
|
10
|
10
07120-10253-000
Bolt
H27A; 2005-05-01~2006-06-01 |
07120-10253-000 |
— | ||
| replacement | |||||
|
10
|
10
07120-1025A-000 BoltH27A; 2005-05-01~2006-06-01 |
07120-1025A-000 |
from US $5.88 |
||
|
11
|
11
17550-66J00-000 PIPE,WATER INLETH27A; 2005-05-01~2006-06-01 |
17550-66J00-000 |
US $61.60 |
||
|
12
|
12
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
12
|
12
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
09280-34005-000 O RING(D:3.5,ID:33.7)H27A; 2005-05-01~2006-06-01 |
09280-34005-000 |
from US $2.08 |
||
|
14
|
14
17589-77E00-000 PIPE,WTR OUTLETH27A; 2005-05-01~2006-06-01 |
17589-77E00-000 |
from US $17.78 |
||
|
15
|
15
17841-66J00-000 HOSE,RADIATOR INLETH27A; 2005-05-01~2006-06-01 |
17841-66J00-000 |
from US $16.99 |
||
|
16
|
16
17851-66J00-000 HOSE,RADIATOR OUTLETH27A; 2005-05-01~2006-06-01 |
17851-66J00-000 |
US $60 |
||
|
17
|
17
09401-35403-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-35403-000 |
from US $2.56 |
||
|
18
|
18
09401-35403-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-35403-000 |
from US $2.56 |
||
|
19
|
19
17570-66J00-000
CAP,WTR OUTLET
H27A; 2005-05-01~2006-06-01 |
17570-66J00-000 |
— | ||
|
20
|
20
17579-85FA0-000 GASKET,WTR OUTLET CAPH27A; 2005-05-01~2006-06-01 |
17579-85FA0-000 |
US $12.80 |
||
|
21
|
21
01421-06203-000
Stud bolt (l:20)(green)
H27A; 2005-05-01~2006-06-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
21
|
21
01421-0620A-000 BOLT,STUDH27A; 2005-05-01~2006-06-01 |
01421-0620A-000 |
from US $1.12 |
||
|
22
|
22
08316-10063-000
Nut
H27A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUTH27A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
01550-06203-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-0620B-000 BOLTBolt, inspection cap H27A; 2005-05-01~2006-06-01 |
01550-0620B-000 |
from US $0.76 |
||
|
24
|
24
17857-77E00-000 HOSE,WATER HEAD,RH27A; 2005-05-01~2006-06-01 |
17857-77E00-000 |
from US $11.18 |
||
|
25
|
25
17858-77E00-000 HOSE,WATER HEAD,LH27A; 2005-05-01~2006-06-01 |
17858-77E00-000 |
from US $7.97 |
||
|
26
|
26
09401-10409-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-10409-000 |
from US $1.12 |
||
|
27
|
27
17871-66J00-000 HOSE,HEATER INLETH27A; 2005-05-01~2006-06-01 |
17871-66J00-000 |
from US $12.20 |
||
|
28
|
28
17872-66J00-000 HOSE,HEATER OUTLETH27A; 2005-05-01~2006-06-01 |
17872-66J00-000 |
from US $13.91 |
||
|
29
|
29
17889-77EA1-000 O-RING,HTR PIPEH27A; 2005-05-01~2006-06-01 |
17889-77EA1-000 |
from US $2.14 |
||
|
30
|
30
17880-66J00-000 PIPE,HEATER OUTLETH27A; 2005-05-01~2006-06-01 |
17880-66J00-000 |
from US $28.64 |
||
|
31
|
31
01550-06123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0612B-000 BOLTBolt, clamp H27A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
31
|
31
01550-0612A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
09401-21405-000 CLIPH27A; 2005-05-01~2006-06-01 |
09401-21405-000 |
US $1.60 |
||
|
33
|
33
01550-08123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0812B-000 BoltPlug, drain H27A; 2005-05-01~2006-06-01 |
01550-0812B-000 |
from US $0.96 |
||
|
33
|
33
01550-0812A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
34
|
34
13650-73H00-000 Sensor,water TempH27A; 2005-05-01~2006-06-01 |
13650-73H00-000 |
from US $28.19 |
||
