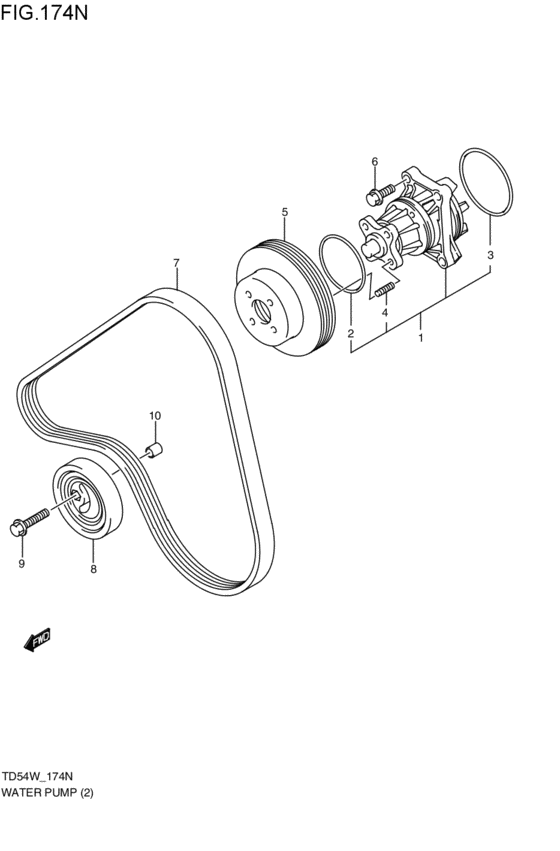

water pump (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-66810-000
Pump set,water
H27A; 2005-05-01~2006-06-01 |
17400-66810-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-66811-000 PUMP SET,WATERH27A; 2005-05-01~2006-06-01 |
17400-66811-000 |
US $133.58 |
||
|
2
|
2
09280-62003-000 O RING(D:3.5,ID:60.7)H27A; 2005-05-01~2006-06-01 |
09280-62003-000 |
from US $3.42 |
||
|
3
|
3
09280-71003-000 O RING(D:3.5,ID:70)H27A; 2005-05-01~2006-06-01 |
09280-71003-000 |
from US $11.34 |
||
|
4
|
4
01550-08303-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover H27A; 2005-05-01~2006-06-01 |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
17511-85FA1-000 PULLEY,WATER PUMPH27A; 2005-05-01~2006-06-01 |
17511-85FA1-000 |
US $89.60 |
||
|
6
|
6
01550-08123-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain H27A; 2005-05-01~2006-06-01 |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 BOLTH27A; 2005-05-01~2006-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
17521-66J00-000
BELT,WATER PUMP 4PK950
H27A; 2005-05-01~2006-06-01 |
17521-66J00-000 |
— | ||
|
8
|
8
17540-65H01-000
テンショナアッシ,ウォータポンプベルト
H27A; 2005-05-01~2005-05-01 |
17540-65H01-000 |
— | ||
| replacement | |||||
|
8
|
8
17540-66J00-000 TENSIONER,WATER PUMP BELTH27A; 2005-05-01~2005-05-01 |
17540-66J00-000 |
from US $99.11 |
||
|
8
|
8
17540-66J00-000 TENSIONER,WATER PUMP BELTH27A; 2005-05-01~2006-06-01 |
17540-66J00-000 |
from US $99.11 |
||
|
9
|
9
17545-65H00-000 BOLT,BELT TENSIONERH27A; 2005-05-01~2006-06-01 |
17545-65H00-000 |
US $1.60 |
||
|
10
|
10
04211-11129-000 PINH27A; 2005-05-01~2006-06-01 |
04211-11129-000 |
from US $0.95 |
||
