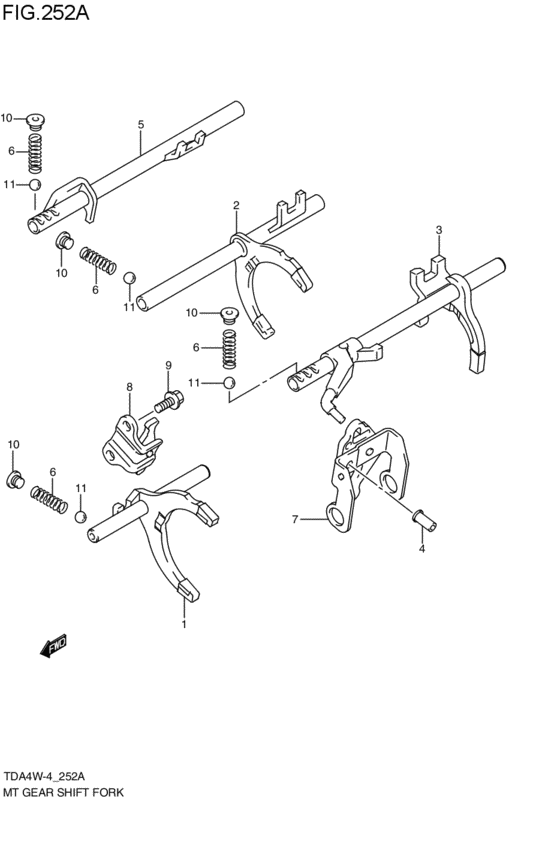

mt - gearlever fork (MT; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XG
- esp
- ESP-N
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25210-84A02-000 FORK ASSY,LOW SPEED GEAR SHIFTMT; 2010-01-01~ |
25210-84A02-000 |
from US $52.36 |
||
|
2
|
2
25220-84A21-000 FORK ASSY,HIGH SPEED GR SHIFTMT; 2010-01-01~ |
25220-84A21-000 |
from US $36.72 |
||
|
3
|
3
25230-84A20-000 FORK ASSY,5TH&REV GEAR SHIFTMT; 2010-01-01~ |
25230-84A20-000 |
from US $70.07 |
||
|
4
|
4
25250-77A00-000 LOCATINGMT; 2010-01-01~ |
25250-77A00-000 |
US $6.29 |
||
|
5
|
5
25410-84A20-000 SHAFT,LOW SPEED GEAR SHFMT; 2010-01-01~ |
25410-84A20-000 |
US $56.67 |
||
|
6
|
6
25415-84A00-000 SPRING,GEAR SHIFT LOCATINGMT; 2010-01-01~ |
25415-84A00-000 |
US $2.76 |
||
|
7
|
7
25460-84A00-000 LEVER,REV GEAR SHFMT; 2010-01-01~ |
25460-84A00-000 |
US $25.09 |
||
|
8
|
8
25470-84A02-000 LEVER,LOW GR SHF INVERSEMT; 2010-01-01~ |
25470-84A02-000 |
from US $12.31 |
||
|
9
|
9
09103-08266-000 BOLT(8X20)Bolt, lower MT; 2010-01-01~ |
09103-08266-000 |
from US $0.91 |
||
|
10
|
10
09248-12005-000 PLUG,M12MT; 2010-01-01~ |
09248-12005-000 |
from US $1.89 |
||
|
11
|
11
06111-12004-000 BALLMT; 2010-01-01~ |
06111-12004-000 |
from US $1.12 |
