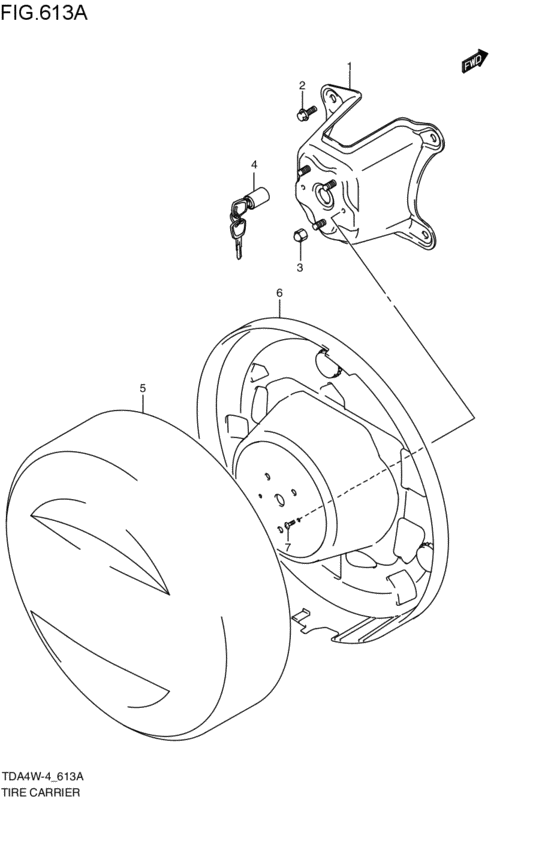

spare tire carrier (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGN
- esp
- ESP-N
- audio
- NAVI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83961-65J00-000
CARRIER,SPARE TIRE
2010-01-01~ |
83961-65J00-000 |
— | ||
|
2
|
2
01551-1025A-000 Bolt2010-01-01~ |
01551-1025A-000 |
US $1.12 |
||
|
3
|
3
09140-12042-000 NUT2010-01-01~ |
09140-12042-000 |
from US $1.33 |
||
|
4
|
4
83900-76820-000 KEY ASSY,SPARE TIRE NUT LOCK2010-01-01~ |
83900-76820-000 |
US $88.36 |
||
|
5
|
5
72821-65J00-ZJ3 COVER,SPARE TIRE,OUTER2010-01-01~ |
72821-65J00-ZJ3 |
from US $537.55 |
||
|
5
|
5
72821-65J00-ZMA
COVER,SPARE TIRE OUTER
2010-01-01~ |
72821-65J00-ZMA |
— | ||
|
5
|
5
72821-65J00-Z2S
COVER,SPARE TIRE OTR(SILVER)
2010-01-01~ |
72821-65J00-Z2S |
— | ||
|
5
|
5
72821-65J00-Z7T
COVER,SPARE TIRE OUTER
2010-01-01~ |
72821-65J00-Z7T |
— | ||
|
6
|
6
72825-65J00-000 COVER,SPARE TIRE INNER2010-01-01~ |
72825-65J00-000 |
US $280.58 |
||
|
7
|
7
02142-0412A-000 SCREW2010-01-01~ |
02142-0412A-000 |
from US $2.04 |
