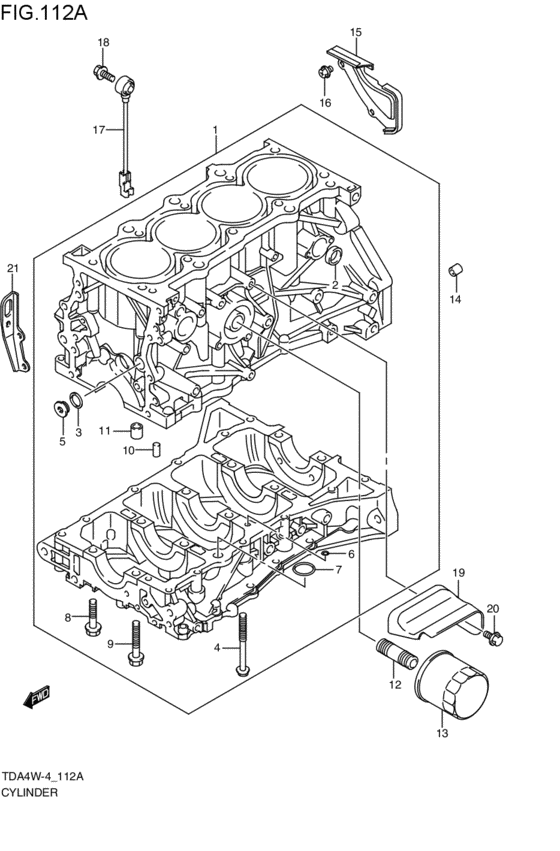

Cylinder (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-78K01-000
Block assy, cylinder
2010-01-01~ |
11200-78K01-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-78K02-X12 BLOCK ASSY, CYLINDER J24B2010-01-01~ |
11200-78K02-X12 |
US $3,121.61 |
||
|
2
|
2
09241-30010-000 PLUG2010-01-01~ |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
11216-77E00-000 GASKET,M18 PLUG2010-01-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
4
|
4
11261-78K00-000 BOLT,CRANKCASE2010-01-01~ |
11261-78K00-000 |
from US $2.88 |
||
|
5
|
5
09248-18011-000 PLUG(18X8)Plug, oil gallery 2010-01-01~ |
09248-18011-000 |
from US $2.88 |
||
|
6
|
6
09280-10016-000 O RING(D:1.9,ID:9.8)O ring 2010-01-01~ |
09280-10016-000 |
from US $1.52 |
||
|
7
|
7
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) 2010-01-01~ |
09280-22020-000 |
from US $1.60 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder 2010-01-01~ |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
01550-0880A-000 BOLT2010-01-01~ |
01550-0880A-000 |
from US $1.76 |
||
|
10
|
10
04211-09109-000 PINKnock pin 2010-01-01~ |
04211-09109-000 |
from US $0.96 |
||
|
11
|
11
04211-13189-000 PIN2010-01-01~ |
04211-13189-000 |
from US $1.19 |
||
|
12
|
12
11241-69G01-000
Stand,oil filter
2010-01-01~ |
11241-69G01-000 |
— | ||
| replacement | |||||
|
12
|
12
11241-69G02-000 STAND,OIL FILTER2010-01-01~ |
11241-69G02-000 |
from US $8.37 |
||
|
13
|
13
16510-61A30-000
Filter assy,oil
WAKO; 2010-01-01~ |
16510-61A30-000 |
— | ||
| replacement | |||||
|
13
|
13
16510-61A32-000 OIL FILTER, WAKOWAKO; 2010-01-01~ |
16510-61A32-000 |
from US $18.64 |
||
|
14
|
14
09202-08004-000 PIN(8X23)2010-01-01~ |
09202-08004-000 |
from US $1.53 |
||
|
15
|
15
11320-78K00-000 PLATE,CLUTCH HSG LOWER2010-01-01~ |
11320-78K00-000 |
US $8.06 |
||
|
16
|
16
02162-0610A-000 SCREW2010-01-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
17
|
17
18640-78K00-000 SENSOR ASSY,KNOCK2010-01-01~ |
18640-78K00-000 |
from US $92.72 |
||
|
18
|
18
01550-0830A-000 BOLTBolt, mount oil seal cover 2010-01-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
19
|
19
16533-78K00-000 COVER,OIL FILTER2010-01-01~ |
16533-78K00-000 |
US $11.33 |
||
|
20
|
20
01550-0816A-000 BOLTBolt, rear 2010-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
21
|
21
11851-78K10-000 HOOK,ENGINE2010-01-01~ |
11851-78K10-000 |
US $6.40 |
||
