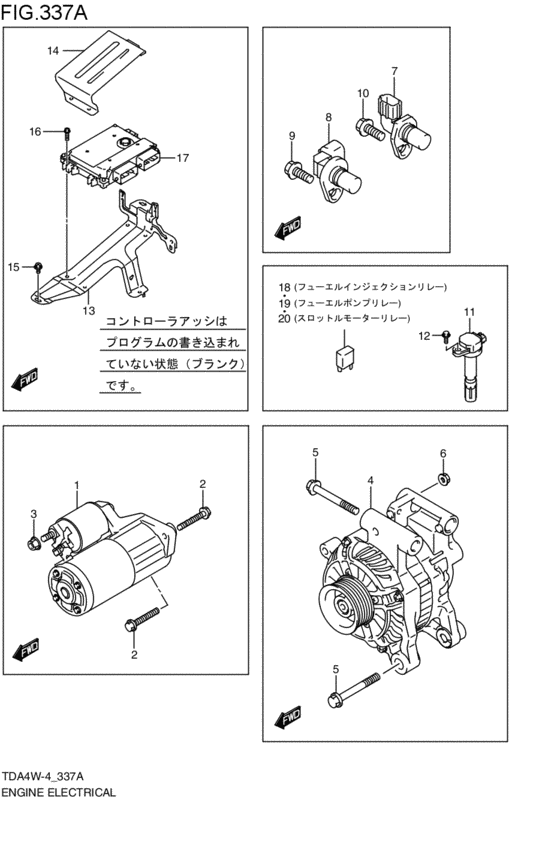

engine electrical (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-78K00-000
MOTOR ASSY,STARTING
2010-01-01~ |
31100-78K00-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-78K01-000 Motor Assy,starting2010-01-01~ |
31100-78K01-000 |
US $1,465.60 |
||
|
2
|
2
01550-1085A-000 BOLTMT; 2010-01-01~ |
01550-1085A-000 |
US $1.76 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft 2010-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
31400-78K10-000
Generator assy
2010-01-01~ |
31400-78K10-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-78K13-000 GENERATOR ASSY2010-01-01~ |
31400-78K13-000 |
US $693.44 |
||
|
5
|
5
09103-10402-000 BOLT(10X95)2010-01-01~ |
09103-10402-000 |
US $27.20 |
||
|
6
|
6
08316-1008A-000 NUTNut, idle gear shaft 2010-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
33220-51K00-000
SENSOR ASSY,POSITION
2010-01-01~ |
33220-51K00-000 |
— | ||
| replacement | |||||
|
7
|
7
33220-50M00-000 SENSOR ASSY,POSITION2010-01-01~ |
33220-50M00-000 |
US $114 |
||
|
8
|
8
33220-63J00-000
SENSOR ASSY,POSITION
2010-01-01~ |
33220-63J00-000 |
— | ||
| replacement | |||||
|
8
|
8
33220-64L20-000 SENSOR ASSY, CRANK POSITION2010-01-01~ |
33220-64L20-000 |
US $81.60 |
||
|
9
|
9
09103-06283-000 BOLT(6X16)2010-01-01~ |
09103-06283-000 |
from US $4.37 |
||
|
10
|
10
01550-0616A-000 BOLT2010-01-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
11
|
11
33400-51K20-000
Coil assy,ignition
2010-01-01~ |
33400-51K20-000 |
— | ||
| replacement | |||||
|
11
|
11
33400-51K40-000
COIL ASSY,IGNITION
2010-01-01~ |
33400-51K40-000 |
— | ||
|
12
|
12
09135-06024-000 BOLT(6X23)2010-01-01~ |
09135-06024-000 |
US $12.50 |
||
|
13
|
13
33924-65J12-000 BRACKET,EPI CONT2010-01-01~ |
33924-65J12-000 |
US $19.50 |
||
|
14
|
14
33924-65J20-000 BRACKET,EPI CONT2010-01-01~ |
33924-65J20-000 |
US $8.72 |
||
|
15
|
15
02162-0612D-000 SCREW2010-01-01~ |
02162-0612D-000 |
US $11.80 |
||
|
16
|
16
02162-0625A-000 SCREW2010-01-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
17
|
17
33910-78K00-000 BASE ASSY,EPI CONT2010-01-01~ |
33910-78K00-000 |
US $2,184 |
||
|
18
|
18
38860-76F01-000 RELAY ASSYRelay, starting motor フユ-エル インジエクシヨン リレ-; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
19
|
19
38860-76F01-000 RELAY ASSYRelay, starting motor フユ-エル ポンプ リレ-; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
20
|
20
38860-76F01-000 RELAY ASSYRelay, starting motor スロツトルモ-タ リレ-; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
