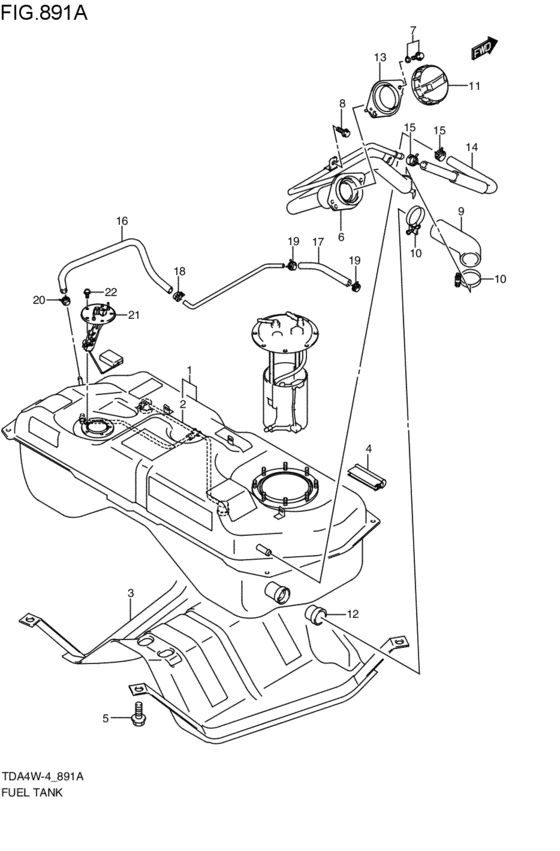

fuel tank (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-77820-000 TANK ASSY,FUEL2010-01-01~ |
89101-77820-000 |
US $787.20 |
||
|
2
|
2
89401-65J00-000 VALVE ASSY,FUEL EVAP2010-01-01~ |
89401-65J00-000 |
US $114.08 |
||
|
3
|
3
89300-77K00-000 PROTECTOR,FUEL2010-01-01~ |
89300-77K00-000 |
US $266.80 |
||
|
4
|
4
89445-60G00-000 PROTECTOR,TANK FLANGE2010-01-01~ |
89445-60G00-000 |
US $6.48 |
||
|
5
|
5
09118-10073-000 BOLT(10X30)2010-01-01~ |
09118-10073-000 |
US $1.44 |
||
|
6
|
6
89201-65J11-000 NECK ASSY,FUEL FILLER2010-01-01~ |
89201-65J11-000 |
US $259.20 |
||
|
7
|
7
09116-05014-000 BOLT(5X20)2010-01-01~ |
09116-05014-000 |
US $1.82 |
||
|
8
|
8
09103-06265-000 BOLT(6X12)2010-01-01~ |
09103-06265-000 |
US $1.28 |
||
|
9
|
9
89241-65J00-000 HOSE,FUEL TANK FILLER2010-01-01~ |
89241-65J00-000 |
US $44 |
||
|
10
|
10
09400-45411-000 CLAMP2010-01-01~ |
09400-45411-000 |
US $28.70 |
||
|
11
|
11
89260-77K01-000 CAP ASSY,FUEL FILLER2010-01-01~ |
89260-77K01-000 |
from US $29.93 |
||
|
12
|
12
89270-75F00-000 VALVE,FUEL TANK INLET2010-01-01~ |
89270-75F00-000 |
US $7.90 |
||
|
13
|
13
89285-58J00-000 PACKING,FUEL FILLER2010-01-01~ |
89285-58J00-000 |
US $6.24 |
||
|
14
|
14
89290-65J00-000 HOSE,FUEL TANK BREATHER2010-01-01~ |
89290-65J00-000 |
US $13.14 |
||
|
15
|
15
09401-16403-000 CLIPClip, 2nd air hose no.2 2010-01-01~ |
09401-16403-000 |
from US $3.86 |
||
|
16
|
16
89442-67J00-000 HOSE,EVAP2010-01-01~ |
89442-67J00-000 |
US $18.18 |
||
|
17
|
17
09355-56128-600 HOSE(5.6X12.4X600)L:600>120; 2010-01-01~ |
09355-56128-600 |
US $8.64 |
||
|
18
|
18
09401-11415-000 CLIP2010-01-01~ |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09401-11415-000 CLIP2010-01-01~ |
09401-11415-000 |
from US $1.06 |
||
|
20
|
20
09401-12404-000 CLIPClip 2010-01-01~ |
09401-12404-000 |
from US $1.52 |
||
|
21
|
21
34810-65J00-000 GAUGE ASSY,FUEL LEVEL2010-01-01~ |
34810-65J00-000 |
from US $79.99 |
||
|
22
|
22
09136-05045-000 SCREW(5X10)2010-01-01~ |
09136-05045-000 |
US $0.96 |
