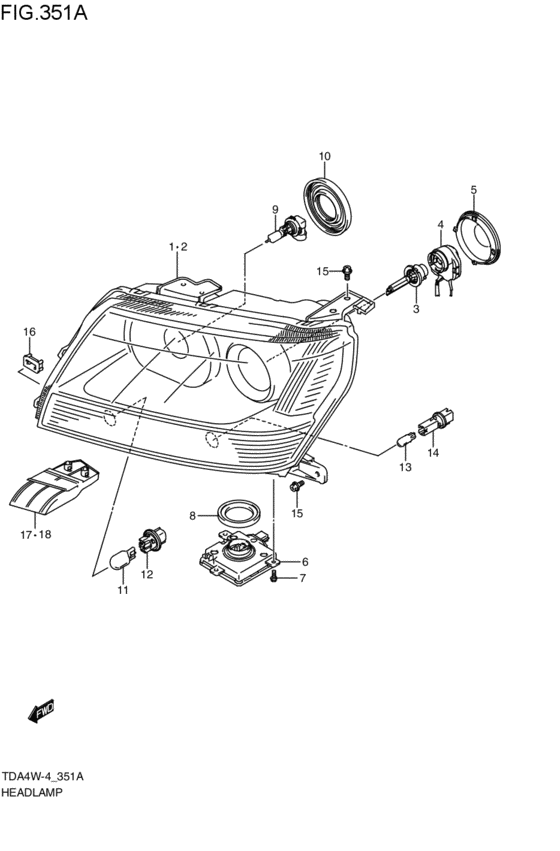

head lamp (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-65JC0-000
Unit,headlamp rh
2010-01-01~ |
35120-65JC0-000 |
— | ||
| replacement | |||||
|
1
|
1
35120-65JC1-000 UNIT,HEADLAMP,R2010-01-01~ |
35120-65JC1-000 |
US $731.12 |
||
|
2
|
2
35320-65JC0-000
Unit,headlamp lh
2010-01-01~ |
35320-65JC0-000 |
— | ||
| replacement | |||||
|
2
|
2
35320-65JC1-000 UNIT,HEADLAMP,L2010-01-01~ |
35320-65JC1-000 |
from US $645.91 |
||
|
3
|
3
09471-12208-000 BULB(12V35W/D2S)2010-01-01~ |
09471-12208-000 |
from US $297.16 |
||
|
4
|
4
35262-65J00-000 IGNITOR2010-01-01~ |
35262-65J00-000 |
from US $105.86 |
||
|
5
|
5
35267-65J00-000 COVER,BACK2010-01-01~ |
35267-65J00-000 |
US $19.50 |
||
|
6
|
6
35261-65J00-000 BALLAST ASSY2010-01-01~ |
35261-65J00-000 |
from US $294.53 |
||
|
7
|
7
35265-84F00-000 Bolt2010-01-01~ |
35265-84F00-000 |
US $4.16 |
||
|
8
|
8
38454-58J00-000 GASKET,BALLAST2010-01-01~ |
38454-58J00-000 |
US $8.98 |
||
|
9
|
9
09471-12151-000 BULB(12V60W,HB3,#9005)Bulb (12v,60w,hb3,p20d) 2010-01-01~ |
09471-12151-000 |
from US $26.58 |
||
|
10
|
10
35179-76F10-000 COVER,SOCKET2010-01-01~ |
35179-76F10-000 |
from US $5.27 |
||
|
11
|
11
09471-12202-000 BULB(12V21W/WY21W,AMBER)2010-01-01~ |
09471-12202-000 |
from US $5.76 |
||
|
12
|
12
35118-75H20-000 SOCKET,TURN SIGNAL2010-01-01~ |
35118-75H20-000 |
from US $7.88 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
2010-01-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2010-01-01~ |
09471-12216-000 |
from US $2.84 |
||
|
14
|
14
35118-76F00-000 SOCKET,POSITION LAMP2010-01-01~ |
35118-76F00-000 |
from US $8.71 |
||
|
15
|
15
09122-76006-000 SCREW(6X16)2010-01-01~ |
09122-76006-000 |
from US $0.80 |
||
|
16
|
16
35153-73H00-000
Grommet,headlamp
2010-01-01~ |
35153-73H00-000 |
— | ||
| replacement | |||||
|
16
|
16
35153-73H01-000 GROMMET,HEADLAMP2010-01-01~ |
35153-73H01-000 |
from US $1.76 |
||
|
17
|
17
35130-65J00-000 HOLDER ASSY,HEADLAMP UNIT,R2010-01-01~ |
35130-65J00-000 |
from US $6.73 |
||
|
18
|
18
35330-65J00-000 HOLDER ASSY,HEADLAMP UNIT,L2010-01-01~ |
35330-65J00-000 |
from US $5.72 |
||
