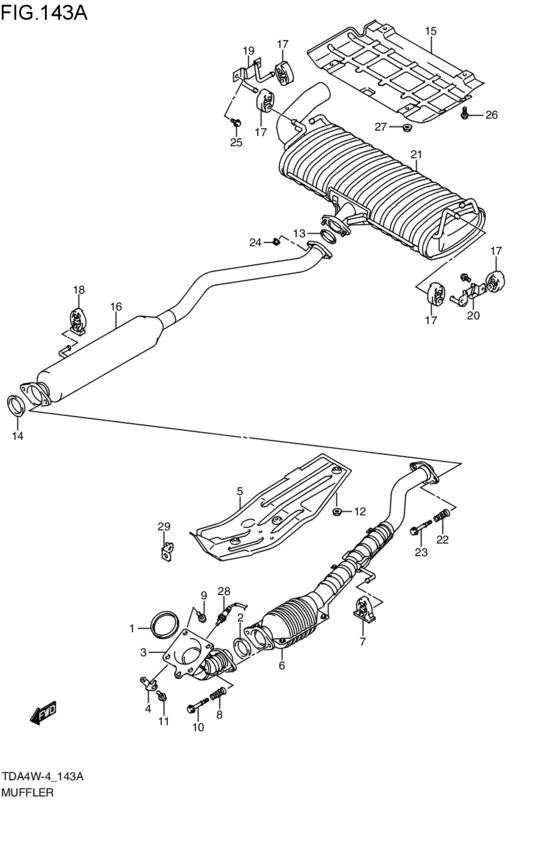

muffler (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-70H00-000 GASKET,EXH MANF2010-01-01~ |
14181-70H00-000 |
US $12.46 |
||
|
2
|
2
14183-65D00-000 RING,SEAL EXH PIPE2010-01-01~ |
14183-65D00-000 |
US $20.80 |
||
|
3
|
3
14190-78K00-000
Pipe comp,exh no.1
2010-01-01~ |
14190-78K00-000 |
— | ||
| replacement | |||||
|
3
|
3
14190-78K01-000 PIPE,EXH NO.12010-01-01~ |
14190-78K01-000 |
US $363.20 |
||
|
4
|
4
14221-78K00-000 BRACKET,EXH PIPE2010-01-01~ |
14221-78K00-000 |
US $6.18 |
||
|
5
|
5
14231-78K10-000 PANEL,HEAT PROTECTOR2010-01-01~ |
14231-78K10-000 |
US $59.25 |
||
|
6
|
6
14250-78K00-H02
Pipe,exh no.2
2010-01-01~ |
14250-78K00-H02 |
— | ||
| replacement | |||||
|
6
|
6
14250-78K02-H02 PIPE,EXH NO.22010-01-01~ |
14250-78K02-H02 |
US $809.60 |
||
|
7
|
7
14281-65J11-000 MOUNTING,MUF2010-01-01~ |
14281-65J11-000 |
US $38.40 |
||
|
8
|
8
14492-67D00-000 SPRING,EXH PIPE2010-01-01~ |
14492-67D00-000 |
US $8.64 |
||
|
9
|
9
09103-10324-000 BOLT(10X20)2010-01-01~ |
09103-10324-000 |
US $2.24 |
||
|
10
|
10
09119-10041-000 BOLT(10X65)2010-01-01~ |
09119-10041-000 |
US $7.68 |
||
|
11
|
11
01550-1030A-000 BOLT2010-01-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
12
|
12
09159-06109-000 NUT2010-01-01~ |
09159-06109-000 |
US $14 |
||
|
13
|
13
14182-78K00-000 GASKET,MUFFLER2010-01-01~ |
14182-78K00-000 |
US $8.96 |
||
|
14
|
14
14183-52D00-000 RING,SEAL EXH PIPE2010-01-01~ |
14183-52D00-000 |
US $33.60 |
||
|
15
|
15
14231-78K01-000 PANEL,HEAT PROTECTOR REAR2010-01-01~ |
14231-78K01-000 |
US $25.58 |
||
|
16
|
16
14260-78K01-000 PIPE,EXH CENTER2010-01-01~ |
14260-78K01-000 |
US $1,902.32 |
||
|
17
|
17
14281-65J01-000 MOUNTING,MUF2010-01-01~ |
14281-65J01-000 |
US $21.60 |
||
|
18
|
18
14281-65J11-000 MOUNTING,MUF2010-01-01~ |
14281-65J11-000 |
US $38.40 |
||
|
19
|
19
14293-78K00-000
BRACKET,MUFFLER HANGER
2010-01-01~ |
14293-78K00-000 |
— | ||
|
20
|
20
14293-78K10-000 BRACKET,MUFFLER HANGER2010-01-01~ |
14293-78K10-000 |
US $22.05 |
||
|
21
|
21
14300-78K01-000
Muffler,exh
2010-01-01~ |
14300-78K01-000 |
— | ||
| replacement | |||||
|
21
|
21
14300-78K02-000 MUFFLER,EXH2010-01-01~ |
14300-78K02-000 |
US $3,084.16 |
||
|
22
|
22
14492-67D00-000 SPRING,EXH PIPE2010-01-01~ |
14492-67D00-000 |
US $8.64 |
||
|
23
|
23
09119-10041-000 BOLT(10X65)2010-01-01~ |
09119-10041-000 |
US $7.68 |
||
|
24
|
24
09159-10102-000 NUT2010-01-01~ |
09159-10102-000 |
US $1.28 |
||
|
25
|
25
01550-0816A-000 BOLTBolt, rear 2010-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket 2010-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
08316-1006A-000 NUT2010-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
28
|
28
18213-78K10-000 SENSOR,HEATED OXYGEN REAR2010-01-01~ |
18213-78K10-000 |
US $312 |
||
|
29
|
29
18214-78K00-000 BRACKET,OXYGEN SENSOR2010-01-01~ |
18214-78K00-000 |
US $7.84 |
||
