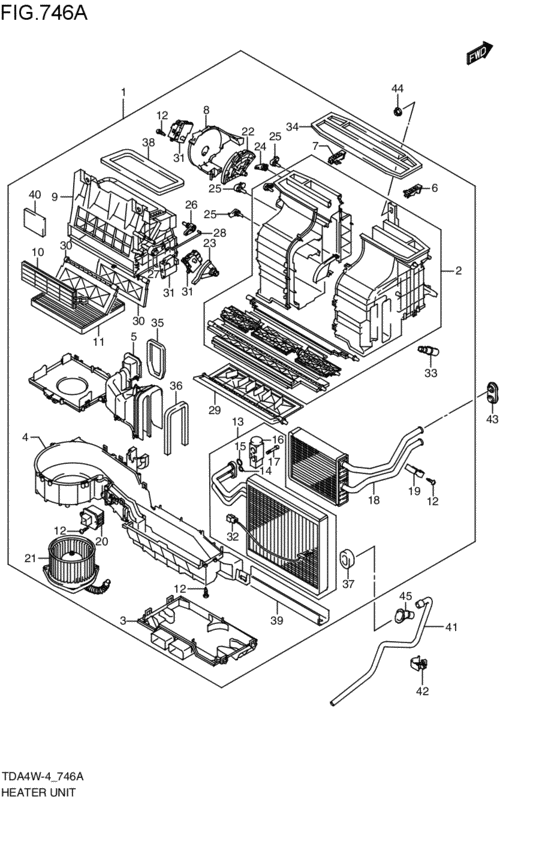

ヒ - タユニット (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-76K61-000
Heater unit
2010-01-01~ |
74100-76K61-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-76K25-000 HVAC UNIT2010-01-01~ |
74100-76K25-000 |
US $1,119.36 |
||
|
2
|
2
74111-64823-000 CASE SET,HTR R&H2010-01-01~ |
74111-64823-000 |
US $172.22 |
||
|
3
|
3
74114-64J80-000 CASE,FOOT2010-01-01~ |
74114-64J80-000 |
US $17.66 |
||
|
4
|
4
74115-64J81-000
Casing,lower
2010-01-01~ |
74115-64J81-000 |
— | ||
| replacement | |||||
|
4
|
4
74115-64J83-000 CASING,LOWER2010-01-01~ |
74115-64J83-000 |
US $98.40 |
||
|
5
|
5
74113-64J81-000 CASING,UPR2010-01-01~ |
74113-64J81-000 |
US $48.58 |
||
|
6
|
6
74192-64J00-000 PLATE,R2010-01-01~ |
74192-64J00-000 |
US $4.01 |
||
|
7
|
7
74191-64J00-000 PLATE,L2010-01-01~ |
74191-64J00-000 |
US $4.01 |
||
|
8
|
8
74196-64J00-000 BRACKET2010-01-01~ |
74196-64J00-000 |
US $9.16 |
||
|
9
|
9
74211-64J80-000 BOX,INTK2010-01-01~ |
74211-64J80-000 |
US $90.16 |
||
|
10
|
10
74214-64J00-000 COVER,FILTER2010-01-01~ |
74214-64J00-000 |
US $12.14 |
||
|
11
|
11
95861-64J00-000
Filter,air
2010-01-01~ |
95861-64J00-000 |
— | ||
| replacement | |||||
|
11
|
11
95861-64J10-000 FILTER,AIR (CABIN)2010-01-01~ |
95861-64J10-000 |
US $38 |
||
|
12
|
12
03111-0416A-000 SCREW2010-01-01~ |
03111-0416A-000 |
US $0.80 |
||
|
13
|
13
95410-64J62-000 EVAPORATOR ASSY2010-01-01~ |
95410-64J62-000 |
US $400 |
||
|
14
|
14
95895-64J00-000 O-RING2010-01-01~ |
95895-64J00-000 |
US $1.82 |
||
|
15
|
15
95896-64J00-000 O-RING2010-01-01~ |
95896-64J00-000 |
US $1.98 |
||
|
16
|
16
95431-64J80-000 VALVE,EXPANSION2010-01-01~ |
95431-64J80-000 |
US $98.26 |
||
|
17
|
17
07130-0540A-000 BOLT2010-01-01~ |
07130-0540A-000 |
from US $0.91 |
||
|
18
|
18
74120-64J80-000
HEATER ASSY
2010-01-01~ |
74120-64J80-000 |
— | ||
|
19
|
19
74121-64J00-000 CLAMP,HTR2010-01-01~ |
74121-64J00-000 |
US $3.09 |
||
|
20
|
20
95626-64J00-000 TRANSISTOR,FAN CONTROL2010-01-01~ |
95626-64J00-000 |
US $96 |
||
|
21
|
21
74150-76K00-000
Fan,centrifugal
2010-01-01~ |
74150-76K00-000 |
— | ||
| replacement | |||||
|
21
|
21
74150-76K02-000 FAN,CENTRIFUGAL2010-01-01~ |
74150-76K02-000 |
US $338.56 |
||
|
22
|
22
74181-64J02-000 LEVER,MODE2010-01-01~ |
74181-64J02-000 |
US $9.16 |
||
|
23
|
23
74184-64J00-000 LEVER,AIR MXT2010-01-01~ |
74184-64J00-000 |
US $12.64 |
||
|
24
|
24
74182-64J01-000 LEVER,FACE2010-01-01~ |
74182-64J01-000 |
US $3.64 |
||
|
25
|
25
74183-64J02-000 LEVER2010-01-01~ |
74183-64J02-000 |
US $3.61 |
||
|
26
|
26
74282-64J01-000 LEVER,FRESH AIR FR2010-01-01~ |
74282-64J01-000 |
US $4.67 |
||
|
27
|
27
74281-64J01-000 LEVER,FRESH AIR RR2010-01-01~ |
74281-64J01-000 |
US $4.67 |
||
|
28
|
28
74283-64J00-000 ROD2010-01-01~ |
74283-64J00-000 |
US $4.67 |
||
|
29
|
29
74174-64J00-000 DAMPER,AIR MIXTURE2010-01-01~ |
74174-64J00-000 |
US $26.31 |
||
|
30
|
30
74271-64J00-000 DAMPER,FRESH AIR2010-01-01~ |
74271-64J00-000 |
US $15.97 |
||
|
31
|
31
95651-64J01-000 MOTOR,DC2010-01-01~ |
95651-64J01-000 |
US $102.40 |
||
|
32
|
32
95541-64J00-000 THERMISTOR2010-01-01~ |
95541-64J00-000 |
from US $11.57 |
||
|
33
|
33
95656-64J00-000 ASPIRATOR2010-01-01~ |
95656-64J00-000 |
US $10.78 |
||
|
34
|
34
74116-64J00-000 PACKING2010-01-01~ |
74116-64J00-000 |
US $13.73 |
||
|
35
|
35
74117-64J00-000 PACKING2010-01-01~ |
74117-64J00-000 |
US $4.42 |
||
|
36
|
36
74119-64J00-000 PACKING,UPPER CASING2010-01-01~ |
74119-64J00-000 |
US $4.27 |
||
|
37
|
37
74118-64J00-000
Packing,drain
2010-01-01~ |
74118-64J00-000 |
— | ||
| replacement | |||||
|
37
|
37
74118-64J01-000 PACKING,DRAIN2010-01-01~ |
74118-64J01-000 |
US $3.34 |
||
|
38
|
38
74221-64J00-000 PACKING,INTAKE BOX2010-01-01~ |
74221-64J00-000 |
US $6.96 |
||
|
39
|
39
95461-76K00-000 INSULATOR,DRAIN PAN2010-01-01~ |
95461-76K00-000 |
US $34.78 |
||
|
40
|
40
74223-76K00-000 PACKING2010-01-01~ |
74223-76K00-000 |
US $4.01 |
||
|
41
|
41
95482-76K00-000 HOSE,DRAIN,R2010-01-01~ |
95482-76K00-000 |
US $47.10 |
||
|
42
|
42
09403-13309-000 CLAMP2010-01-01~ |
09403-13309-000 |
US $2.13 |
||
|
43
|
43
74812-64J01-000 GROMMET,HTR2010-01-01~ |
74812-64J01-000 |
US $6.62 |
||
|
44
|
44
09159-06081-000 NUT2010-01-01~ |
09159-06081-000 |
US $12.50 |
||
|
45
|
45
95481-76K00-000 JOINT,DRAIN2010-01-01~ |
95481-76K00-000 |
US $7.84 |
||
