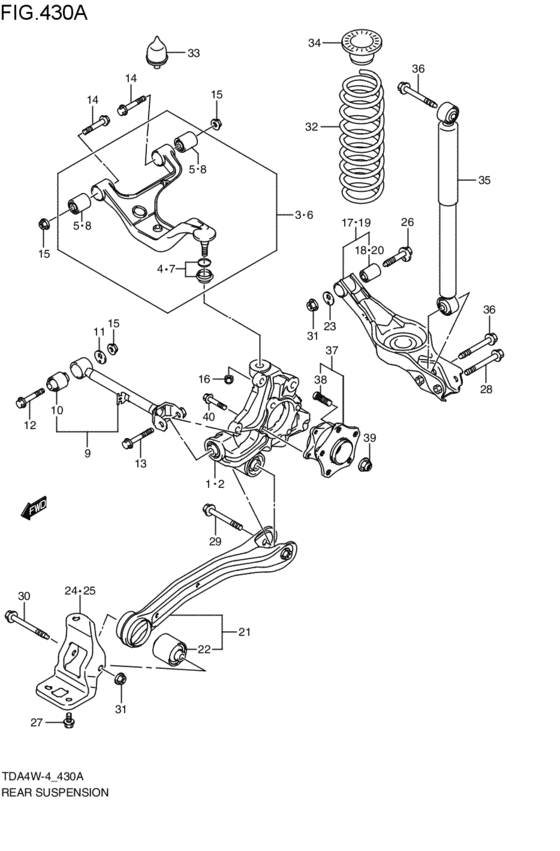

rear suspension (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-79K00-000 KNUCKLE ASSY,RR SPNSN,R2010-01-01~ |
46110-79K00-000 |
US $780.80 |
||
|
2
|
2
46150-79K00-000 KNUCKLE ASSY,RR SPNSN,L2010-01-01~ |
46150-79K00-000 |
US $780.80 |
||
|
3
|
3
46201-65J01-000 ARM ASSY,RR SPNSN UPR,R2010-01-01~ |
46201-65J01-000 |
US $423.70 |
||
|
4
|
4
45706-60A00-000
SEAL SET,SPNSN ARM
2010-01-01~ |
45706-60A00-000 |
— | ||
| replacements | |||||
|
4
|
4
45706-60A01-000
Seal Set,spnsn Arm
2010-01-01~ |
45706-60A01-000 |
— | ||
|
4
|
4
45700-60810-000 Seal Set,suspension Arm2010-01-01~ |
45700-60810-000 |
US $23.20 |
||
|
5
|
5
46231-65J00-000 BUSH,RR SPNSN UPPER ARM2010-01-01~ |
46231-65J00-000 |
US $33.60 |
||
|
6
|
6
46202-65J01-000 ARM ASSY,RR SPNSN UPR,L2010-01-01~ |
46202-65J01-000 |
US $423.70 |
||
|
7
|
7
45706-60A00-000
SEAL SET,SPNSN ARM
2010-01-01~ |
45706-60A00-000 |
— | ||
| replacements | |||||
|
7
|
7
45706-60A01-000
Seal Set,spnsn Arm
2010-01-01~ |
45706-60A01-000 |
— | ||
|
7
|
7
45700-60810-000 Seal Set,suspension Arm2010-01-01~ |
45700-60810-000 |
US $23.20 |
||
|
8
|
8
46231-65J00-000 BUSH,RR SPNSN UPPER ARM2010-01-01~ |
46231-65J00-000 |
US $33.60 |
||
|
9
|
9
46300-65J10-000 ROD ASSY,RR SPNSN CONTROL2010-01-01~ |
46300-65J10-000 |
US $151.20 |
||
|
10
|
10
46331-65J01-000 BUSH,RR SPNSN CONT ROD2010-01-01~ |
46331-65J01-000 |
US $39.20 |
||
|
11
|
11
46333-65J00-000 WASHER,RR SPNSN CONT ROD2010-01-01~ |
46333-65J00-000 |
US $2.72 |
||
|
12
|
12
46431-65J00-000 BOLT,RR SPNSN CONT ROD INNER2010-01-01~ |
46431-65J00-000 |
US $24 |
||
|
13
|
13
09103-14028-000 BOLT(14X87)2010-01-01~ |
09103-14028-000 |
US $9.28 |
||
|
14
|
14
09135-14015-000 BOLT(14X92)2010-01-01~ |
09135-14015-000 |
US $9.92 |
||
|
15
|
15
09159-14028-000 NUT2010-01-01~ |
09159-14028-000 |
US $2.24 |
||
|
16
|
16
09159-14029-000 NUT2010-01-01~ |
09159-14029-000 |
US $2.13 |
||
|
17
|
17
46205-65J01-000 ARM ASSY,RR SPNSN,LWR,R2010-01-01~ |
46205-65J01-000 |
US $340.80 |
||
|
18
|
18
46122-65J00-000 BUSH,RR SPNSN LATERAL LINK2010-01-01~ |
46122-65J00-000 |
US $35.20 |
||
|
19
|
19
46207-65J01-000 ARM ASSY,RR SPNSN,LWR,L2010-01-01~ |
46207-65J01-000 |
US $340.80 |
||
|
20
|
20
46122-65J00-000 BUSH,RR SPNSN LATERAL LINK2010-01-01~ |
46122-65J00-000 |
US $35.20 |
||
|
21
|
21
46305-65J00-000 ROD ASSY,RR SPNSN TRAILING2010-01-01~ |
46305-65J00-000 |
US $173.28 |
||
|
22
|
22
46371-65J00-000 BUSH,RR SPNSN TRAILING ROD2010-01-01~ |
46371-65J00-000 |
US $41.60 |
||
|
23
|
23
46333-65J00-000 WASHER,RR SPNSN CONT ROD2010-01-01~ |
46333-65J00-000 |
US $2.72 |
||
|
24
|
24
46381-65J00-000 BRACKET,RR TRLG MOUNT,R2010-01-01~ |
46381-65J00-000 |
US $58.40 |
||
|
25
|
25
46391-65J00-000 BRACKET,RR TRLG MOUNT,L2010-01-01~ |
46391-65J00-000 |
US $58.40 |
||
|
26
|
26
46431-65J00-000 BOLT,RR SPNSN CONT ROD INNER2010-01-01~ |
46431-65J00-000 |
US $24 |
||
|
27
|
27
09103-12105-000 BOLT(12X20)2010-01-01~ |
09103-12105-000 |
US $29.10 |
||
|
28
|
28
09103-14028-000 BOLT(14X87)2010-01-01~ |
09103-14028-000 |
US $9.28 |
||
|
29
|
29
09103-14028-000 BOLT(14X87)2010-01-01~ |
09103-14028-000 |
US $9.28 |
||
|
30
|
30
09103-14030-000 BOLT(14X108)2010-01-01~ |
09103-14030-000 |
US $10.40 |
||
|
31
|
31
09159-14028-000 NUT2010-01-01~ |
09159-14028-000 |
US $2.24 |
||
|
32
|
32
41311-65J00-000
SPRING,REAR COIL
2010-01-01~ |
41311-65J00-000 |
— | ||
| replacement | |||||
|
32
|
32
41311-65J01-000 SPRING,RR COIL2010-01-01~ |
41311-65J01-000 |
US $222.40 |
||
|
33
|
33
42150-65J00-000 STOPPER,RR BUMP2010-01-01~ |
42150-65J00-000 |
US $35.20 |
||
|
34
|
34
41341-65J00-000 SEAT,COIL SPRING RUBBER2010-01-01~ |
41341-65J00-000 |
US $21.60 |
||
|
35
|
35
41700-65J10-000
ABSORBER ASSY,RR SHOCK
2010-01-01~ |
41700-65J10-000 |
— | ||
| replacement | |||||
|
35
|
35
41700-65J11-000 Absorber Assy, Rr Shock2010-01-01~ |
41700-65J11-000 |
US $209.60 |
||
|
36
|
36
09103-12090-000 BOLT(12X55)2010-01-01~ |
09103-12090-000 |
US $3.04 |
||
|
37
|
37
43402-57L50-000
Hub assy,wheel
2010-01-01~ |
43402-57L50-000 |
— | ||
| replacement | |||||
|
37
|
37
43402-57L51-000 HUB ASSY,WHL2010-01-01~ |
43402-57L51-000 |
US $422.40 |
||
|
38
|
38
09119-12012-000 BOLT(12X38)2010-01-01~ |
09119-12012-000 |
US $2.72 |
||
|
39
|
39
43459-65J00-000 NUT,FR AXLE2010-01-01~ |
43459-65J00-000 |
from US $6.21 |
||
|
40
|
40
09103-10404-000 BOLT(10X50)2010-01-01~ |
09103-10404-000 |
US $2.88 |
||
