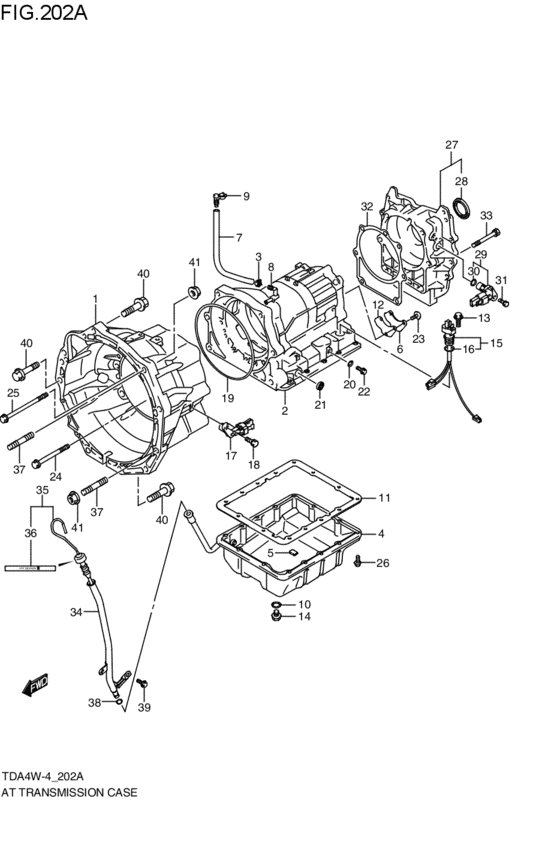

at - transmission case (AT; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- esp
- ESP-N
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-78K10-000 HOUSING,CONVERTERAT; 2010-01-01~ |
24711-78K10-000 |
US $1,269.36 |
||
|
2
|
2
24712-65J11-000 CASE,T/MAT; 2010-01-01~ |
24712-65J11-000 |
from US $1,692.79 |
||
|
3
|
3
24735-57B00-000 CLIP,BREATHER HOSEAT; 2010-01-01~ |
24735-57B00-000 |
US $5.76 |
||
|
4
|
4
24741-65J11-000 PAN,T/M OILAT; 2010-01-01~ |
24741-65J11-000 |
from US $170.53 |
||
|
5
|
5
24745-57B00-000 MAGNET,T/M OIL PANAT; 2010-01-01~ |
24745-57B00-000 |
US $5.60 |
||
|
6
|
6
24761-57B00-000 COVER,PLATEAT; 2010-01-01~ |
24761-57B00-000 |
US $12.51 |
||
|
7
|
7
24771-65D00-000 HOSE,BREATHER T/MAT; 2010-01-01~ |
24771-65D00-000 |
US $22.40 |
||
|
8
|
8
24772-57B00-000 ADAPTER,BREATHERAT; 2010-01-01~ |
24772-57B00-000 |
from US $14.29 |
||
|
9
|
9
24773-57B00-000 BREATHER,AT T/MAT; 2010-01-01~ |
24773-57B00-000 |
US $19.20 |
||
|
10
|
10
24781-57B00-000 GASKET,DRAIN PLUGAT; 2010-01-01~ |
24781-57B00-000 |
from US $1.52 |
||
|
11
|
11
24782-57B00-000 GASKET,T/M OIL PANAT; 2010-01-01~ |
24782-57B00-000 |
from US $29.41 |
||
|
12
|
12
24783-57B00-000 GASKET,OIL GALLERY COVERAT; 2010-01-01~ |
24783-57B00-000 |
US $5.85 |
||
|
13
|
13
24813-57B00-000 BoltAT; 2010-01-01~ |
24813-57B00-000 |
US $2.02 |
||
|
14
|
14
24823-79C10-000 PLUG,DRAINAT; 2010-01-01~ |
24823-79C10-000 |
from US $2.13 |
||
|
15
|
15
24892-65J10-000 HARNESS,SOLENOID WIREAT; 2010-01-01~ |
24892-65J10-000 |
US $412.80 |
||
|
16
|
16
29726-57B00-000 O-RING,SOL WIRE HARNAT; 2010-01-01~ |
29726-57B00-000 |
US $7.68 |
||
|
17
|
17
26141-65D00-000 SENSOR,INPUT SPEEDAT; 2010-01-01~ |
26141-65D00-000 |
US $129.20 |
||
|
18
|
18
26599-65D10-000 BOLT,INPUT SPEED SENSORAT; 2010-01-01~ |
26599-65D10-000 |
US $2.39 |
||
|
19
|
19
29736-57B00-000 O-RING,HSG T/M CASEAT; 2010-01-01~ |
29736-57B00-000 |
from US $22.05 |
||
|
20
|
20
29738-57B00-000 O-RINGAT; 2010-01-01~ |
29738-57B00-000 |
US $2.40 |
||
|
21
|
21
29793-57B00-000 SEAL,OIL LIPAT; 2010-01-01~ |
29793-57B00-000 |
from US $5.17 |
||
|
22
|
22
29849-57B00-000 PLUG,T/M CASEAT; 2010-01-01~ |
29849-57B00-000 |
US $5.89 |
||
|
23
|
23
29994-57B00-000 SCREW,OIL GALLERY COVERAT; 2010-01-01~ |
29994-57B00-000 |
US $6.18 |
||
|
24
|
24
29995-57B00-000 BOLT,HSG&CASE NO.2AT; 2010-01-01~ |
29995-57B00-000 |
US $15.46 |
||
|
25
|
25
29996-57B00-000 BOLT,HSG&CASE NO.1AT; 2010-01-01~ |
29996-57B00-000 |
US $13.98 |
||
|
26
|
26
09117-06002-000 BOLT(6X14)AT; 2010-01-01~ |
09117-06002-000 |
US $1.28 |
||
|
27
|
27
24710-65J10-000 CASE ASSY,ADAPTERAT; 2010-01-01~ |
24710-65J10-000 |
US $929.28 |
||
|
28
|
28
24771-54J30-000 SEAL,EXTENSION CASE OILAT; 2010-01-01~ |
24771-54J30-000 |
from US $15.96 |
||
|
29
|
29
24745-53J10-000 SENSOR, OUTPUT SPEEDAT; 2010-01-01~ |
24745-53J10-000 |
from US $49.40 |
||
|
30
|
30
24748-53J10-000 O-RING,SPEED SENSORAT; 2010-01-01~ |
24748-53J10-000 |
US $2.91 |
||
|
31
|
31
24746-53J10-000 BOLT,INPUT SPEED SENSORAT; 2010-01-01~ |
24746-53J10-000 |
US $2.74 |
||
|
32
|
32
24784-57B00-000 GASKET,ADAPTOR T/M CASEAT; 2010-01-01~ |
24784-57B00-000 |
from US $19.87 |
||
|
33
|
33
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3AT; 2010-01-01~ |
29972-57B00-000 |
US $16.34 |
||
|
34
|
34
22940-78K10-000 TUBE,OIL FILLERAT; 2010-01-01~ |
22940-78K10-000 |
US $63.84 |
||
|
35
|
35
22950-65J10-000 GAUGE,OILAT; 2010-01-01~ |
22950-65J10-000 |
US $52 |
||
|
36
|
36
24839-63J10-000 EMBLEM,ATFAT; 2010-01-01~ |
24839-63J10-000 |
US $1.60 |
||
|
37
|
37
09108-12012-000 BOLT,STUDAT; 2010-01-01~ |
09108-12012-000 |
from US $2.50 |
||
|
38
|
38
09280-10016-000 O RING(D:1.9,ID:9.8)O ring AT; 2010-01-01~ |
09280-10016-000 |
from US $1.52 |
||
|
39
|
39
01550-0816A-000 BOLTBolt, rear AT; 2010-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
40
|
40
01550-1255A-000 BoltAT; 2010-01-01~ |
01550-1255A-000 |
US $21.70 |
||
|
41
|
41
08316-1012A-000 NUTAT; 2010-01-01~ |
08316-1012A-000 |
from US $0.96 |
