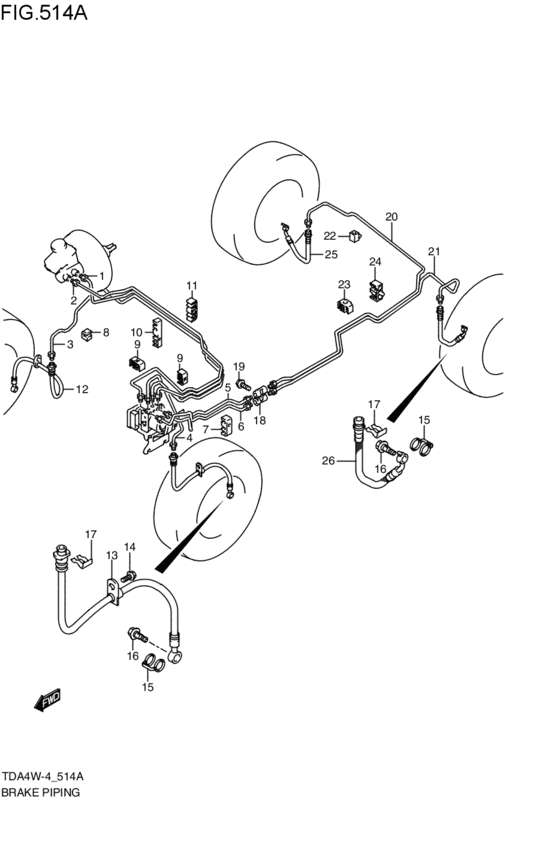

brakes piping (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- esp
- ESP-N
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-77K00-000 PIPE,MA PRI TO UNITESP-N; 2010-01-01~ |
51410-77K00-000 |
US $23.37 |
||
|
2
|
2
51420-77K00-000 PIPE,MA SEC TO UNITESP-N; 2010-01-01~ |
51420-77K00-000 |
US $23.18 |
||
|
3
|
3
51430-77K01-000 PIPE,UNIT TO FR BK HOSE2010-01-01~ |
51430-77K01-000 |
US $32.20 |
||
|
4
|
4
51440-77K00-000 PIPE,UNIT TO FR BK HOSE L2010-01-01~ |
51440-77K00-000 |
US $13.14 |
||
|
5
|
5
51450-77K00-000 PIPE,UNIT TO JOINT R2010-01-01~ |
51450-77K00-000 |
US $14.83 |
||
|
6
|
6
51460-77K00-000 PIPE,UNIT TO JOINT L2010-01-01~ |
51460-77K00-000 |
US $14.83 |
||
|
7
|
7
51751-65J40-000 CLAMP,BK PIPE FR SIDE2010-01-01~ |
51751-65J40-000 |
US $2.94 |
||
|
8
|
8
51751-65J50-000 CLAMP,BK PIPE FR SIDE2010-01-01~ |
51751-65J50-000 |
US $2.65 |
||
|
9
|
9
51751-75F00-000 CLAMP,BK PIPE MAIN FL DOUBLE2010-01-01~ |
51751-75F00-000 |
US $2.28 |
||
|
10
|
10
51751-65J60-000 CLAMP,BK PIPE FR SIDE2010-01-01~ |
51751-65J60-000 |
US $3.86 |
||
|
11
|
11
51751-82CB0-000 CLAMP,BRAKE PIPEESP-N; 2010-01-01~ |
51751-82CB0-000 |
US $2.80 |
||
|
12
|
12
51540-65J00-000 HOSE,FR BRAKE FLEXIBLE,R2010-01-01~ |
51540-65J00-000 |
from US $22.40 |
||
|
13
|
13
51550-65J00-000 HOSE,FR BRAKE FLEXIBLE,L2010-01-01~ |
51550-65J00-000 |
from US $22.40 |
||
|
14
|
14
01551-0820A-000 BOLT2010-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
15
|
15
51543-65J01-000 GASKET,FLEXIBLE HOSE2010-01-01~ |
51543-65J01-000 |
from US $4.16 |
||
|
16
|
16
09360-10026-000 Union bolt2010-01-01~ |
09360-10026-000 |
from US $1.85 |
||
|
17
|
17
09383-13003-000 E-RING2010-01-01~ |
09383-13003-000 |
from US $1.60 |
||
|
18
|
18
51630-82040-000 JOINT,4WAY BRAKE2010-01-01~ |
51630-82040-000 |
US $24 |
||
|
19
|
19
02162-0630A-000 SCREW2010-01-01~ |
02162-0630A-000 |
from US $2.82 |
||
|
20
|
20
51470-77K01-000 PIPE,JOINT TO RR BK HOSE R2010-01-01~ |
51470-77K01-000 |
US $38.27 |
||
|
21
|
21
51480-77K00-000 PIPE,JOINT TO RR BK HOSE L2010-01-01~ |
51480-77K00-000 |
US $37.54 |
||
|
22
|
22
51751-65J00-000 CLAMP,BK PIPE RR FL2010-01-01~ |
51751-65J00-000 |
US $3.24 |
||
|
23
|
23
51751-76G00-000 CLAMP,BK PIPE DASH2010-01-01~ |
51751-76G00-000 |
US $1.60 |
||
|
24
|
24
51761-62J20-000 CLAMP,BK PIPE 2 ON FRAME2010-01-01~ |
51761-62J20-000 |
US $1.92 |
||
|
25
|
25
51570-77K00-000 HOSE,RR DISC FLEXIBLE,R2010-01-01~ |
51570-77K00-000 |
from US $17.71 |
||
|
26
|
26
51580-77K00-000 HOSE,RR DISC FLEXIBLE,L2010-01-01~ |
51580-77K00-000 |
from US $20.57 |
