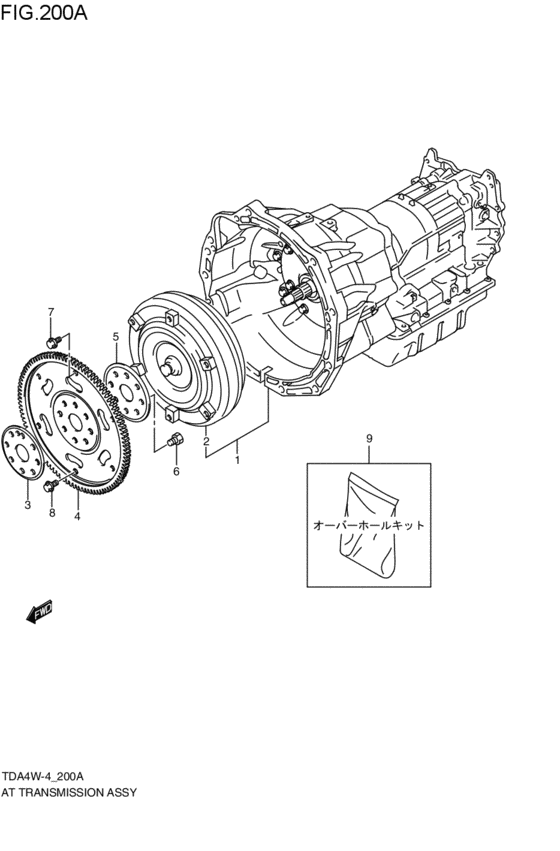

at - transmission assy (AT; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGN
- esp
- ESP-N
- audio
- NAVI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-78K10-000 T/M ASSY,AUTOMATICAT; 2010-01-01~ |
21000-78K10-000 |
US $7,781.28 |
||
|
1
|
1
21000-78K10-111
トランスミッションアッシ,オートマチック
リビルト; AT; 2010-01-01~ |
21000-78K10-111 |
— | ||
|
2
|
2
22700-78K10-000 CONVERTER,TORQUEAT; 2010-01-01~ |
22700-78K10-000 |
US $2,384 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FRAT; 2010-01-01~ |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-78K10-000 PLATE,TC DRIVEAT; 2010-01-01~ |
22620-78K10-000 |
from US $171.72 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RRAT; 2010-01-01~ |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5)AT; 2010-01-01~ |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-08507-000 BOLT(8X9.5)AT; 2010-01-01~ |
09103-08507-000 |
US $21.70 |
||
|
8
|
8
09103-08508-000 BOLT(8X9.5)AT; 2010-01-01~ |
09103-08508-000 |
from US $1.91 |
||
|
9
|
9
24700-65JV0-000 GASKET KIT,AT OVERHAULAT; 2010-01-01~ |
24700-65JV0-000 |
US $790.40 |
