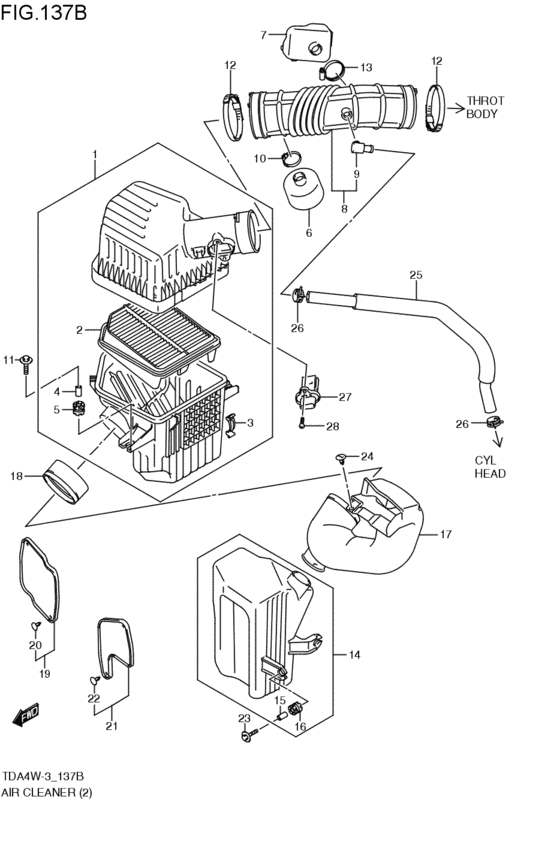

air cleaner (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-79K00-000 CLEANER ASSY,AIRN32A; 2008-04-01~ |
13700-79K00-000 |
from US $177.75 |
||
|
2
|
2
13780-78K00-000 ELEMENT,AIR CLEANERN32A; 2008-04-01~ |
13780-78K00-000 |
from US $53.20 |
||
|
3
|
3
13755-79K00-000 CLIP,AIR CLEANERN32A; 2008-04-01~ |
13755-79K00-000 |
US $6.08 |
||
|
4
|
4
13877-65D00-000 COLLAR,7.6X10X19.3N32A; 2008-04-01~ |
13877-65D00-000 |
from US $2.97 |
||
|
5
|
5
13878-65D00-000 CUSHION,12.5X22X19.5N32A; 2008-04-01~ |
13878-65D00-000 |
from US $2.70 |
||
|
6
|
6
13761-66J10-000 RESONATORN32A; 2008-04-01~ |
13761-66J10-000 |
from US $8.57 |
||
|
7
|
7
13761-79K10-000
RESONATOR
N32A; 2008-04-01~ |
13761-79K10-000 |
— | ||
|
8
|
8
13880-79K00-000 HOSE,AIR CLEANER OUTLETN32A; 2008-04-01~ |
13880-79K00-000 |
from US $40.64 |
||
|
9
|
9
09367-14004-000 PipeN32A; 2008-04-01~ |
09367-14004-000 |
from US $3.62 |
||
|
10
|
10
13891-65J00-000 CLAMP,RESONATOR NO.2N32A; 2008-04-01~ |
13891-65J00-000 |
US $5.96 |
||
|
11
|
11
09116-06172-000 BOLT(6X30)Bolt (6x30) N32A; 2008-04-01~ |
09116-06172-000 |
from US $1.01 |
||
|
12
|
12
09402-00512-000 CLAMPN32A; 2008-04-01~ |
09402-00512-000 |
from US $17.37 |
||
|
13
|
13
09402-38511-000 CLAMPN32A; 2008-04-01~ |
09402-38511-000 |
from US $4.96 |
||
|
14
|
14
13761-79K00-000 RESONATORN32A; 2008-04-01~ |
13761-79K00-000 |
from US $28.87 |
||
|
15
|
15
13877-65D00-000 COLLAR,7.6X10X19.3N32A; 2008-04-01~ |
13877-65D00-000 |
from US $2.97 |
||
|
16
|
16
13878-65D00-000 CUSHION,12.5X22X19.5N32A; 2008-04-01~ |
13878-65D00-000 |
from US $2.70 |
||
|
17
|
17
13820-79K00-000 PIPE,AIR CLNR SUCTIONN32A; 2008-04-01~ |
13820-79K00-000 |
from US $36.92 |
||
|
18
|
18
13825-79K00-000 JOINT,SUCTION PIPEN32A; 2008-04-01~ |
13825-79K00-000 |
from US $7.79 |
||
|
19
|
19
13840-65J00-000 COVER,LAMP SUPPORT HOLE,RN32A; 2008-04-01~ |
13840-65J00-000 |
from US $6.48 |
||
|
20
|
20
09409-04304-000 CLIPN32A; 2008-04-01~ |
09409-04304-000 |
from US $1.24 |
||
|
21
|
21
13850-65J00-000 COVER,LAMP SUPPORT HOLE,LN32A; 2008-04-01~ |
13850-65J00-000 |
from US $5.04 |
||
|
22
|
22
09409-04304-000 CLIPN32A; 2008-04-01~ |
09409-04304-000 |
from US $1.24 |
||
|
23
|
23
09116-06172-000 BOLT(6X30)Bolt (6x30) N32A; 2008-04-01~ |
09116-06172-000 |
from US $1.01 |
||
|
24
|
24
09409-06322-5PK CLIP(BLACK)Clip (black) N32A; 2008-04-01~ |
09409-06322-5PK |
from US $1.71 |
||
|
25
|
25
11191-79K00-000 HOSE,BREATHERN32A; 2008-04-01~ |
11191-79K00-000 |
US $35.14 |
||
|
26
|
26
09401-18404-000 CLIPN32A; 2008-04-01~ |
09401-18404-000 |
from US $1.26 |
||
|
27
|
27
13800-79K00-000 SENSOR ASSY,MAIN AIR FLOWN32A; 2008-04-01~ |
13800-79K00-000 |
from US $247.19 |
||
|
28
|
28
02112-0510A-000 SCREWN32A; 2008-04-01~ |
02112-0510A-000 |
from US $0.76 |
