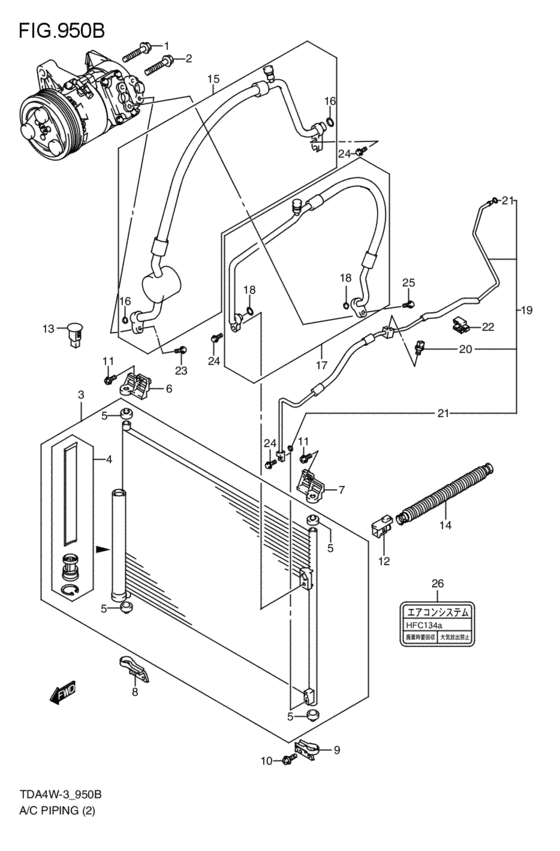

air-conditioner piping (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49135-65J00-000 BOLT,POWER STRG PUMP BRKT NO.1N32A; 2008-04-01~ |
49135-65J00-000 |
US $4.38 |
||
|
2
|
2
21342-84A00-000
BOLT,BLOCK&T/M CASE
N32A; 2008-04-01~ |
21342-84A00-000 |
— | ||
|
3
|
3
95310-64J00-000
CONDENSER ASSY
N32A; 2008-04-01~ |
95310-64J00-000 |
— | ||
| replacement | |||||
|
3
|
3
95310-64JA0-000 CONDENSER ASSYN32A; 2008-04-01~ |
95310-64JA0-000 |
from US $416 |
||
|
4
|
4
95339-58J10-000 DRYER KITN32A; 2008-04-01~ |
95339-58J10-000 |
from US $53.20 |
||
|
5
|
5
95851-64J00-000 BUSHN32A; 2008-04-01~ |
95851-64J00-000 |
from US $1.52 |
||
|
6
|
6
95391-64J00-000 BRACKET,COND UPPER,RN32A; 2008-04-01~ |
95391-64J00-000 |
from US $7.04 |
||
|
7
|
7
95391-64J10-000 BRACKET,COND UPPER,LN32A; 2008-04-01~ |
95391-64J10-000 |
from US $7.04 |
||
|
8
|
8
95392-64J00-000 BRACKET,COND LOWER,RN32A; 2008-04-01~ |
95392-64J00-000 |
from US $10.40 |
||
|
9
|
9
95392-64J10-000 BRACKET,COND LOWER,LN32A; 2008-04-01~ |
95392-64J10-000 |
from US $10.40 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
11
|
11
02162-0616A-000 SCREWN32A; 2008-04-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust N32A; 2008-04-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
12
|
12
95641-59J00-000 SENSOR,ROOM TEMPDENSO; N32A; 2008-04-01~ |
95641-59J00-000 |
US $154.98 |
||
|
13
|
13
95642-54J01-000 SENSOR,SUN LIGHTN32A; 2008-04-01~ |
95642-54J01-000 |
from US $32 |
||
|
14
|
14
95647-64J00-000 DUCT,ROOM TEMP SNSRN32A; 2008-04-01~ |
95647-64J00-000 |
from US $9.34 |
||
|
15
|
15
95710-76K20-000
HOSE,SUCTION
N32A; 2008-04-01~ |
95710-76K20-000 |
— | ||
|
16
|
16
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) N32A; 2008-04-01~ |
95896-50G00-000 |
from US $1.28 |
||
|
17
|
17
95720-76K10-000 HOSE,DISCHARGEN32A; 2008-04-01~ |
95720-76K10-000 |
from US $81.70 |
||
|
18
|
18
95895-50G00-000 O-RING,D:2.4 ID:10.8N32A; 2008-04-01~ |
95895-50G00-000 |
from US $1.28 |
||
|
19
|
19
95731-64J00-000 HOSE,LIQUIDN32A; 2008-04-01~ |
95731-64J00-000 |
US $144.62 |
||
|
20
|
20
95546-58J00-000 SENSOR,PRESSUREDENSO; N32A; 2008-04-01~ |
95546-58J00-000 |
from US $52.80 |
||
|
21
|
21
95891-50G00-000 O-RING,D:1.8 ID:6.7N32A; 2008-04-01~ |
95891-50G00-000 |
from US $1.12 |
||
|
22
|
22
09403-08331-000 CLAMPN32A; 2008-04-01~ |
09403-08331-000 |
from US $1.40 |
||
|
23
|
23
01550-0620A-000 BoltN32A; 2008-04-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
24
|
24
01550-0620A-000 BoltN32A; 2008-04-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
25
|
25
01550-0620A-000 BoltN32A; 2008-04-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
26
|
26
95956-84G20-000
ラベル,レフリジェラント
N32A; 2008-04-01~ |
95956-84G20-000 |
— | ||
| replacement | |||||
|
26
|
26
95956-84G21-000 LABEL,REFRIGERANTN32A; 2008-04-01~ |
95956-84G21-000 |
US $1.60 |
||
