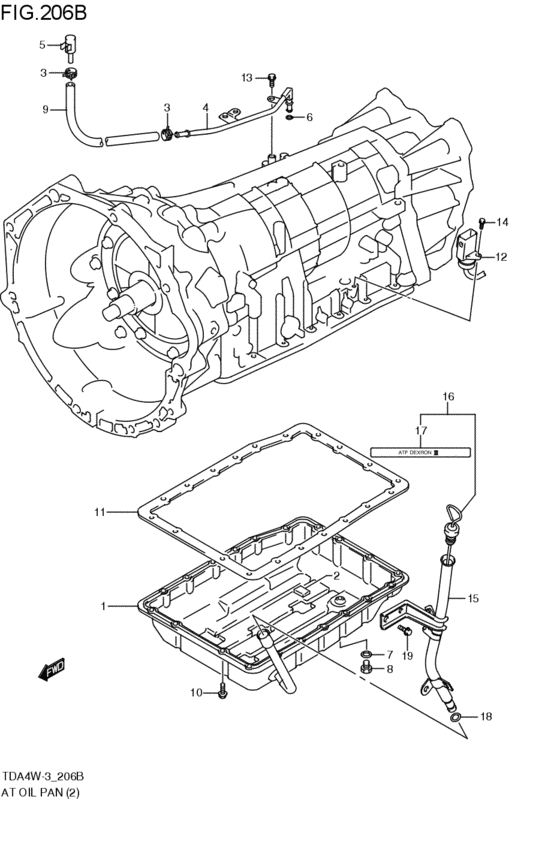

at - oil pan (AT:N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24760-79K10-000
PAN,T/M OIL
AT:N32A; 2008-04-01~ |
24760-79K10-000 |
— | ||
|
2
|
2
24745-57B00-000 MAGNET,T/M OIL PANAT:N32A; 2008-04-01~ |
24745-57B00-000 |
from US $5.06 |
||
|
3
|
3
24735-57B00-000 CLIP,BREATHER HOSEAT:N32A; 2008-04-01~ |
24735-57B00-000 |
from US $3.60 |
||
|
4
|
4
24772-54J10-000
UNION,T/M BREATHER
AT:N32A; 2008-04-01~ |
24772-54J10-000 |
— | ||
|
5
|
5
24773-57B00-000 BREATHER,AT T/MAT:N32A; 2008-04-01~ |
24773-57B00-000 |
from US $16.38 |
||
|
6
|
6
24774-54J10-000
O-RING,T/M BREATHER UNION
AT:N32A; 2008-04-01~ |
24774-54J10-000 |
— | ||
|
7
|
7
24781-79K10-000 GASKET,DRAIN PLUGAT:N32A; 2008-04-01~ |
24781-79K10-000 |
from US $3.78 |
||
|
8
|
8
24823-79K10-000 Plug,Oil DrainAT:N32A; 2008-04-01~ |
24823-79K10-000 |
from US $4.05 |
||
|
9
|
9
24856-79K10-000
HOSE,T/M BREATHER
AT:N32A; 2008-04-01~ |
24856-79K10-000 |
— | ||
|
10
|
10
24882-79C10-000 BOLT,T/M OIL PANAT:N32A; 2008-04-01~ |
24882-79C10-000 |
from US $1.08 |
||
|
11
|
11
24892-54J10-000 GASKET,T/M OIL PANAT:N32A; 2008-04-01~ |
24892-54J10-000 |
from US $24.68 |
||
|
12
|
12
24893-64J10-000 HARNESS,SOLENOID WIREAT:N32A; 2008-04-01~ |
24893-64J10-000 |
US $111.49 |
||
|
13
|
13
29969-57B00-000
BOLT,THROTTLE CABLE CLAMP
AT:N32A; 2008-04-01~ |
29969-57B00-000 |
— | ||
|
14
|
14
29989-57B00-000 BoltAT:N32A; 2008-04-01~ |
29989-57B00-000 |
from US $3.60 |
||
|
15
|
15
22940-79K10-000
TUBE,OIL FILLER
AT:N32A; 2008-04-01~ |
22940-79K10-000 |
— | ||
|
16
|
16
22950-64J10-000 GAUGE ASSY,OILAT:N32A; 2008-04-01~ |
22950-64J10-000 |
from US $31.16 |
||
|
17
|
17
24839-63J10-000 EMBLEM,ATFAT:N32A; 2008-04-01~ |
24839-63J10-000 |
from US $1.58 |
||
|
18
|
18
09280-10016-000 O RING(D:1.9,ID:9.8)O ring AT:N32A; 2008-04-01~ |
09280-10016-000 |
from US $1.52 |
||
|
19
|
19
01550-0816A-000 BoltBolt, rear AT:N32A; 2008-04-01~ |
01550-0816A-000 |
from US $0.91 |
