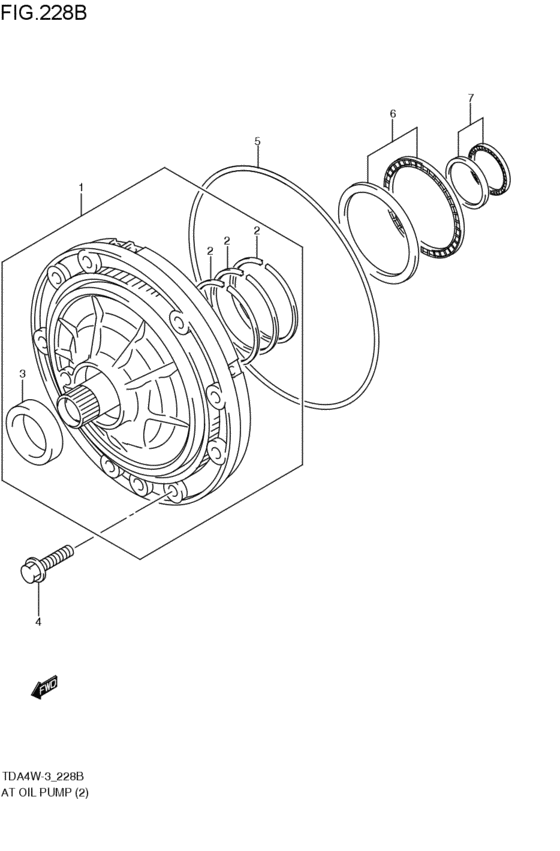

at - oil pump (AT:N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22800-54J11-000 PUMP ASSY,OILAT:N32A; 2008-04-01~ |
22800-54J11-000 |
from US $876.48 |
||
|
2
|
2
22875-54J10-000
RING,OIL PUMP OIL SEAL
AT:N32A; 2008-04-01~ |
22875-54J10-000 |
— | ||
|
3
|
3
22881-54J10-000 SEAL,OIL PUMP OILAT:N32A; 2008-04-01~ |
22881-54J10-000 |
from US $12.14 |
||
|
4
|
4
22814-54J10-000
BOLT,OIL PUMP
AT:N32A; 2008-04-01~ |
22814-54J10-000 |
— | ||
|
5
|
5
22885-54J30-000 O-RING,OIL PUMPAT:N32A; 2008-04-01~ |
22885-54J30-000 |
US $20.98 |
||
|
6
|
6
22894-54JT0-000 BEARING SET,THRUST NO.1AT:N32A; 2008-04-01~ |
22894-54JT0-000 |
from US $33.30 |
||
|
7
|
7
22896-54JT0-000
BEARING SET,THRUST NO.10
AT:N32A; 2008-04-01~ |
22896-54JT0-000 |
— |
