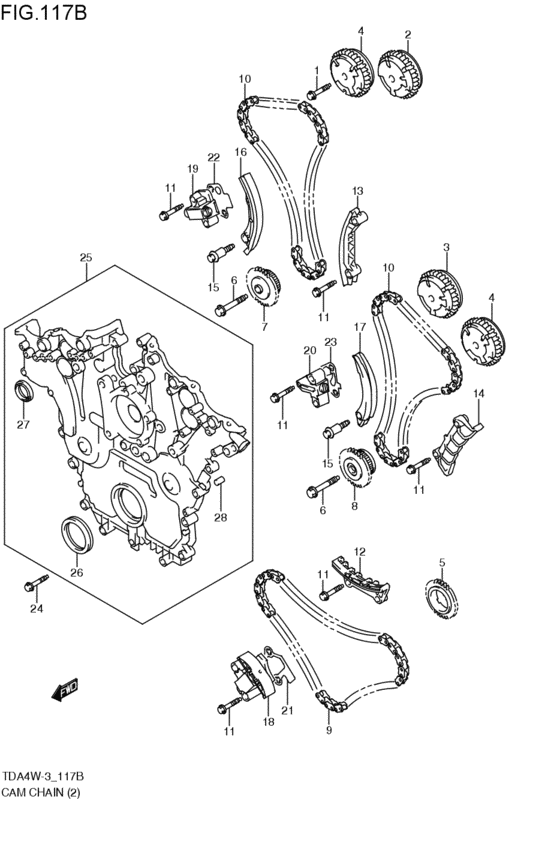

cam chain (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1274A-78J00-000 BOLT,CAMSHAFT TIMING SPROCKETN32A; 2008-04-01~ |
1274A-78J00-000 |
from US $16.63 |
||
|
2
|
2
12740-78J00-000 SPROCKET ASSY,CAMSHAFT INTK,RN32A; 2008-04-01~ |
12740-78J00-000 |
from US $371.68 |
||
|
3
|
3
12740-78J10-000 SPROCKET ASSY,CAMSHAFT INTK,LN32A; 2008-04-01~ |
12740-78J10-000 |
from US $273.92 |
||
|
4
|
4
12750-78J00-000 SPROCKET ASSY,CMSHFT EXHN32A; 2008-04-01~ |
12750-78J00-000 |
from US $337.03 |
||
|
5
|
5
12631-78J00-000 Sprocket, Crankshaft TimingN32A; 2008-04-01~ |
12631-78J00-000 |
from US $132.41 |
||
|
6
|
6
1274B-78J00-000 BOLT,IDLER SPROCKETN32A; 2008-04-01~ |
1274B-78J00-000 |
from US $28.78 |
||
|
7
|
7
12745-78J01-000 SPROCKET,IDLER,RN32A; 2008-04-01~ |
12745-78J01-000 |
US $331.20 |
||
|
8
|
8
12746-78J01-000 SPROCKET,IDLER,LN32A; 2008-04-01~ |
12746-78J01-000 |
US $333.04 |
||
|
9
|
9
12761-78J01-000
Chain comp,timing 1st
N32A; 2008-04-01~ |
12761-78J01-000 |
— | ||
| replacement | |||||
|
9
|
9
12761-78J02-000
CHAIN,TIMING 1ST
N32A; 2008-04-01~ |
12761-78J02-000 |
— | ||
|
10
|
10
12762-78J01-000
Chain comp,timing 2nd
N32A; 2008-04-01~ |
12762-78J01-000 |
— | ||
| replacement | |||||
|
10
|
10
12762-78J02-000
CHAIN,TIMING 2ND
N32A; 2008-04-01~ |
12762-78J02-000 |
— | ||
|
11
|
11
1277B-78J00-000 BoltN32A; 2008-04-01~ |
1277B-78J00-000 |
US $17.41 |
||
|
12
|
12
12771-78JG0-000 GUIDE,TIMING CHAIN PRIN32A; 2008-04-01~ |
12771-78JG0-000 |
from US $36.92 |
||
|
13
|
13
12772-78J00-000 GUIDE,TIMING CHAIN,RN32A; 2008-04-01~ |
12772-78J00-000 |
from US $47.10 |
||
|
14
|
14
12773-78J00-000
Guide,timing chain lh
N32A; 2008-04-01~ |
12773-78J00-000 |
— | ||
|
15
|
15
1281A-78J00-000
BOLT,TIMING CHAIN TENSIONER
N32A; 2008-04-01~ |
1281A-78J00-000 |
— | ||
|
16
|
16
12811-78J00-000 TENSIONER,TIMING CHAIN,RN32A; 2008-04-01~ |
12811-78J00-000 |
US $51.50 |
||
| replacement | |||||
|
16
|
16
12811-78J10-000 TENSIONER,TIMING CHAIN,RN32A; 2008-04-01~ |
12811-78J10-000 |
from US $51.50 |
||
|
17
|
17
12812-78J00-000 TENSIONER,TIMING CHAIN,LN32A; 2008-04-01~ |
12812-78J00-000 |
US $54.59 |
||
| replacement | |||||
|
17
|
17
12812-78J10-000 TENSIONER,TIMING CHAIN,LN32A; 2008-04-01~ |
12812-78J10-000 |
from US $54.59 |
||
|
18
|
18
12831-78J01-000 ADJUSTER ASSY,TENSIONER PRIN32A; 2008-04-01~ |
12831-78J01-000 |
from US $207.43 |
||
|
19
|
19
12832-78J01-000 ADJUSTER ASSY,TENSIONER,RN32A; 2008-04-01~ |
12832-78J01-000 |
from US $177.05 |
||
|
20
|
20
12833-78J01-000 ADJUSTER ASSY,TENSIONER,LN32A; 2008-04-01~ |
12833-78J01-000 |
from US $186.05 |
||
|
21
|
21
12834-78J00-000 GASKET,TENSIONER ADJUSTER PRIN32A; 2008-04-01~ |
12834-78J00-000 |
from US $24.53 |
||
|
22
|
22
12835-78J00-000 GASKET,TENSIONER ADJUSTER,RN32A; 2008-04-01~ |
12835-78J00-000 |
from US $24.53 |
||
|
23
|
23
12836-78J00-000 GASKET,TENSIONER ADJUSTER,LN32A; 2008-04-01~ |
12836-78J00-000 |
from US $24.53 |
||
|
24
|
24
1138D-78J00-000 BOLT,TIMING CHAIN COVERN32A; 2008-04-01~ |
1138D-78J00-000 |
from US $1.33 |
||
|
25
|
25
11380-78J02-000
COVER,TIMING CHAIN
N32A; 2008-04-01~ |
11380-78J02-000 |
— | ||
|
26
|
26
1138A-78J01-000 SEAL,CRANKSHAFT FR OILN32A; 2008-04-01~ |
1138A-78J01-000 |
US $16.88 |
||
|
27
|
27
1138B-78J00-000 SEAL,OCV OILN32A; 2008-04-01~ |
1138B-78J00-000 |
US $9.16 |
||
|
28
|
28
1151H-78J00-000
PIN,DOWEL
N32A; 2008-04-01~ |
1151H-78J00-000 |
— | ||
