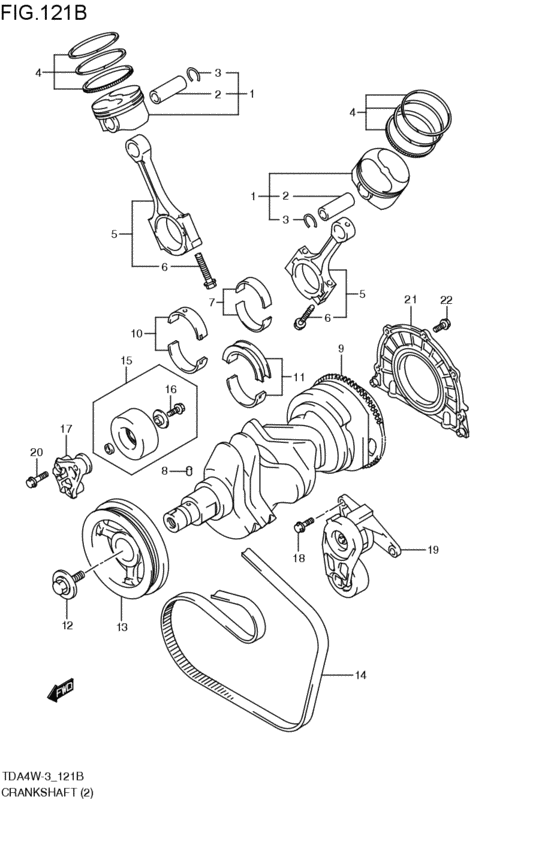

crankshaft (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-79810-000 PISTON, STDN32A; 2008-04-01~ |
12100-79810-000 |
from US $71.08 |
||
|
2
|
2
12151-78J00-000 PIN,PISTONN32A; 2008-04-01~ |
12151-78J00-000 |
US $10.67 |
||
|
3
|
3
12152-78J00-000 CIRCLIP,PISTON PINN32A; 2008-04-01~ |
12152-78J00-000 |
from US $24.48 |
||
|
4
|
4
12140-79K00-000 RING SET,PISTONN32A; 2008-04-01~ |
12140-79K00-000 |
US $77.28 |
||
|
5
|
5
12160-78J01-000 CONNROD ASSYN32A; 2008-04-01~ |
12160-78J01-000 |
from US $94.39 |
||
|
6
|
6
12163-78J00-000
BOLT,CONNROD
N32A; 2008-04-01~ |
12163-78J00-000 |
— | ||
|
7
|
7
12180-78J00-000 BEARING SET,CONNRODN32A; 2008-04-01~ |
12180-78J00-000 |
from US $41.74 |
||
|
8
|
8
1222A-78J00-000
PIN,DOWEL
N32A; 2008-04-01~ |
1222A-78J00-000 |
— | ||
|
9
|
9
12220-79K00-000
Crankshaft
N32A; 2008-04-01~ |
12220-79K00-000 |
— | ||
| replacement | |||||
|
9
|
9
12220-79K01-000 CRANKSHAFTN32A; 2008-04-01~ |
12220-79K01-000 |
US $1,259.04 |
||
|
10
|
10
12340-78J00-000
Bearing set,crankshaft no.1
N32A; 2008-04-01~ |
12340-78J00-000 |
— | ||
| replacement | |||||
|
10
|
10
12340-78J20-000 BEARING SET,CRANKSHAFT NO.1N32A; 2008-04-01~ |
12340-78J20-000 |
from US $26.01 |
||
|
11
|
11
12350-78J00-000
Bearing set,crankshaft no.2
N32A; 2008-04-01~ |
12350-78J00-000 |
— | ||
| replacement | |||||
|
11
|
11
12350-78J20-000 BEARING SET,CRANKSHAFT NO.2N32A; 2008-04-01~ |
12350-78J20-000 |
from US $27.59 |
||
|
12
|
12
1261A-78J01-000 BOLT,CRANKSHAFT PULLEYN32A; 2008-04-01~ |
1261A-78J01-000 |
from US $15.77 |
||
|
13
|
13
12610-78J00-000 PULLEY,CRANKSHAFTN32A; 2008-04-01~ |
12610-78J00-000 |
from US $237.13 |
||
|
14
|
14
17521-79K00-000 BELT,WATER PUMP 6PK2168N32A; 2008-04-01~ |
17521-79K00-000 |
from US $58.59 |
||
|
15
|
15
17530-79K00-000 PULLEY,BELT IDLERN32A; 2008-04-01~ |
17530-79K00-000 |
from US $31.77 |
||
|
16
|
16
01550-1035A-000 BoltBolt, fr fork upper N32A; 2008-04-01~ |
01550-1035A-000 |
from US $1.62 |
||
|
17
|
17
17531-79K00-000 ARM,IDLER PULLEYN32A; 2008-04-01~ |
17531-79K00-000 |
from US $20.18 |
||
|
18
|
18
1754A-78J00-000
BOLT,8X55
N32A; 2008-04-01~ |
1754A-78J00-000 |
— | ||
|
19
|
19
17540-78J00-000
Tensioner assy,gen belt
N32A; 2008-04-01~ |
17540-78J00-000 |
— | ||
| replacement | |||||
|
19
|
19
17540-78J01-000 TENSIONER ASSY,GEN BELTN32A; 2008-04-01~ |
17540-78J01-000 |
US $181.96 |
||
|
20
|
20
01550-1050A-000 BoltBolt, exhaust tube N32A; 2008-04-01~ |
01550-1050A-000 |
from US $1.28 |
||
|
21
|
21
11340-78J00-000 Housing,crank rear oil sealN32A; 2008-04-01~ |
11340-78J00-000 |
US $65.95 |
||
| replacement | |||||
|
21
|
21
11340-78J20-000 SEAL,CRANKSHAFT RRN32A; 2008-04-01~ |
11340-78J20-000 |
from US $65.95 |
||
|
22
|
22
1151J-78J00-000
BOLT,6X20
N32A; 2008-04-01~ |
1151J-78J00-000 |
— | ||
