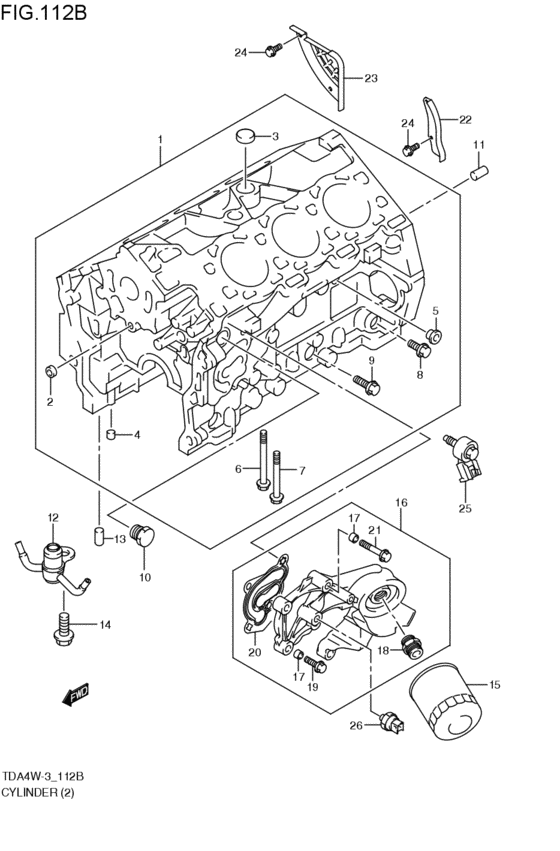

Cylinder (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-79K00-000
Block assy,cylinder
N32A; 2008-04-01~ |
11200-79K00-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-79K00-X12
BLOCK ASSY,CYLINDER N32A
N32A; 2008-04-01~ |
11200-79K00-X12 |
— | ||
|
2
|
2
1111A-78J00-000
PLUG
N32A; 2008-04-01~ |
1111A-78J00-000 |
— | ||
|
3
|
3
1121A-78J00-000
PLUG
N32A; 2008-04-01~ |
1121A-78J00-000 |
— | ||
|
4
|
4
1121B-78J00-000
PLUG
N32A; 2008-04-01~ |
1121B-78J00-000 |
— | ||
|
5
|
5
11214-78J00-000
PLUG,M14
N32A; 2008-04-01~ |
11214-78J00-000 |
— | ||
|
6
|
6
11251-78J00-000 BOLT,CRANK BRG CAP 10X102.5N32A; 2008-04-01~ |
11251-78J00-000 |
from US $9.24 |
||
|
7
|
7
11253-78J00-000 BOLT,CRANK BRG CAP 8X90.26N32A; 2008-04-01~ |
11253-78J00-000 |
from US $12.02 |
||
|
8
|
8
1126A-78J00-000 BOLT,CRANK BRG CAP 8X23.2N32A; 2008-04-01~ |
1126A-78J00-000 |
US $4.38 |
||
|
9
|
9
1126B-78J00-000 BOLT,CRANK BRG CAP 8X50N32A; 2008-04-01~ |
1126B-78J00-000 |
US $4.71 |
||
|
10
|
10
1111B-78J01-000
PLUG,M20
N32A; 2008-04-01~ |
1111B-78J01-000 |
— | ||
|
11
|
11
1121C-78J00-000
PIN
N32A; 2008-04-01~ |
1121C-78J00-000 |
— | ||
|
12
|
12
11390-78J01-000
Jet,piston cooling
N32A; 2008-04-01~ |
11390-78J01-000 |
— | ||
| replacement | |||||
|
12
|
12
11390-78J02-000
JET,PISTON COOLING
N32A; 2008-04-01~ |
11390-78J02-000 |
— | ||
|
13
|
13
1151H-78J00-000
PIN,DOWEL
N32A; 2008-04-01~ |
1151H-78J00-000 |
— | ||
|
14
|
14
1655B-78J00-000
BOLT,6X16
N32A; 2008-04-01~ |
1655B-78J00-000 |
— | ||
|
15
|
15
16510-78J01-000
Filter assy,oil
N32A; 2008-04-01~ |
16510-78J01-000 |
— | ||
| replacement | |||||
|
15
|
15
16510-78J02-000
FILTER ASSY,OIL
N32A; 2008-04-01~ |
16510-78J02-000 |
— | ||
|
16
|
16
16530-79K00-000
CASE,OIL FILTER ADAPTER
N32A; 2008-04-01~ |
16530-79K00-000 |
— | ||
|
17
|
17
1151F-78J00-000
RETAINER
N32A; 2008-04-01~ |
1151F-78J00-000 |
— | ||
|
18
|
18
12533-78J00-000 STAND,OIL FILTERN32A; 2008-04-01~ |
12533-78J00-000 |
from US $9.95 |
||
|
19
|
19
1653C-78J00-000
BOLT,OIL FILTER ADAPTER NO.1
N32A; 2008-04-01~ |
1653C-78J00-000 |
— | ||
|
20
|
20
16532-78J00-000 GASKET,OIL FILTER ADAPTERN32A; 2008-04-01~ |
16532-78J00-000 |
US $29.72 |
||
|
21
|
21
1754A-78J00-000
BOLT,8X55
N32A; 2008-04-01~ |
1754A-78J00-000 |
— | ||
|
22
|
22
11310-79K00-000
PLATE,CLUTCH HSG UPPER
N32A; 2008-04-01~ |
11310-79K00-000 |
— | ||
|
23
|
23
11320-79K00-000
PLATE,CLUTCH HSG LOWER
N32A; 2008-04-01~ |
11320-79K00-000 |
— | ||
|
24
|
24
02162-0610A-000 SCREWN32A; 2008-04-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
25
|
25
18640-78J20-000 SENSOR ASSY,KNOCKN32A; 2008-04-01~ |
18640-78J20-000 |
from US $117.39 |
||
|
26
|
26
37820-73H10-000
Switch assy,oil pressure
N32A; 2008-04-01~ |
37820-73H10-000 |
— | ||
| replacement | |||||
|
26
|
26
37820-73HP0-000 SWITCH ASSY,OIL PRESSN32A; 2008-04-01~ |
37820-73HP0-000 |
US $22.40 |
||
