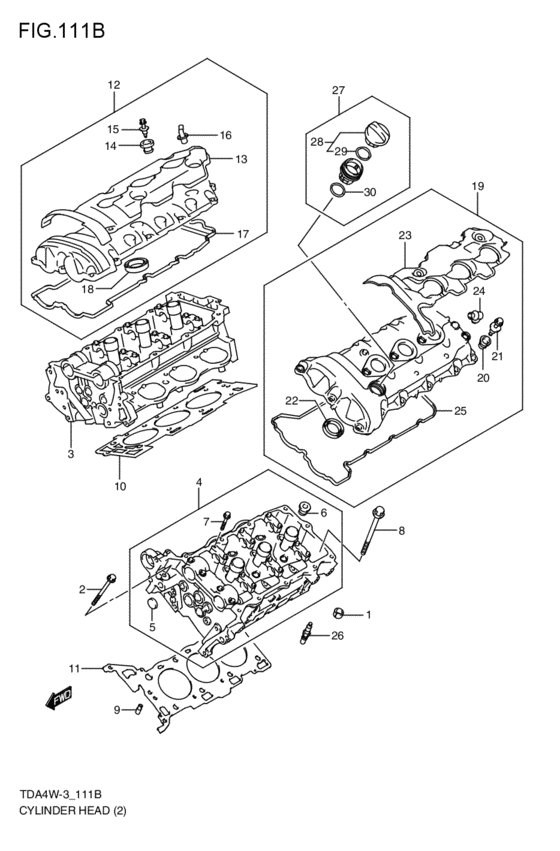

Cylinder head (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1111C-78J00-000
PIN,CYLINDER HEAD DOWEL
N32A; 2008-04-01~ |
1111C-78J00-000 |
— | ||
|
2
|
2
1111D-78J00-000 BOLT,CYLINDER HEAD SIDEN32A; 2008-04-01~ |
1111D-78J00-000 |
US $2.58 |
||
|
3
|
3
11110-79K00-000
HEAD,CYLINDER,R
N32A; 2008-04-01~ |
11110-79K00-000 |
— | ||
|
4
|
4
11120-79K00-000
HEAD,CYLINDER,L
N32A; 2008-04-01~ |
11120-79K00-000 |
— | ||
|
5
|
5
1111A-78J00-000
PLUG
N32A; 2008-04-01~ |
1111A-78J00-000 |
— | ||
|
6
|
6
1111B-78J01-000
PLUG,M20
N32A; 2008-04-01~ |
1111B-78J01-000 |
— | ||
|
7
|
7
11128-78J00-000
BOLT,CAMSHAFT HOUSING
N32A; 2008-04-01~ |
11128-78J00-000 |
— | ||
|
8
|
8
11117-78J00-000 BOLT,CYLINDER HEADN32A; 2008-04-01~ |
11117-78J00-000 |
from US $28.67 |
||
|
9
|
9
11130-78J00-000 VALVE,OIL RELIEFN32A; 2008-04-01~ |
11130-78J00-000 |
from US $20.52 |
||
|
10
|
10
11141-79K00-000 GASKET,CYL HEAD,RN32A; 2008-04-01~ |
11141-79K00-000 |
from US $75.81 |
||
|
11
|
11
11142-79K00-000 GASKET,CYL HEAD,LN32A; 2008-04-01~ |
11142-79K00-000 |
from US $75.81 |
||
|
12
|
12
11170-53L10-000 COVER,CYLINDER HEAD,RN32A; 2008-04-01~ |
11170-53L10-000 |
US $334.88 |
||
|
13
|
13
1117B-53L00-000
DAMPER,CYLINDER HEAD COVER,R
N32A; 2008-04-01~ |
1117B-53L00-000 |
— | ||
|
14
|
14
11177-78J01-000
INSULATOR
N32A; 2008-04-01~ |
11177-78J01-000 |
— | ||
|
15
|
15
11178-78J01-000
BOLT,CYLINDER HEAD COVER
N32A; 2008-04-01~ |
11178-78J01-000 |
— | ||
| replacement | |||||
|
15
|
15
1117C-78J00-000
BOLT ASSY,CYL HEAD COVER
N32A; 2008-04-01~ |
1117C-78J00-000 |
— | ||
|
16
|
16
11175-78J00-000
PIPE,BREATHER
N32A; 2008-04-01~ |
11175-78J00-000 |
— | ||
|
17
|
17
11176-78J01-000
Gasket,cylinder head cover rh
N32A; 2008-04-01~ |
11176-78J01-000 |
— | ||
| replacement | |||||
|
17
|
17
11176-78J02-000 GASKET,CYL HEAD COVER,RN32A; 2008-04-01~ |
11176-78J02-000 |
US $38.86 |
||
|
18
|
18
11179-78J01-000 SEAL,PLUG HOLE PIPEN32A; 2008-04-01~ |
11179-78J01-000 |
US $9.25 |
||
|
19
|
19
11180-53L10-000 COVER,CYLINDER HEAD,LN32A; 2008-04-01~ |
11180-53L10-000 |
from US $277.84 |
||
|
20
|
20
11177-78J01-000
INSULATOR
N32A; 2008-04-01~ |
11177-78J01-000 |
— | ||
|
21
|
21
11178-78J01-000
BOLT,CYLINDER HEAD COVER
N32A; 2008-04-01~ |
11178-78J01-000 |
— | ||
| replacement | |||||
|
21
|
21
1117C-78J00-000
BOLT ASSY,CYL HEAD COVER
N32A; 2008-04-01~ |
1117C-78J00-000 |
— | ||
|
22
|
22
11179-78J01-000 SEAL,PLUG HOLE PIPEN32A; 2008-04-01~ |
11179-78J01-000 |
US $9.25 |
||
|
23
|
23
1118B-53L00-000
DAMPER,CYLINDER HEAD COVER,L
N32A; 2008-04-01~ |
1118B-53L00-000 |
— | ||
|
24
|
24
11185-78J00-000
PIPE,BREATHER
N32A; 2008-04-01~ |
11185-78J00-000 |
— | ||
|
25
|
25
11186-78J01-000 GASKET,CYL HEAD COVER,LN32A; 2008-04-01~ |
11186-78J01-000 |
from US $47.95 |
||
|
26
|
26
1119A-78J00-000 PLUG,SPARKN32A; 2008-04-01~ |
1119A-78J00-000 |
from US $13.64 |
||
|
27
|
27
16920-78J00-000 CAP ASSY,OIL FILLERN32A; 2008-04-01~ |
16920-78J00-000 |
US $41.58 |
||
|
28
|
28
16922-78J00-000 Cap,oil fillerN32A; 2008-04-01~ |
16922-78J00-000 |
from US $31.57 |
||
|
29
|
29
16923-78J00-000
O-RING,OIL FILLER CAP
N32A; 2008-04-01~ |
16923-78J00-000 |
— | ||
|
30
|
30
16923-78J00-000
O-RING,OIL FILLER CAP
N32A; 2008-04-01~ |
16923-78J00-000 |
— | ||
