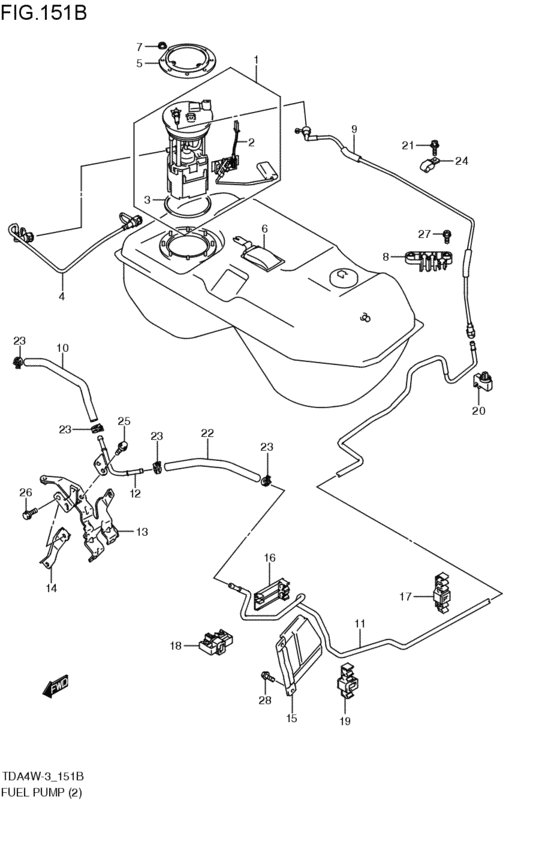

Fuel Pump (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-79810-000 PUMP SET,FUELN32A; 2008-04-01~ |
15100-79810-000 |
from US $855.36 |
||
|
2
|
2
15111-80J00-000 GASKET,FUEL PUMPN32A; 2008-04-01~ |
15111-80J00-000 |
US $18.40 |
||
|
3
|
3
34810-79K00-000
Gauge assy,fuel level
N32A; 2008-04-01~ |
34810-79K00-000 |
— | ||
| replacement | |||||
|
3
|
3
15101-78821-000 GAUGE ASSY,FUEL LEVELN32A; 2008-04-01~ |
15101-78821-000 |
US $167.56 |
||
|
4
|
4
15112-78K00-000 PIPE,FUEL SUCTIONN32A; 2008-04-01~ |
15112-78K00-000 |
from US $27.02 |
||
|
5
|
5
15121-61J00-000 PLATE,FUEL PUMPN32A; 2008-04-01~ |
15121-61J00-000 |
from US $7.11 |
||
|
6
|
6
15195-65J00-000 FILTER,FUEL SUCTIONN32A; 2008-04-01~ |
15195-65J00-000 |
from US $19.24 |
||
|
7
|
7
09159-06077-000 NUTN32A; 2008-04-01~ |
09159-06077-000 |
from US $1.28 |
||
|
8
|
8
15813-65J00-000 CLAMP,FUEL PIPEN32A; 2008-04-01~ |
15813-65J00-000 |
US $5.89 |
||
|
9
|
9
15814-78K00-000 PIPE,FUEL FEED PUMP TO PIPEN32A; 2008-04-01~ |
15814-78K00-000 |
US $54.46 |
||
|
10
|
10
15817-79K00-000 HOSE,FUEL PIPE TO DLVYN32A; 2008-04-01~ |
15817-79K00-000 |
US $20.06 |
||
|
11
|
11
15821-78K00-000 PIPE,FUELN32A; 2008-04-01~ |
15821-78K00-000 |
US $50.16 |
||
|
12
|
12
15830-79K00-000
PIPE,FUEL
N32A; 2008-04-01~ |
15830-79K00-000 |
— | ||
|
13
|
13
15841-79K00-000
BRACKET,FUEL PIPE
N32A; 2008-04-01~ |
15841-79K00-000 |
— | ||
|
14
|
14
15842-79K00-000
BRACKET,FUEL PIPE
N32A; 2008-04-01~ |
15842-79K00-000 |
— | ||
|
15
|
15
15871-65J00-000 COVER,FUEL PIPEN32A; 2008-04-01~ |
15871-65J00-000 |
from US $3.49 |
||
|
16
|
16
15875-65J00-000 COVER,FUEL PIPEN32A; 2008-04-01~ |
15875-65J00-000 |
US $2.90 |
||
|
17
|
17
15892-65J00-000 CLAMP,FUEL PIPEN32A; 2008-04-01~ |
15892-65J00-000 |
from US $2.59 |
||
|
18
|
18
15893-78K00-000 CLAMP,FUEL PIPEN32A; 2008-04-01~ |
15893-78K00-000 |
US $4.11 |
||
|
19
|
19
15894-65J00-000 CLAMP,FUEL PIPEN32A; 2008-04-01~ |
15894-65J00-000 |
US $3.95 |
||
|
20
|
20
15895-78K00-000 CLAMP,FUEL PIPEN32A; 2008-04-01~ |
15895-78K00-000 |
US $3.09 |
||
|
21
|
21
09115-06005-000 BOLT(6X16)N32A; 2008-04-01~ |
09115-06005-000 |
from US $0.86 |
||
|
22
|
22
15816-79K00-000 HOSE,FUELN32A; 2008-04-01~ |
15816-79K00-000 |
US $13.32 |
||
|
23
|
23
09401-11420-000 CLIPN32A; 2008-04-01~ |
09401-11420-000 |
from US $1.26 |
||
|
24
|
24
09403-13410-000 CLAMPN32A; 2008-04-01~ |
09403-13410-000 |
from US $1.40 |
||
|
25
|
25
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
02162-0610A-000 SCREWN32A; 2008-04-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
