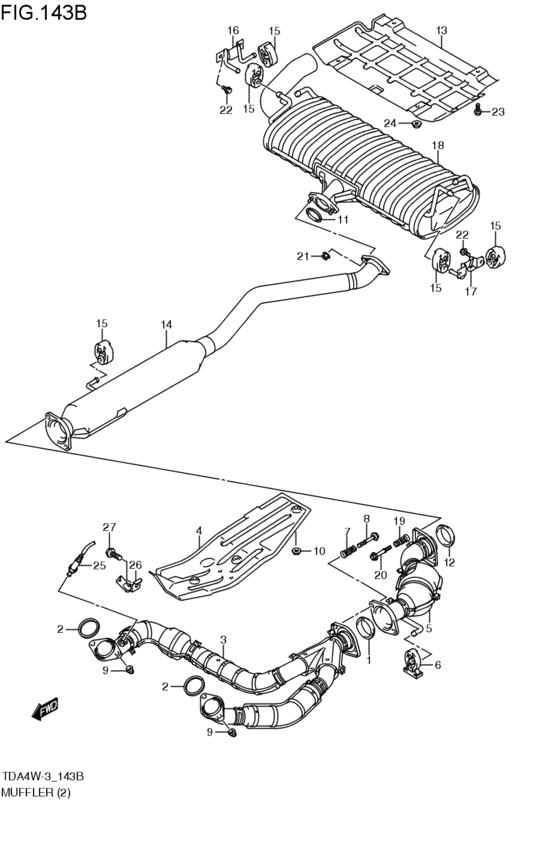

muffler (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14183-52D00-000 RING,SEAL EXH PIPEN32A; 2008-04-01~ |
14183-52D00-000 |
from US $15.57 |
||
|
2
|
2
14184-67D00-000 GASKET,MUFFLERN32A; 2008-04-01~ |
14184-67D00-000 |
from US $8.80 |
||
|
3
|
3
14190-79K00-000
パイプ,エキゾーストNO.1
N32A; 2008-04-01~ |
14190-79K00-000 |
— | ||
| replacement | |||||
|
3
|
3
14190-79K01-000 PIPE,EXH NO.1N32A; 2008-04-01~ |
14190-79K01-000 |
from US $556.49 |
||
|
4
|
4
14231-78K10-000 PANEL,HEAT PROTECTORN32A; 2008-04-01~ |
14231-78K10-000 |
from US $59.25 |
||
|
5
|
5
14250-79K10-000 PIPE,EXH NO.2N32A; 2008-04-01~ |
14250-79K10-000 |
from US $239.83 |
||
|
6
|
6
14281-65J11-000 MOUNTING,MUFN32A; 2008-04-01~ |
14281-65J11-000 |
from US $27.74 |
||
|
7
|
7
14492-67D00-000 SPRING,EXH PIPEN32A; 2008-04-01~ |
14492-67D00-000 |
from US $6.21 |
||
|
8
|
8
09119-10041-000 BOLT(10X65)N32A; 2008-04-01~ |
09119-10041-000 |
from US $5.18 |
||
|
9
|
9
09159-10098-000 NUTN32A; 2008-04-01~ |
09159-10098-000 |
from US $1.28 |
||
|
10
|
10
08316-1006A-000 NUTN32A; 2008-04-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
11
|
11
14182-78K00-000 GASKET,MUFFLERN32A; 2008-04-01~ |
14182-78K00-000 |
from US $5.56 |
||
|
12
|
12
14183-52D00-000 RING,SEAL EXH PIPEN32A; 2008-04-01~ |
14183-52D00-000 |
from US $15.57 |
||
|
13
|
13
14231-78K00-000
Panel,heat protector rear
N32A; 2008-04-01~ |
14231-78K00-000 |
— | ||
| replacement | |||||
|
13
|
13
14231-78K01-000 PANEL,HEAT PROTECTOR REARN32A; 2008-04-01~ |
14231-78K01-000 |
from US $25.58 |
||
|
14
|
14
14260-79K00-000
PIPE COMPEXH CENTER
N32A; 2008-04-01~ |
14260-79K00-000 |
— | ||
| replacement | |||||
|
14
|
14
14260-79K01-000 PIPE,EXH CENTERN32A; 2008-04-01~ |
14260-79K01-000 |
from US $292.05 |
||
|
15
|
15
14281-65J01-000 MOUNTING,MUFN32A; 2008-04-01~ |
14281-65J01-000 |
from US $11.39 |
||
|
16
|
16
14293-78K00-000 BRACKET,MUFFLER HANGERN32A; 2008-04-01~ |
14293-78K00-000 |
US $17.62 |
||
|
17
|
17
14293-78K10-000 BRACKET,MUFFLER HANGERN32A; 2008-04-01~ |
14293-78K10-000 |
from US $12.42 |
||
|
18
|
18
14300-79K00-000
Muffler
N32A; 2008-04-01~ |
14300-79K00-000 |
— | ||
| replacement | |||||
|
18
|
18
14300-79K01-000 MUFFLERN32A; 2008-04-01~ |
14300-79K01-000 |
US $1,103.52 |
||
|
19
|
19
14492-67D00-000 SPRING,EXH PIPEN32A; 2008-04-01~ |
14492-67D00-000 |
from US $6.21 |
||
|
20
|
20
09119-10041-000 BOLT(10X65)N32A; 2008-04-01~ |
09119-10041-000 |
from US $5.18 |
||
|
21
|
21
09159-10049-000 NutN32A; 2008-04-01~ |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
21
|
21
09159-10102-000 NUTN32A; 2008-04-01~ |
09159-10102-000 |
from US $1.28 |
||
|
22
|
22
01550-0816A-000 BoltBolt, rear N32A; 2008-04-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
24
|
24
08316-1006A-000 NUTN32A; 2008-04-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
25
|
25
18213-79K10-000 SENSOR,HEATED OXYGEN RRN32A; 2008-04-01~ |
18213-79K10-000 |
from US $181.37 |
||
|
26
|
26
18214-79K00-000
BRACKET,OXYGEN SNSR
N32A; 2008-04-01~ |
18214-79K00-000 |
— | ||
|
27
|
27
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
