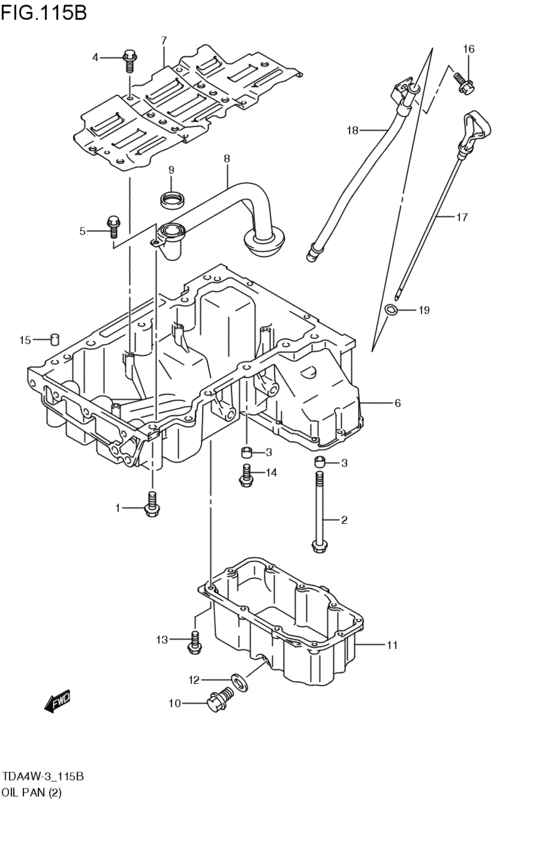

oil pan (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1151C-78J00-000 BOLT,OIL PAN 8X35N32A; 2008-04-01~ |
1151C-78J00-000 |
US $1.91 |
||
|
2
|
2
1151K-78J00-000 BOLT,OIL PAN M6N32A; 2008-04-01~ |
1151K-78J00-000 |
US $4.71 |
||
|
3
|
3
1151G-78J00-000
RETAINER,M6
N32A; 2008-04-01~ |
1151G-78J00-000 |
— | ||
|
4
|
4
1151J-78J00-000
BOLT,6X20
N32A; 2008-04-01~ |
1151J-78J00-000 |
— | ||
|
5
|
5
1151J-78J00-000
BOLT,6X20
N32A; 2008-04-01~ |
1151J-78J00-000 |
— | ||
|
6
|
6
11511-79K00-000 PAN,OIL UPPERN32A; 2008-04-01~ |
11511-79K00-000 |
from US $226.78 |
||
|
7
|
7
11512-79K00-000 PLATE,OIL PAN BAFFLEN32A; 2008-04-01~ |
11512-79K00-000 |
from US $12.11 |
||
|
8
|
8
16520-79K00-000 STRAINER,OIL PUMPN32A; 2008-04-01~ |
16520-79K00-000 |
from US $41.24 |
||
|
9
|
9
16526-78J00-000
GASKET,OIL STRAINER
N32A; 2008-04-01~ |
16526-78J00-000 |
— | ||
| replacement | |||||
|
9
|
9
16526-78J01-000 GASKET,OIL STRAINERN32A; 2008-04-01~ |
16526-78J01-000 |
US $20.24 |
||
|
10
|
10
11518-63J10-000 Plug,Oil DrainN32A; 2008-04-01~ |
11518-63J10-000 |
from US $1.89 |
||
|
11
|
11
11521-79K00-000 PAN,OIL LOWERN32A; 2008-04-01~ |
11521-79K00-000 |
from US $105.80 |
||
|
12
|
12
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union N32A; 2008-04-01~ |
09168-14015-000 |
from US $1.15 |
||
|
13
|
13
01550-0625A-000 BoltBolt N32A; 2008-04-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
14
|
14
01550-0625A-000 BoltBolt N32A; 2008-04-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
15
|
15
1151H-78J00-000
PIN,DOWEL
N32A; 2008-04-01~ |
1151H-78J00-000 |
— | ||
|
16
|
16
1655B-78J00-000
BOLT,6X16
N32A; 2008-04-01~ |
1655B-78J00-000 |
— | ||
|
17
|
17
16910-79K00-000 GAUGE,OIL LEVELN32A; 2008-04-01~ |
16910-79K00-000 |
from US $22.82 |
||
|
18
|
18
16930-79K00-000
GUIDE,OIL LEVEL GAUGE
N32A; 2008-04-01~ |
16930-79K00-000 |
— | ||
|
19
|
19
09280-07006-000 O RING(D:1.5,ID:7.5)N32A; 2008-04-01~ |
09280-07006-000 |
US $1.92 |
||
