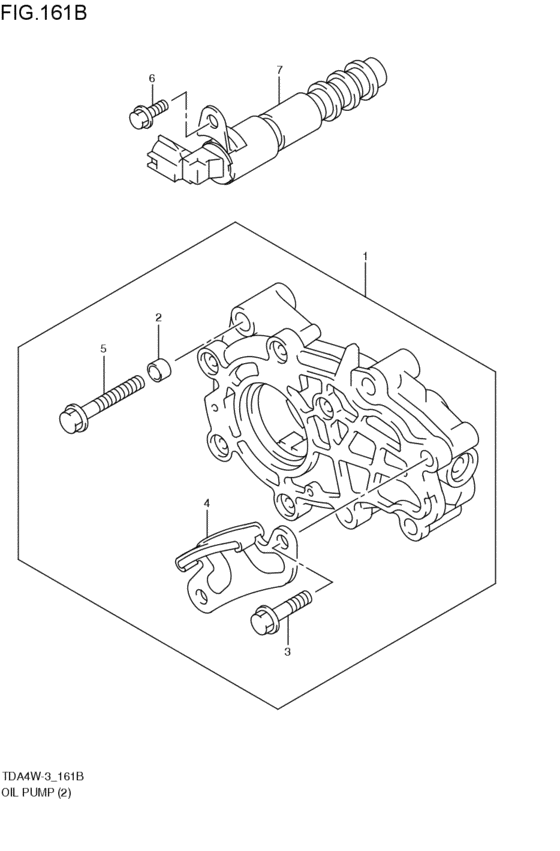

Oil pump (N32Aエンジン; N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-78J00-000
Pump assy,oil
N32A; 2008-04-01~ |
16100-78J00-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-78J01-000 PUMP ASSY,OILN32A; 2008-04-01~ |
16100-78J01-000 |
from US $266.96 |
||
|
2
|
2
1151F-78J00-000
RETAINER
N32A; 2008-04-01~ |
1151F-78J00-000 |
— | ||
|
3
|
3
1277A-78J00-000
BOLT,8X35.7
N32A; 2008-04-01~ |
1277A-78J00-000 |
— | ||
|
4
|
4
12774-78J00-000 GUIDE,TIMING CHAIN LWRN32A; 2008-04-01~ |
12774-78J00-000 |
from US $26.93 |
||
|
5
|
5
1611A-78J00-000
BOLT,8X54
N32A; 2008-04-01~ |
1611A-78J00-000 |
— | ||
|
6
|
6
1655B-78J00-000
BOLT,6X16
N32A; 2008-04-01~ |
1655B-78J00-000 |
— | ||
|
7
|
7
16550-78J01-000
Valve,oil control
N32A; 2008-04-01~ |
16550-78J01-000 |
— | ||
| replacement | |||||
|
7
|
7
16550-78J02-000 VALVE,OIL CONTROLN32A; 2008-04-01~ |
16550-78J02-000 |
from US $166.70 |
||
