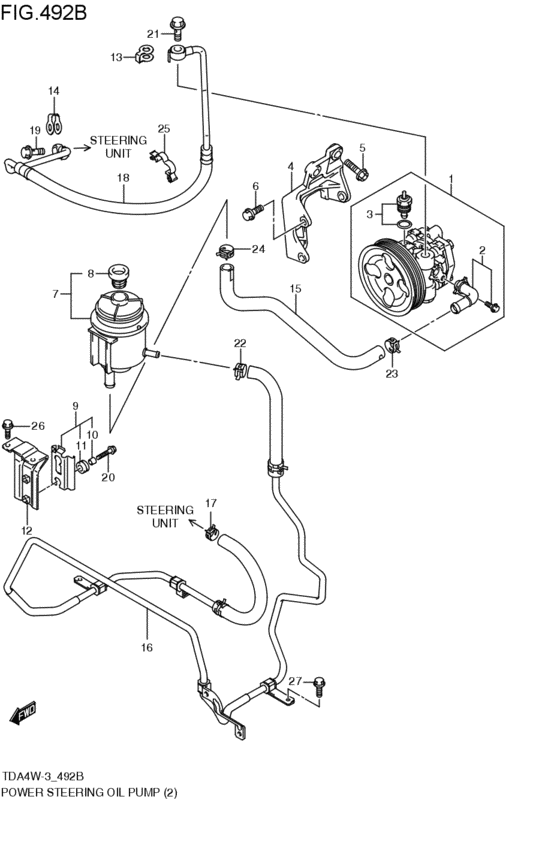

power steering oil pump (XS,XSN,XSW; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-79K00-000 PUMP ASSY,POWER STEERINGXS,XSN,XSW; 2008-04-01~ |
49100-79K00-000 |
from US $647.71 |
||
|
2
|
2
49112-79K00-000 CONNECTOR SETXS,XSN,XSW; 2008-04-01~ |
49112-79K00-000 |
US $38.27 |
||
|
3
|
3
49113-65D00-000 TERMINAL SETXS,XSN,XSW; 2008-04-01~ |
49113-65D00-000 |
from US $40.80 |
||
|
4
|
4
49120-79K00-000
BRACKET,POWER STRG PUMP
XS,XSN,XSW; 2008-04-01~ |
49120-79K00-000 |
— | ||
|
5
|
5
11617-79K00-000
BOLT,10X35
XS,XSN,XSW; 2008-04-01~ |
11617-79K00-000 |
— | ||
|
6
|
6
01550-0825A-000 BoltXS,XSN,XSW; 2008-04-01~ |
01550-0825A-000 |
from US $0.47 |
||
|
7
|
7
49140-65J00-000 TANK ASSY,POWER STEERING OILXS,XSN,XSW; 2008-04-01~ |
49140-65J00-000 |
from US $76.19 |
||
|
8
|
8
49142-65D00-000 CAP,PS OIL TANKXS,XSN,XSW; 2008-04-01~ |
49142-65D00-000 |
from US $6.56 |
||
|
9
|
9
49150-60G00-000 BRACKET ASSY,PS TANKXS,XSN,XSW; 2008-04-01~ |
49150-60G00-000 |
from US $7.81 |
||
|
10
|
10
09180-06038-000 SPACER(6.1X9X7.5)Spacer (6.1x9x7.5) XS,XSN,XSW; 2008-04-01~ |
09180-06038-000 |
from US $0.61 |
||
|
11
|
11
09320-08501-000 CUSHIONXS,XSN,XSW; 2008-04-01~ |
09320-08501-000 |
from US $3.42 |
||
|
12
|
12
49152-65J00-000 BRACKET,PS TANK NO.2XS,XSN,XSW; 2008-04-01~ |
49152-65J00-000 |
from US $7.62 |
||
|
13
|
13
49211-63G03-000 GASKET,PRESSURE PIPEXS,XSN,XSW; 2008-04-01~ |
49211-63G03-000 |
from US $5.60 |
||
|
14
|
14
49211-65J00-000 GASKET,GEAR BOXXS,XSN,XSW; 2008-04-01~ |
49211-65J00-000 |
from US $8.48 |
||
|
15
|
15
49214-79K00-000 HOSE,SUCTIONXS,XSN,XSW; 2008-04-01~ |
49214-79K00-000 |
from US $39.69 |
||
|
16
|
16
49220-78K00-000
ホースアッシ,リターン
XS,XSN,XSW; 2008-04-01~ |
49220-78K00-000 |
— | ||
| replacement | |||||
|
16
|
16
49220-78K01-000 HOSE ASSY,RETURNXS,XSN,XSW; 2008-04-01~ |
49220-78K01-000 |
US $185.60 |
||
|
17
|
17
49225-65D10-000 CLAMP,RETURN GEAR SIDEXS,XSN,XSW; 2008-04-01~ |
49225-65D10-000 |
from US $1.64 |
||
|
18
|
18
49230-79K00-000 HOSE,PRESSUREXS,XSN,XSW; 2008-04-01~ |
49230-79K00-000 |
US $202.40 |
||
|
19
|
19
49237-65J00-000 BOLT,UNION GEAR BOXXS,XSN,XSW; 2008-04-01~ |
49237-65J00-000 |
from US $6.92 |
||
|
20
|
20
09136-06133-000 BOLT(6X16)Screw XS,XSN,XSW; 2008-04-01~ |
09136-06133-000 |
from US $0.77 |
||
|
21
|
21
09360-16003-000 UNIONXS,XSN,XSW; 2008-04-01~ |
09360-16003-000 |
from US $9.25 |
||
|
22
|
22
09401-15404-000 CLIPXS,XSN,XSW; 2008-04-01~ |
09401-15404-000 |
from US $1.33 |
||
|
23
|
23
09401-20405-000 CLIPClip, tank XS,XSN,XSW; 2008-04-01~ |
09401-20405-000 |
from US $2.14 |
||
|
24
|
24
09401-20405-000 CLIPClip, tank XS,XSN,XSW; 2008-04-01~ |
09401-20405-000 |
from US $2.14 |
||
|
25
|
25
09408-00151-000 CLAMPXS,XSN,XSW; 2008-04-01~ |
09408-00151-000 |
US $16.90 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket XS,XSN,XSW; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket XS,XSN,XSW; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
