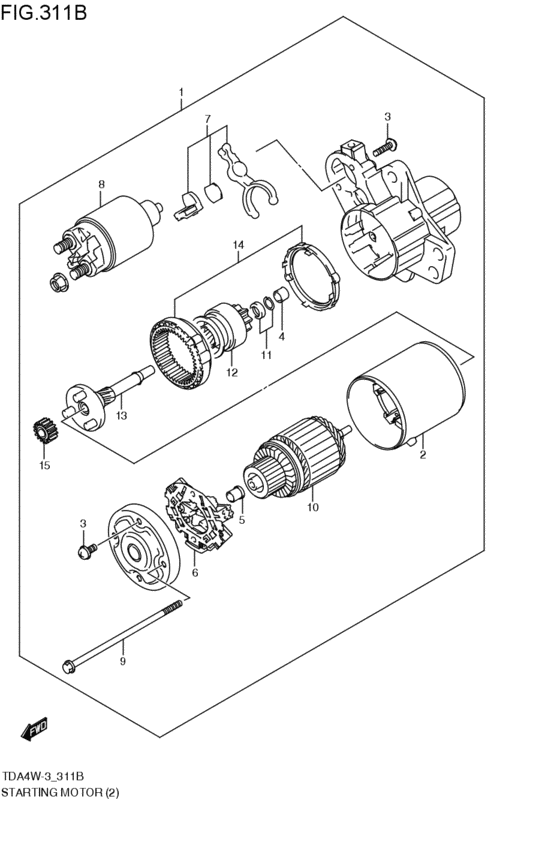

starting motor (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-79K00-000 MOTOR ASSY,STARTINGN32A; 2008-04-01~ |
31100-79K00-000 |
from US $622.71 |
||
|
2
|
2
31110-79K00-000
YOKE ASSY
N32A; 2008-04-01~ |
31110-79K00-000 |
— | ||
|
3
|
3
31136-79030-000 SCREW ASSYN32A; 2008-04-01~ |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
3
|
3
31175-79030-000 Screw SetN32A; 2008-04-01~ |
31175-79030-000 |
US $8.16 |
||
|
4
|
4
31152-63J00-000 BEARING,FRONTN32A; 2008-04-01~ |
31152-63J00-000 |
from US $10.56 |
||
|
5
|
5
31172-64B60-000 BEARING,REARN32A; 2008-04-01~ |
31172-64B60-000 |
from US $8.21 |
||
|
6
|
6
31173-63J00-000 BRUSH ASSYN32A; 2008-04-01~ |
31173-63J00-000 |
from US $32 |
||
|
7
|
7
31191-79K00-000 LEVER SETN32A; 2008-04-01~ |
31191-79K00-000 |
US $11.68 |
||
|
8
|
8
31220-65J10-000 SWITCH ASSYN32A; 2008-04-01~ |
31220-65J10-000 |
US $148.12 |
||
| replacement | |||||
|
8
|
8
31220-81P10-000 Switch AssyN32A; 2008-04-01~ |
31220-81P10-000 |
from US $118.64 |
||
|
9
|
9
31261-67D10-000 BoltN32A; 2008-04-01~ |
31261-67D10-000 |
from US $4.14 |
||
|
10
|
10
31311-65J10-000 ARMATUREN32A; 2008-04-01~ |
31311-65J10-000 |
US $314.64 |
||
|
11
|
11
31313-86030-000 STOPPER SETN32A; 2008-04-01~ |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
11
|
11
31314-86030-000 Stopper SetN32A; 2008-04-01~ |
31314-86030-000 |
from US $11.50 |
||
|
12
|
12
31320-79K00-000 CLUTCH,OVER RUNNINGN32A; 2008-04-01~ |
31320-79K00-000 |
US $147.57 |
||
|
13
|
13
31341-79K00-000
SHAFT ASSY,GEAR
N32A; 2008-04-01~ |
31341-79K00-000 |
— | ||
|
14
|
14
31343-63J00-000 INTERNAL GEARN32A; 2008-04-01~ |
31343-63J00-000 |
from US $29.34 |
||
|
15
|
15
31344-63J00-000 GEAR ASSYN32A; 2008-04-01~ |
31344-63J00-000 |
from US $17.53 |
||
