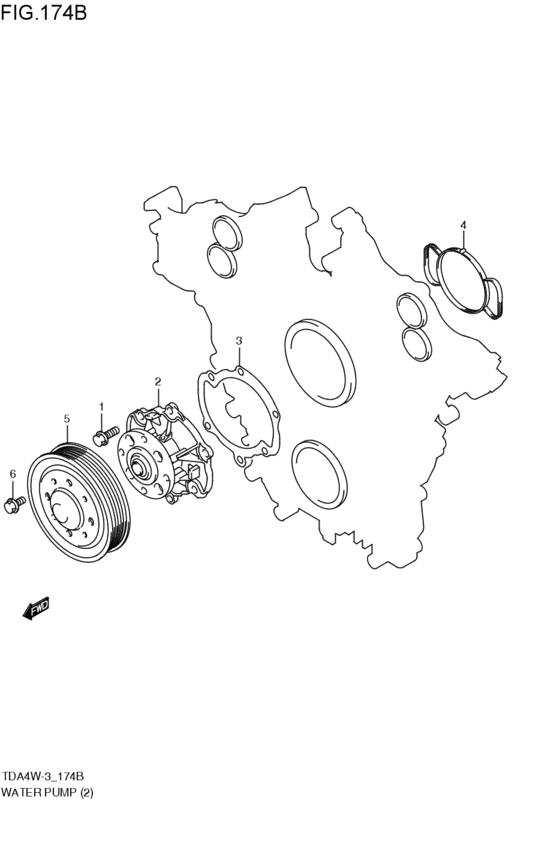

water pump (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1151J-78J00-000
BOLT,6X20
N32A; 2008-04-01~ |
1151J-78J00-000 |
— | ||
|
2
|
2
17400-78J00-000
Pump assy,water
N32A; 2008-04-01~ |
17400-78J00-000 |
— | ||
| replacement | |||||
|
2
|
2
17401-78812-000 PUMP SET,WATERN32A; 2008-04-01~ |
17401-78812-000 |
from US $336 |
||
|
3
|
3
17418-78J00-000 Gasket,water pump outerN32A; 2008-04-01~ |
17418-78J00-000 |
US $11.84 |
||
| replacement | |||||
|
3
|
3
17418-78J01-000 GASKET,WATER PUMPN32A; 2008-04-01~ |
17418-78J01-000 |
from US $11.84 |
||
|
4
|
4
17419-78J00-000 GASKET,WATER PUMP INRN32A; 2008-04-01~ |
17419-78J00-000 |
from US $12.14 |
||
|
5
|
5
1751A-78J00-000
BOLT,WATER PUMP PULLEY
N32A; 2008-04-01~ |
1751A-78J00-000 |
— | ||
|
6
|
6
17511-78J10-000 PULLEY,WATER PUMPN32A; 2008-04-01~ |
17511-78J10-000 |
from US $64.60 |
||
