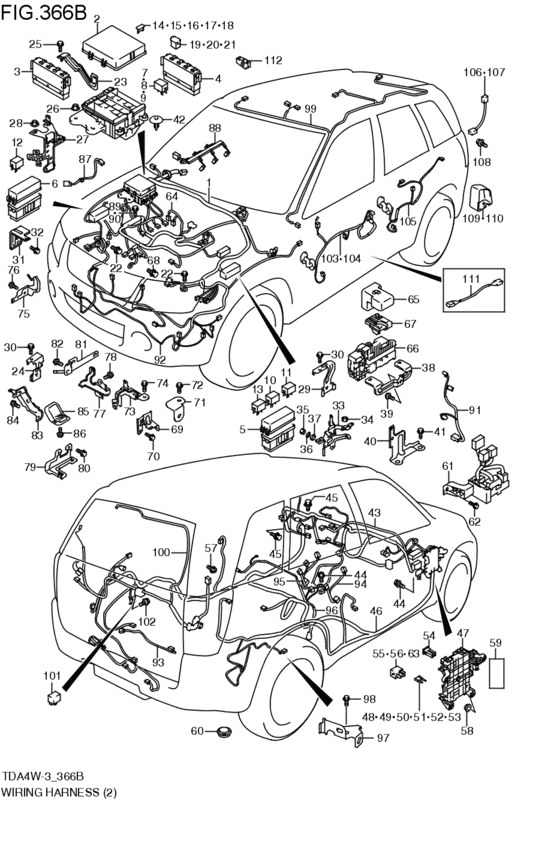

wire ring harness (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-79K00-000
ハーネスアッシ,メイン
N32A:(XS,XSN); 2008-04-01~ |
36610-79K00-000 |
— | ||
|
2
|
2
36738-65J02-000
カバー,フューズ/リレーボックス
N32A; 2008-04-01~ |
36738-65J02-000 |
— | ||
|
3
|
3
36742-65J00-000 MODULE,POWER INTEGRATIONMARK:SA; N32A; 2008-04-01~ |
36742-65J00-000 |
from US $49.21 |
||
|
4
|
4
36742-76J00-000 MODULE,POWER INTEGRATIONMARK:SB; N32A; 2008-04-01~ |
36742-76J00-000 |
from US $49.23 |
||
|
5
|
5
36744-65J00-000 COVER,RELAY BOXN32A; 2008-04-01~ |
36744-65J00-000 |
from US $7.16 |
||
|
6
|
6
36744-65J30-000 COVER,RELAY BOXN32A; 2008-04-01~ |
36744-65J30-000 |
US $9.38 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor ヘツドランプ リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor スタータ リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor デアイサ リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
10
|
10
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエ-タ フアン リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
11
|
11
38860-78F00-000 RELAY ASSYラジエ-タ フアン リレ-; N32A; 2008-04-01~ |
38860-78F00-000 |
from US $23.29 |
||
|
12
|
12
38860-78F00-000 RELAY ASSYストツプランプ リレ-; N32A; 2008-04-01~ |
38860-78F00-000 |
from US $23.29 |
||
|
13
|
13
74145-65D00-000 RELAY ASSYヒータ フロア フアン リレ-; N32A; 2008-04-01~ |
74145-65D00-000 |
from US $21.24 |
||
|
14
|
14
09481-10504-000 FUSE(10A)N32A; 2008-04-01~ |
09481-10504-000 |
from US $0.90 |
||
|
15
|
15
09481-15504-000 FUSE(15A)N32A; 2008-04-01~ |
09481-15504-000 |
from US $1.04 |
||
|
16
|
16
09481-20504-000 FUSE(20A)N32A; 2008-04-01~ |
09481-20504-000 |
from US $1.33 |
||
|
17
|
17
09481-25504-000 FUSE(25A)N32A; 2008-04-01~ |
09481-25504-000 |
from US $1.13 |
||
|
18
|
18
09481-30504-000 FUSE(30A)N32A; 2008-04-01~ |
09481-30504-000 |
from US $1.10 |
||
|
19
|
19
09481-30403-000 FUSE(30A)N32A; 2008-04-01~ |
09481-30403-000 |
from US $3.35 |
||
|
20
|
20
09481-40403-000 FUSE(40A)N32A; 2008-04-01~ |
09481-40403-000 |
from US $3.49 |
||
|
21
|
21
09481-50403-000 FUSE(50A)N32A; 2008-04-01~ |
09481-50403-000 |
from US $3.13 |
||
|
22
|
22
09115-06005-000 BOLT(6X16)N32A; 2008-04-01~ |
09115-06005-000 |
from US $0.86 |
||
|
23
|
23
36735-64JA1-000 BRACKET,MAIN FUSE&RLY BOXN32A; 2008-04-01~ |
36735-64JA1-000 |
US $5.67 |
||
|
24
|
24
36735-80K30-000 BRACKET,STOP RLY BOXN32A; 2008-04-01~ |
36735-80K30-000 |
US $4.27 |
||
|
25
|
25
09122-86002-000 SCREW(6X12)N32A; 2008-04-01~ |
09122-86002-000 |
US $11.80 |
||
|
26
|
26
09159-06076-000 NUTN32A; 2008-04-01~ |
09159-06076-000 |
from US $0.99 |
||
|
27
|
27
36735-64J11-000 BRACKET,STRUT RN32A; 2008-04-01~ |
36735-64J11-000 |
US $13.14 |
||
|
28
|
28
09159-06076-000 NUTN32A; 2008-04-01~ |
09159-06076-000 |
from US $0.99 |
||
|
29
|
29
36735-64J30-000 BRACKET,RDTR RLY BOXN32A; 2008-04-01~ |
36735-64J30-000 |
US $3.64 |
||
|
30
|
30
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
31
|
31
36651-79K60-000
BRACKET,BODY HARN
N32A; 2008-04-01~ |
36651-79K60-000 |
— | ||
|
32
|
32
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
33
|
33
36735-76K00-000 BRACKET,STRUT LN32A; 2008-04-01~ |
36735-76K00-000 |
US $23.37 |
||
|
34
|
34
09159-06076-000 NUTN32A; 2008-04-01~ |
09159-06076-000 |
from US $0.99 |
||
|
35
|
35
09159-06081-000 NUTN32A; 2008-04-01~ |
09159-06081-000 |
from US $1.31 |
||
|
36
|
36
09180-06347-000 SPACER(6.5X13X7.5)N32A; 2008-04-01~ |
09180-06347-000 |
US $23.60 |
||
|
37
|
37
09320-12036-000 CUSHIONCushion, holder N32A; 2008-04-01~ |
09320-12036-000 |
from US $0.70 |
||
|
38
|
38
36745-64J00-000 BRACKET,FUSE BLOCKN32A; 2008-04-01~ |
36745-64J00-000 |
US $4.38 |
||
|
39
|
39
09122-86002-000 SCREW(6X12)N32A; 2008-04-01~ |
09122-86002-000 |
US $11.80 |
||
|
40
|
40
36745-76K00-000 BRACKET,BTRY HARNN32A; 2008-04-01~ |
36745-76K00-000 |
US $7.54 |
||
|
41
|
41
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
42
|
42
09409-06330-000 CLIPN32A; 2008-04-01~ |
09409-06330-000 |
from US $1.22 |
||
|
43
|
43
36620-78K30-000
ハーネスアッシ,インストゥルメントパネル
N32A:(XS,XSN); 2008-04-01~ |
36620-78K30-000 |
— | ||
| replacement | |||||
|
43
|
43
36620-78K31-000
New Genuine Part
N32A:(XS,XSN); 2008-04-01~ |
36620-78K31-000 |
— | ||
|
44
|
44
09115-06005-000 BOLT(6X16)N32A; 2008-04-01~ |
09115-06005-000 |
from US $0.86 |
||
|
45
|
45
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
46
|
46
36630-78K10-000
ハーネスアッシ,フロア
N32A:(XS,XSN); 2008-04-01~ |
36630-78K10-000 |
— | ||
|
47
|
47
36710-76K00-000 BOX ASSY,JUNCTIONN32A; 2008-04-01~ |
36710-76K00-000 |
US $124.02 |
||
|
48
|
48
09481-07504-000 FUSE(7.5A)N32A; 2008-04-01~ |
09481-07504-000 |
from US $11.80 |
||
|
49
|
49
09481-10504-000 FUSE(10A)N32A; 2008-04-01~ |
09481-10504-000 |
from US $0.90 |
||
|
50
|
50
09481-15504-000 FUSE(15A)N32A; 2008-04-01~ |
09481-15504-000 |
from US $1.04 |
||
|
51
|
51
09481-20504-000 FUSE(20A)N32A; 2008-04-01~ |
09481-20504-000 |
from US $1.33 |
||
|
52
|
52
09481-25504-000 FUSE(25A)N32A; 2008-04-01~ |
09481-25504-000 |
from US $1.13 |
||
|
53
|
53
09481-30504-000 FUSE(30A)N32A; 2008-04-01~ |
09481-30504-000 |
from US $1.10 |
||
|
54
|
54
09481-30403-000 FUSE(30A)N32A; 2008-04-01~ |
09481-30403-000 |
from US $3.35 |
||
|
55
|
55
38860-76F01-000 RELAY ASSYRelay, starting motor アクセサリ ソケツト リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
56
|
56
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ ランプ リレー; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
57
|
57
09115-06005-000 BOLT(6X16)N32A; 2008-04-01~ |
09115-06005-000 |
from US $0.86 |
||
|
58
|
58
08316-1006A-000 NUTN32A; 2008-04-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
59
|
59
36717-76K00-000 LABEL,FUSE BOXN32A; 2008-04-01~ |
36717-76K00-000 |
US $2.69 |
||
|
60
|
60
72999-67H00-000 CAP,OD:40N32A; 2008-04-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
61
|
61
36655-78K10-000 WIRE,AT&4WD CONTN32A; 2008-04-01~ |
36655-78K10-000 |
US $105.98 |
||
|
62
|
62
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
63
|
63
38860-76F01-000 RELAY ASSYRelay, starting motor シフトロツク リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $26.53 |
||
|
64
|
64
36650-79K00-000
Harness assy,eng
N32A; 2008-04-01~ |
36650-79K00-000 |
— | ||
|
65
|
65
36694-64J00-000 COVER,BTRY TERMINALN32A; 2008-04-01~ |
36694-64J00-000 |
from US $9.28 |
||
|
66
|
66
36740-64J10-000 BLOCK,FUSEN32A; 2008-04-01~ |
36740-64J10-000 |
from US $76.12 |
||
|
67
|
67
36739-66J00-000 FUSE,BATTERY CABLE 120AN32A; 2008-04-01~ |
36739-66J00-000 |
from US $18.22 |
||
|
68
|
68
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
69
|
69
36651-79KA0-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79KA0-000 |
— | ||
|
70
|
70
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
71
|
71
36651-79KB0-000
BRACKET,ENG PROTECTOR
N32A; 2008-04-01~ |
36651-79KB0-000 |
— | ||
|
72
|
72
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
73
|
73
36651-79K00-000
BRACKET,ENG HEAD
N32A; 2008-04-01~ |
36651-79K00-000 |
— | ||
|
74
|
74
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
75
|
75
36651-79K10-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79K10-000 |
— | ||
|
76
|
76
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
77
|
77
36651-79K20-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79K20-000 |
— | ||
|
78
|
78
09103-10216-000 BOLT(10X20)N32A; 2008-04-01~ |
09103-10216-000 |
from US $6.68 |
||
|
79
|
79
36651-79K30-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79K30-000 |
— | ||
|
80
|
80
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
81
|
81
36651-79K50-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79K50-000 |
— | ||
|
82
|
82
09103-10216-000 BOLT(10X20)N32A; 2008-04-01~ |
09103-10216-000 |
from US $6.68 |
||
|
83
|
83
36651-79K70-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79K70-000 |
— | ||
|
84
|
84
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
85
|
85
36651-79K90-000
BRACKET,ENG HARN
N32A; 2008-04-01~ |
36651-79K90-000 |
— | ||
|
86
|
86
01550-0625A-000 BoltBolt N32A; 2008-04-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
87
|
87
36654-79K00-000 WIRE,CKPN32A; 2008-04-01~ |
36654-79K00-000 |
US $33.49 |
||
|
88
|
88
36670-79K00-000 HARNESS ASSY,INJN32A; 2008-04-01~ |
36670-79K00-000 |
US $122.91 |
||
|
89
|
89
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
90
|
90
01550-0612A-000 BoltN32A; 2008-04-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
91
|
91
74156-64J00-000 WIRE,A/C PANELN32A; 2008-04-01~ |
74156-64J00-000 |
US $48.58 |
||
|
92
|
92
36658-65J10-000 WIRE,FR DIFF&HEIGHT SENSORN32A; 2008-04-01~ |
36658-65J10-000 |
US $56.67 |
||
|
93
|
93
36658-78K00-000 WIRE,RR HEIGHT SENSORN32A; 2008-04-01~ |
36658-78K00-000 |
US $31.10 |
||
|
94
|
94
36611-65J00-000 WIRE,CONSOLEN32A; 2008-04-01~ |
36611-65J00-000 |
US $29.07 |
||
|
95
|
95
36611-65J70-000 WIRE,CONSOLEN32A; 2008-04-01~ |
36611-65J70-000 |
US $26.86 |
||
|
96
|
96
36840-78K00-000 WIRE,FUELN32A; 2008-04-01~ |
36840-78K00-000 |
from US $50.42 |
||
|
97
|
97
36648-78K00-000 BRACKET,FUEL WIREN32A; 2008-04-01~ |
36648-78K00-000 |
US $3.35 |
||
|
98
|
98
02162-0612A-000 SCREWBolt, bracket N32A; 2008-04-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
99
|
99
36820-78K20-000
ワイヤ,ルーフ
N32A; 2008-04-01~ |
36820-78K20-000 |
— | ||
|
100
|
100
36680-78K10-000 WIRE,BACK DRN32A; 2008-04-01~ |
36680-78K10-000 |
US $141.68 |
||
|
101
|
101
38860-78F00-000 RELAY ASSYリヤワイパ リレー; N32A; 2008-04-01~ |
38860-78F00-000 |
from US $23.29 |
||
|
102
|
102
09115-06005-000 BOLT(6X16)N32A; 2008-04-01~ |
09115-06005-000 |
from US $0.86 |
||
|
103
|
103
36756-78K30-000
ワイヤ,フロントドライバドア
N32A; 2008-04-01~ |
36756-78K30-000 |
— | ||
|
104
|
104
36757-78K30-000
ワイヤ,フロントドアパセンジヤ
N32A; 2008-04-01~ |
36757-78K30-000 |
— | ||
|
105
|
105
36751-78K20-000 WIRE,RR DRN32A; 2008-04-01~ |
36751-78K20-000 |
US $81.70 |
||
|
109
|
109
35819-65J00-000
カバー,アンテナターミナル,ライト
N32A; 2008-04-01~ |
35819-65J00-000 |
— | ||
|
110
|
110
35819-65J10-000
カバー,アンテナターミナル,レフト
N32A; 2008-04-01~ |
35819-65J10-000 |
— | ||
|
111
|
111
36691-65J00-000 WIRE,A/B PASSENGERオプシヨン; N32A; 2008-04-01~ |
36691-65J00-000 |
US $34.96 |
||
|
112
|
112
36737-64J00-000 PULLER,FUSEオプシヨン; N32A; 2008-04-01~ |
36737-64J00-000 |
US $2.91 |
||
