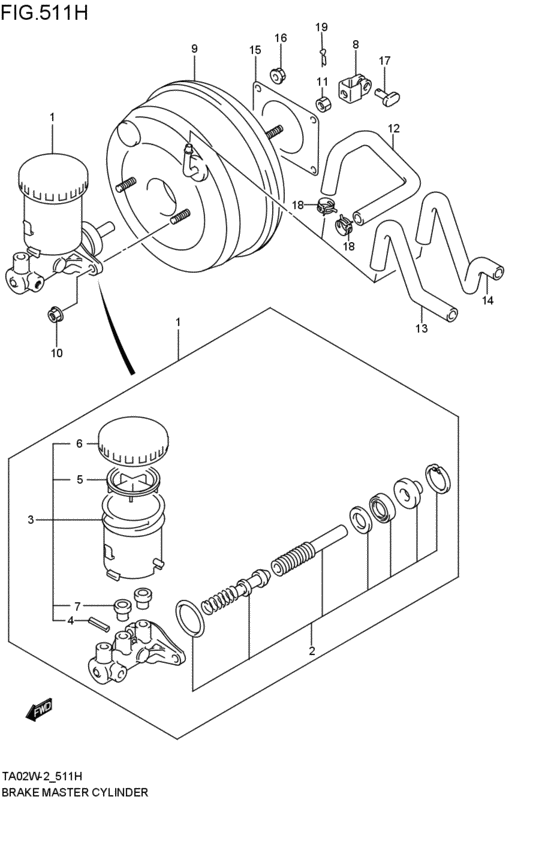

brakes master cylinder (2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-65D71-000
Cylinder assy,brake master
5DR; 2000-04-01~2002-09-01 |
51100-65D71-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-65D72-000
CYLINDER ASSY,BRAKE MASTER
5DR; 2000-04-01~2002-09-01 |
51100-65D72-000 |
— | ||
|
2
|
2
51810-77E50-000
Repair set,brake master
5DR; 2000-04-01~2002-09-01 |
51810-77E50-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-77E51-000 REPAIR SET,BRAKE MASTER5DR; 2000-04-01~2002-09-01 |
51810-77E51-000 |
US $95.68 |
||
|
3
|
3
51200-65D10-000 RESERVOIR ASSY,MASTER CYLINDER2000-04-01~2002-09-01 |
51200-65D10-000 |
US $111.87 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)2000-04-01~2002-09-01 |
09205-05003-000 |
US $1.76 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDER2000-04-01~2002-09-01 |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A30-000 CAP,RESERVOIR2000-04-01~2002-09-01 |
51220-60A30-000 |
US $32.94 |
||
|
7
|
7
51197-85520-000 GROMMET,RESERVOIR CONNECTOR2000-04-01~2002-09-01 |
51197-85520-000 |
US $2.72 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD2000-04-01~2002-09-01 |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51300-65D00-000 BOOSTER ASSY,BRAKE MASTER2000-04-01~2002-09-01 |
51300-65D00-000 |
US $1,126.40 |
||
|
10
|
10
09159-08075-000 NUT2000-04-01~2002-09-01 |
09159-08075-000 |
US $0.91 |
||
|
11
|
11
09140-10019-000 NUT2000-04-01~2002-09-01 |
09140-10019-000 |
US $9.20 |
||
|
13
|
13
51010-65D10-000
HOSE,BRAKE VACUUM
J20A; 2000-04-01~2002-09-01 |
51010-65D10-000 |
— | ||
| replacement | |||||
|
13
|
13
51010-65D11-000
Hose,brake Vacuum
J20A; 2000-04-01~2002-09-01 |
51010-65D11-000 |
— | ||
|
15
|
15
51132-82003-000 PACKING,BRAKE MASTER CYLINDER2000-04-01~2002-09-01 |
51132-82003-000 |
US $1.60 |
||
|
16
|
16
09159-08069-000
Nut
2000-04-01~2002-09-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
16
|
16
09159-08135-000 NUT2000-04-01~2002-09-01 |
09159-08135-000 |
from US $0.77 |
||
|
17
|
17
09200-10021-000 PIN2000-04-01~2002-09-01 |
09200-10021-000 |
US $1.28 |
||
|
18
|
18
09401-15404-000 CLIP2000-04-01~2002-09-01 |
09401-15404-000 |
from US $1.06 |
||
|
19
|
19
09385-10006-000 PIN,SNAPPin 2000-04-01~2002-09-01 |
09385-10006-000 |
from US $1.60 |
||
