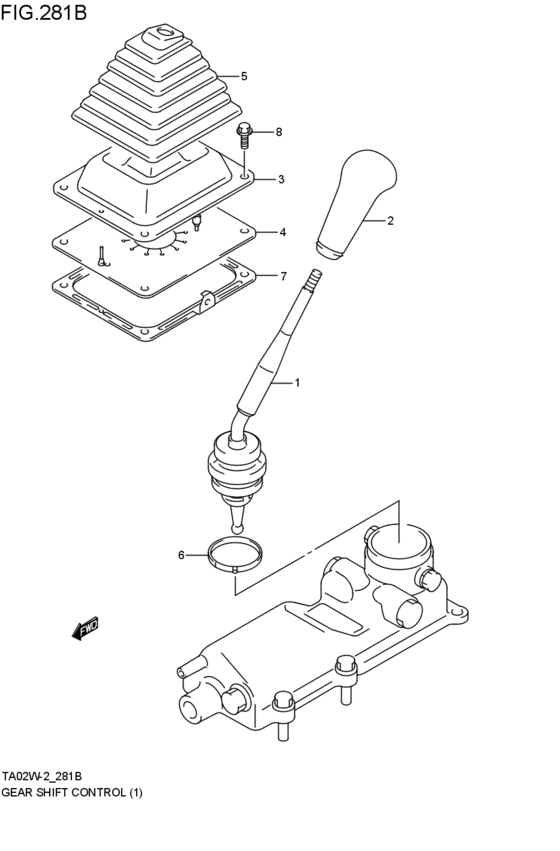

gearlever control (MT; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-65D10-000 LEVER,GEAR SHF CONTMT; 2000-04-01~2002-09-01 |
28101-65D10-000 |
US $90.53 |
||
|
2
|
2
28113-70G40-5PK
KNOB,CONT LEVER
ブラック; MT; 2000-04-01~2002-09-01 |
28113-70G40-5PK |
— | ||
| replacement | |||||
|
2
|
2
28113-70G41-5PK KNOB,CONT LEVER(BLACK)ブラック; MT; 2000-04-01~2002-09-01 |
28113-70G41-5PK |
US $67.20 |
||
|
3
|
3
28136-65D01-000 BOOT,GR SHF CONT LEVER N0.2MT; 2000-04-01~2002-09-01 |
28136-65D01-000 |
US $26.72 |
||
|
4
|
4
28135-65D00-000 SHEET,GEAR SHF CONT LEVER NO.2MT; 2000-04-01~2002-09-01 |
28135-65D00-000 |
US $47.20 |
||
|
5
|
5
28138-65D20-5PK BOOT,SHIFT CONT LEVERブラック; MT; 2000-04-01~2002-09-01 |
28138-65D20-5PK |
US $45.60 |
||
|
6
|
6
09401-57901-000 CLAMPMT; 2000-04-01~2002-09-01 |
09401-57901-000 |
US $7.84 |
||
|
7
|
7
28137-65D01-000
COVER,GEAR SHF CONT BOOT
MT; 2000-04-01~2002-09-01 |
28137-65D01-000 |
— | ||
|
8
|
8
09118-08118-000 BOLT(8X20)MT; 2000-04-01~2002-09-01 |
09118-08118-000 |
US $12.50 |
||
