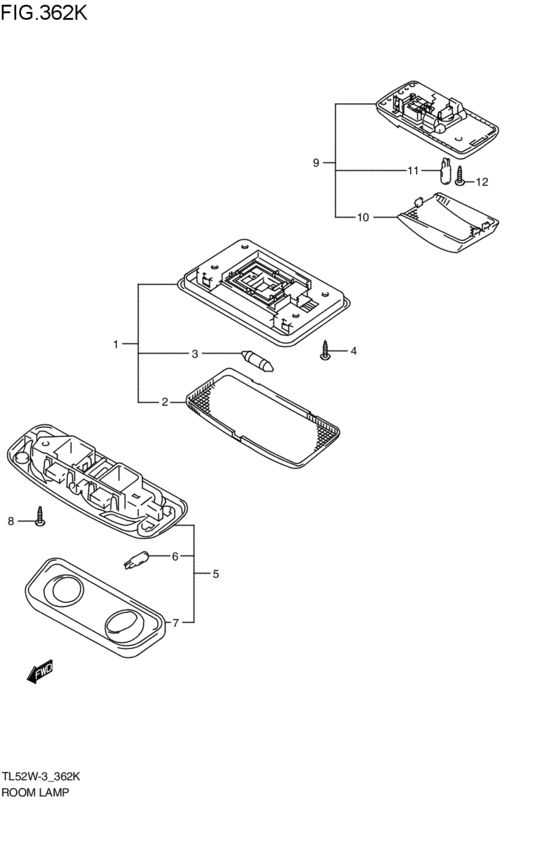

interior lamp (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-60G01-R8H LAMP ASSY,ROOMベ-ジュ; 2002-11-01~2005-02-01 |
36210-60G01-R8H |
US $54.83 |
||
|
1
|
1
36210-60G01-6GS LAMP ASSY,ROOMグレ-; 2002-11-01~2005-02-01 |
36210-60G01-6GS |
US $53.97 |
||
|
2
|
2
36212-60G00-000 LENS,ROOM LAMP2002-11-01~2005-02-01 |
36212-60G00-000 |
US $11.20 |
||
|
3
|
3
09471-12181-000 BULB(12V10W)2002-11-01~2005-02-01 |
09471-12181-000 |
US $38.30 |
||
|
4
|
4
03142-05123-000
Screw
2002-11-01~2005-02-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0512A-000 SCREWScrew, belt cooling duct 2002-11-01~2005-02-01 |
03141-0512A-000 |
from US $0.76 |
||
|
5
|
5
36230-65D01-R8H
LAMP ASSY,SPOT
ベ-ジュ; 2002-11-01~2005-02-01 |
36230-65D01-R8H |
— | ||
|
5
|
5
36230-65D01-6GS LAMP ASSY,SPOTグレ-; 2002-11-01~2005-02-01 |
36230-65D01-6GS |
US $194.56 |
||
|
6
|
6
09471-12113-000 BULB(12V8W)KOITO; 2002-11-01~2005-02-01 |
09471-12113-000 |
from US $1.49 |
||
|
7
|
7
36232-65D00-000 LENS,SPOT LAMP2002-11-01~2005-02-01 |
36232-65D00-000 |
US $8.98 |
||
|
8
|
8
03142-05123-000
Screw
2002-11-01~2005-02-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct 2002-11-01~2005-02-01 |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
36210-74F02-R8H LAMP ASSY,RR ROOMベ-ジュ; 2002-11-01~2005-02-01 |
36210-74F02-R8H |
US $34.59 |
||
|
9
|
9
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; 2002-11-01~2005-02-01 |
36210-74F02-6GS |
from US $20.97 |
||
|
10
|
10
36212-74F00-000 LENS,ROOM LAMP2002-11-01~2005-02-01 |
36212-74F00-000 |
US $4.05 |
||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2002-11-01~2005-02-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2002-11-01~2005-02-01 |
09471-12216-000 |
from US $2.84 |
||
|
12
|
12
03242-05163-000
Screw
2002-11-01~2005-02-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0516A-000 SCREW2002-11-01~2005-02-01 |
03241-0516A-000 |
from US $0.76 |
||
