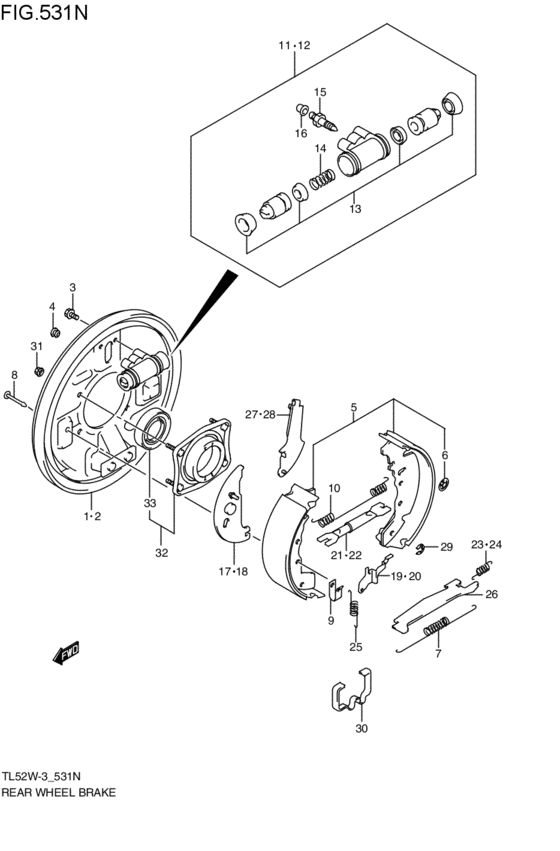

rear wheel brakes (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-65D00-000 PLATE ASSY,BACKING,RH2002-11-01~2005-02-01 |
53110-65D00-000 |
US $120.70 |
||
|
2
|
2
53120-65D00-000 PLATE ASSY,BACKING,LH2002-11-01~2005-02-01 |
53120-65D00-000 |
US $120.70 |
||
|
3
|
3
53131-52D00-000 BOLT,WHEEL CYL2002-11-01~2005-02-01 |
53131-52D00-000 |
US $3.13 |
||
|
4
|
4
53141-65D00-000 PLUG,BACKING PLATE2002-11-01~2005-02-01 |
53141-65D00-000 |
US $2.83 |
||
|
5
|
5
53200-65D11-000
Shoe set,brake
J20A; 2002-11-01~2004-02-01 |
53200-65D11-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-65D13-000 SHOE SET,BRAKEJ20A; 2002-11-01~2004-02-01 |
53200-65D13-000 |
from US $77.40 |
||
|
5
|
5
53200-65D12-000
Shoe set,brake
J20A; 2004-02-01~2005-02-01 |
53200-65D12-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-65D13-000 SHOE SET,BRAKEJ20A; 2004-02-01~2005-02-01 |
53200-65D13-000 |
from US $77.40 |
||
|
6
|
6
53753-67H00-000 PUSH NUT,PARKING LEVERJ20A; 2004-02-01~2005-02-01 |
53753-67H00-000 |
from US $1.22 |
||
|
7
|
7
53231-65D00-000 SPRING,SHOE RETURN LOWER2002-11-01~2005-02-01 |
53231-65D00-000 |
from US $2.88 |
||
|
8
|
8
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down 2002-11-01~2005-02-01 |
53241-82030-000 |
from US $1.46 |
||
|
9
|
9
53243-65D00-000 SPRING,SHOE HOLD DOWN2002-11-01~2005-02-01 |
53243-65D00-000 |
from US $1.92 |
||
|
10
|
10
53331-65D00-000 SPRING,SHOE RETURN UPPER2002-11-01~2005-02-01 |
53331-65D00-000 |
from US $5.04 |
||
|
11
|
11
53401-65D00-000 CYLINDER ASSY,RR WHEEL, RH2002-11-01~2005-02-01 |
53401-65D00-000 |
from US $61.72 |
||
|
12
|
12
53402-65D00-000
CYLINDER ASSY,RR WHEEL, LH
2002-11-01~2005-02-01 |
53402-65D00-000 |
— | ||
| replacement | |||||
|
12
|
12
53402-65D01-000 CYLINDER ASSY WHEEL RR LH2002-11-01~2005-02-01 |
53402-65D01-000 |
from US $61.36 |
||
|
13
|
13
53400-60830-000 PISTON CUP/BOOT SET2002-11-01~2005-02-01 |
53400-60830-000 |
from US $12 |
||
|
14
|
14
53441-56B00-000 SPRING,WHEEL CYLINDER2002-11-01~2005-02-01 |
53441-56B00-000 |
US $3.04 |
||
|
15
|
15
55473-82031-000 PLUG,BLEEDER2002-11-01~2005-02-01 |
55473-82031-000 |
US $4.80 |
||
|
16
|
16
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 2002-11-01~2005-02-01 |
55156-66310-000 |
from US $1.98 |
||
|
17
|
17
53711-65D10-000 LINK ASSY,R2002-11-01~2005-02-01 |
53711-65D10-000 |
US $24.32 |
||
|
18
|
18
53712-65D10-000 LINK ASSY,L2002-11-01~2005-02-01 |
53712-65D10-000 |
US $29.81 |
||
|
19
|
19
53781-65D00-000 LEVER,PARKING ADJUSTER,R2002-11-01~2005-02-01 |
53781-65D00-000 |
US $12.80 |
||
|
20
|
20
53782-65D00-000 LEVER,PARKING ADJUSTER,L2002-11-01~2005-02-01 |
53782-65D00-000 |
US $14.08 |
||
|
21
|
21
53810-65D00-000 ADJUSTER ASSY,R2002-11-01~2005-02-01 |
53810-65D00-000 |
from US $31.82 |
||
|
22
|
22
53850-65D00-000 ADJUSTER ASSY,L2002-11-01~2005-02-01 |
53850-65D00-000 |
from US $34 |
||
|
23
|
23
53791-52D00-000 SPRING,ANTIRATTLE,R2002-11-01~2005-02-01 |
53791-52D00-000 |
from US $2.24 |
||
|
24
|
24
53792-52D00-000 SPRING,ANTIRATTLE,L2002-11-01~2005-02-01 |
53792-52D00-000 |
from US $2.24 |
||
|
25
|
25
53824-65D00-000 SPRING,ADJUSTER2002-11-01~2005-02-01 |
53824-65D00-000 |
from US $2.88 |
||
|
26
|
26
53830-65D10-000 STRUT2002-11-01~2005-02-01 |
53830-65D10-000 |
from US $9.43 |
||
|
27
|
27
53720-65D00-000
レバーアッシ,パーキングシュー,ライト
J20A; 2002-11-01~2004-02-01 |
53720-65D00-000 |
— | ||
| replacements | |||||
|
27
|
27
53720-65D01-000 LEVER ASSY,PARKING SHOE,RJ20A; 2002-11-01~2004-02-01 |
53720-65D01-000 |
from US $17.89 |
||
|
27
|
27
53753-67H00-000 PUSH NUT,PARKING LEVERJ20A; 2002-11-01~2004-02-01 |
53753-67H00-000 |
from US $1.22 |
||
|
27
|
27
53720-65D01-000 LEVER ASSY,PARKING SHOE,RJ20A; 2004-02-01~2005-02-01 |
53720-65D01-000 |
from US $17.89 |
||
|
28
|
28
53730-65D00-000
レバーアッシ,パーキングシュー,レフト
J20A; 2002-11-01~2004-02-01 |
53730-65D00-000 |
— | ||
| replacements | |||||
|
28
|
28
53730-65D01-000 LEVER ASSY,PARKING SHOE,LJ20A; 2002-11-01~2004-02-01 |
53730-65D01-000 |
from US $20.48 |
||
|
28
|
28
53753-67H00-000 PUSH NUT,PARKING LEVERJ20A; 2002-11-01~2004-02-01 |
53753-67H00-000 |
from US $1.22 |
||
|
28
|
28
53730-65D01-000 LEVER ASSY,PARKING SHOE,LJ20A; 2004-02-01~2005-02-01 |
53730-65D01-000 |
from US $20.48 |
||
|
29
|
29
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper 2002-11-01~2004-02-01 |
53753-82030-000 |
from US $0.99 |
||
|
30
|
30
53201-65D00-000 SHIM,ANCHOR2002-11-01~2005-02-01 |
53201-65D00-000 |
US $5.78 |
||
|
31
|
31
09159-08075-000 NUT2002-11-01~2005-02-01 |
09159-08075-000 |
US $0.91 |
||
|
32
|
32
53820-65D00-000 RETAINER,RR WHL BRG OUTER2002-11-01~2005-02-01 |
53820-65D00-000 |
from US $42.17 |
||
|
33
|
33
43593-65D00-000 SEAL,OIL2002-11-01~2005-02-01 |
43593-65D00-000 |
from US $21.51 |
||
