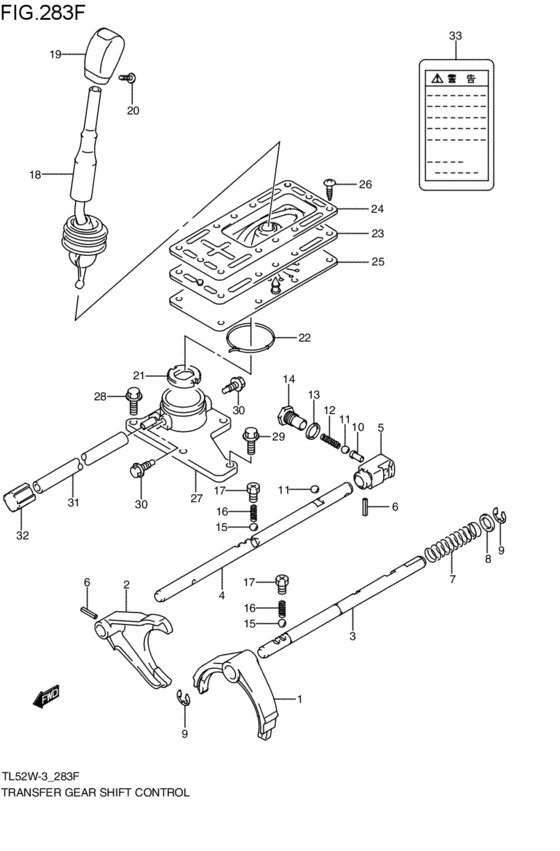

transfer gearlever control (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29311-85F42-000 FORK,T/F FR DRIVE SHF2002-11-01~2005-02-01 |
29311-85F42-000 |
US $128 |
||
|
2
|
2
29321-60A11-000 FORK,T/F REDUCTION SHIFT2002-11-01~2005-02-01 |
29321-60A11-000 |
US $128 |
||
|
3
|
3
29331-82D20-000 SHAFT,T/F FRONT DRIVE SHIFT2002-11-01~2005-02-01 |
29331-82D20-000 |
US $40.11 |
||
|
4
|
4
29332-60A10-000 SHAFT,T/F REDUCTION SHIFT2002-11-01~2005-02-01 |
29332-60A10-000 |
US $42.69 |
||
|
5
|
5
29339-60A00-000 YOKE,REDUCTION SHIFT SFT2002-11-01~2005-02-01 |
29339-60A00-000 |
US $33.86 |
||
|
6
|
6
09205-05012-000 PIN,SPRING(5X25)2002-11-01~2005-02-01 |
09205-05012-000 |
US $1.22 |
||
|
7
|
7
09440-18028-000 SPRING2002-11-01~2005-02-01 |
09440-18028-000 |
US $27.20 |
||
|
8
|
8
09181-14167-000 SHIM(14X22X1)Washer, gear shift rh 2002-11-01~2005-02-01 |
09181-14167-000 |
from US $1.60 |
||
|
9
|
9
09383-10002-000 E RING2002-11-01~2005-02-01 |
09383-10002-000 |
US $18.40 |
||
|
10
|
10
29334-60A10-000 PIN,T/F SELECT RETURN2002-11-01~2005-02-01 |
29334-60A10-000 |
US $4.82 |
||
|
11
|
11
06111-12004-000 BALL2002-11-01~2005-02-01 |
06111-12004-000 |
from US $1.12 |
||
|
12
|
12
09440-10033-000 SPRING2002-11-01~2005-02-01 |
09440-10033-000 |
US $19.10 |
||
|
13
|
13
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) 2002-11-01~2005-02-01 |
09160-18018-000 |
US $0.96 |
||
|
14
|
14
29416-65D00-000 Bolt2002-11-01~2005-02-01 |
29416-65D00-000 |
US $7.58 |
||
|
15
|
15
06111-10003-000 BALL2002-11-01~2005-02-01 |
06111-10003-000 |
from US $0.80 |
||
|
16
|
16
29415-60A00-000 SPRING,T/F GEAR SHF SFT LCTG2002-11-01~2005-02-01 |
29415-60A00-000 |
US $2.72 |
||
|
17
|
17
09128-10002-000 BOLT(10X9)2002-11-01~2005-02-01 |
09128-10002-000 |
from US $1.28 |
||
|
18
|
18
29300-50J02-000 LEVER ASSY,T/F GEAR SHF CONTAT:J20A; 2002-11-01~2005-02-01 |
29300-50J02-000 |
US $112.98 |
||
|
19
|
19
29344-50J00-KN3
KNOB,T/F GEAR SHF CONT
シルバー/ブラック/クローム; J20A; 2002-11-01~2005-02-01 |
29344-50J00-KN3 |
— | ||
| replacement | |||||
|
19
|
19
29344-50J01-KN3 KNOB,T/F GEAR SHF CONTシルバー/ブラック/クローム; J20A; 2002-11-01~2005-02-01 |
29344-50J01-KN3 |
US $47.10 |
||
|
20
|
20
09125-06114-000 SCREW(6X15)2002-11-01~2005-02-01 |
09125-06114-000 |
US $21.70 |
||
|
21
|
21
29535-60A00-000 SEAT,T/F GEAR SHF LEVER2002-11-01~2005-02-01 |
29535-60A00-000 |
US $2.58 |
||
|
22
|
22
09401-57901-000 CLAMP2002-11-01~2005-02-01 |
09401-57901-000 |
US $7.84 |
||
|
23
|
23
29346-50J00-000 BOOT,T/F GR SHF LEVER NO.22002-11-01~2005-02-01 |
29346-50J00-000 |
US $25.39 |
||
|
24
|
24
29347-50J00-000 COVER,T/F LVR BOOT2002-11-01~2005-02-01 |
29347-50J00-000 |
US $16.67 |
||
|
25
|
25
29349-60A11-000 SHEET,T/F GEAR SHIFT LEVERAT:J20A; 2002-11-01~2005-02-01 |
29349-60A11-000 |
US $27.36 |
||
|
26
|
26
03141-06203-000
Screw
2002-11-01~2005-02-01 |
03141-06203-000 |
— | ||
| replacement | |||||
|
26
|
26
03141-0620A-000 SCREW2002-11-01~2005-02-01 |
03141-0620A-000 |
US $0.80 |
||
|
27
|
27
29750-60A00-000 CASE,T/F GEAR SHIFT2002-11-01~2005-02-01 |
29750-60A00-000 |
US $85.38 |
||
|
28
|
28
01550-08203-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0820B-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-0820B-000 |
from US $0.91 |
||
|
28
|
28
01550-0820A-000 BOLTBolt, funnel bracket J20A; 2002-11-01~2005-02-01 |
01550-0820A-000 |
from US $0.96 |
||
|
30
|
30
09103-08384-000 BOLT(8X18.4)2002-11-01~2005-02-01 |
09103-08384-000 |
US $19.10 |
||
|
31
|
31
09352-70113-00B
HOSE(7X11X2000)
L:2000>1040; AT; 2002-11-01~2005-02-01 |
09352-70113-00B |
— | ||
| replacement | |||||
|
31
|
31
09352-70119-00B Hose(7X11X2000)L:2000>1040; AT; 2002-11-01~2005-02-01 |
09352-70119-00B |
from US $22.40 |
||
|
32
|
32
27991-65D01-000 PLUG,BREATHERAT; 2002-11-01~2005-02-01 |
27991-65D01-000 |
from US $1.92 |
||
|
33
|
33
28381-50J80-000
エンブレム,トランスファギヤシフト
2002-11-01~2005-02-01 |
28381-50J80-000 |
— | ||
