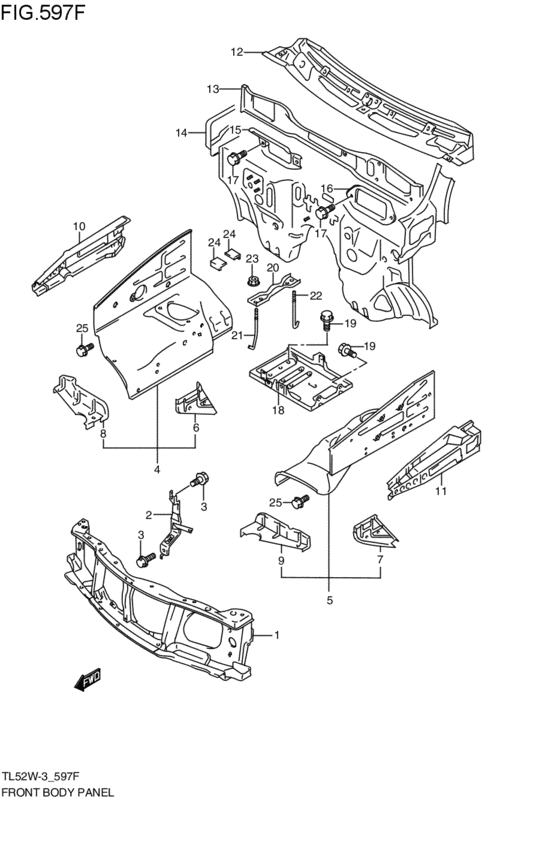

front body panel (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58100-65D12-000 PANEL,FRONT2002-11-01~2005-02-01 |
58100-65D12-000 |
US $408.32 |
||
|
2
|
2
58160-65D01-000 STAY,AIR CLEANER2002-11-01~2005-02-01 |
58160-65D01-000 |
US $22.63 |
||
|
3
|
3
09122-76003-000 SCREW(6X16)Bolt (6x16) 2002-11-01~2005-02-01 |
09122-76003-000 |
US $11.80 |
||
|
4
|
4
58700-65D60-000
PANEL ASSY,FR WHEEL HOUSING,R
2002-11-01~2005-02-01 |
58700-65D60-000 |
— | ||
|
5
|
5
58900-65DE1-000
Panel assy,fr wheel housing,l
2002-12-01~2003-05-01 |
58900-65DE1-000 |
— | ||
|
5
|
5
58900-65D61-000 PANEL ASSY,FR WHEEL HOUSING,L2002-11-01~2002-12-01 |
58900-65D61-000 |
US $320.16 |
||
|
5
|
5
58900-65D90-000
Panel assy,fr wheel housing,l
2003-06-01~2005-02-01 |
58900-65D90-000 |
— | ||
|
6
|
6
58712-65D00-000 EXTENSION,FR WHL HOUSING,R2002-11-01~2005-02-01 |
58712-65D00-000 |
US $13.87 |
||
|
7
|
7
58912-65D00-000 EXTENSION,FR WHL HOUSING,L2002-11-01~2005-02-01 |
58912-65D00-000 |
US $13.87 |
||
|
8
|
8
58714-65D10-000 GUSSET,FR LWR MEMBER,R2002-11-01~2003-01-01 |
58714-65D10-000 |
US $23.74 |
||
|
8
|
8
58714-65D20-000 GUSSET,FR LWR MEMBER,R2003-01-01~2005-02-01 |
58714-65D20-000 |
US $31.46 |
||
|
9
|
9
58914-65D10-000
GUSSET,FR LWR MEMBER,L
2002-11-01~2003-01-01 |
58914-65D10-000 |
— | ||
|
9
|
9
58914-65D20-000 GUSSET,FR LWR MEMBER,L2003-01-01~2005-02-01 |
58914-65D20-000 |
US $31.46 |
||
|
10
|
10
58770-65D30-000 MEMBER,FR BODY SIDE,R2002-11-01~2005-02-01 |
58770-65D30-000 |
US $78.75 |
||
|
11
|
11
58970-65D00-000 MEMBER,FR BODY SIDE,L2002-11-01~2005-02-01 |
58970-65D00-000 |
US $78.75 |
||
|
12
|
12
59110-65D11-000 PANEL,COWL TOPデアイサミセッテイ; 2002-11-01~2005-02-01 |
59110-65D11-000 |
US $375.36 |
||
|
12
|
12
59110-65D30-000
パネル,カウリングトップ
デアイサシヨウ; 2003-06-01~2005-02-01 |
59110-65D30-000 |
— | ||
|
13
|
13
59211-65D12-000
パネル,カウリング,フロント
デアイサミセッテイ; 2002-11-01~2003-01-01 |
59211-65D12-000 |
— | ||
| replacements | |||||
|
13
|
13
09409-07320-000 CAPデアイサミセッテイ; 2002-11-01~2003-01-01 |
09409-07320-000 |
US $1.28 |
||
|
13
|
13
59211-65D13-000
PANEL,COWL FRONT
デアイサミセッテイ; 2002-11-01~2003-01-01 |
59211-65D13-000 |
— | ||
|
13
|
13
59211-65D13-000
PANEL,COWL FRONT
デアイサミセッテイ; 2003-02-01~2005-02-01 |
59211-65D13-000 |
— | ||
|
13
|
13
59211-65D30-000
パネル,カウリング,フロント
デアイサシヨウ; 2003-06-01~2005-02-01 |
59211-65D30-000 |
— | ||
|
14
|
14
59300-65D71-000
Panel,dash
AT; 2002-11-01~2003-05-01 |
59300-65D71-000 |
— | ||
|
14
|
14
59300-65D72-000
Panel,dash
AT; 2003-06-01~2005-02-01 |
59300-65D72-000 |
— | ||
|
15
|
15
72420-65D00-000 LID,WIPER LINK SVCE HOLE2002-11-01~2005-02-01 |
72420-65D00-000 |
US $22.08 |
||
|
16
|
16
72422-60A10-000
LID,WIPER LINK SVCE HOLE SIDE
2002-11-01~2005-02-01 |
72422-60A10-000 |
— | ||
|
17
|
17
02162-06123-000
Bolt (6x12)
2002-11-01~2005-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt 2002-11-01~2005-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2005-02-01 |
02162-0612A-000 |
from US $0.80 |
||
|
18
|
18
58780-65D00-000 BRACKET,BATTERY2002-11-01~2005-02-01 |
58780-65D00-000 |
US $56.67 |
||
|
19
|
19
09122-76003-000 SCREW(6X16)Bolt (6x16) 2002-11-01~2005-02-01 |
09122-76003-000 |
US $11.80 |
||
|
20
|
20
72511-60A03-000 BAND,BATTERY2002-11-01~2005-02-01 |
72511-60A03-000 |
from US $12 |
||
|
21
|
21
72512-82002-000 BOLT,BATTERY2002-11-01~2005-02-01 |
72512-82002-000 |
from US $5.20 |
||
|
22
|
22
72512-82002-000 BOLT,BATTERY2002-11-01~2005-02-01 |
72512-82002-000 |
from US $5.20 |
||
|
23
|
23
08361-15063-000
Nut
2002-11-01~2005-02-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
23
|
23
08361-1506A-000 NUT2002-11-01~2005-02-01 |
08361-1506A-000 |
from US $0.74 |
||
|
24
|
24
72514-60A01-000 PAD,BATTERY BAND2002-11-01~2005-02-01 |
72514-60A01-000 |
US $2.72 |
||
|
25
|
25
09122-76003-000 SCREW(6X16)Bolt (6x16) 2002-11-01~2005-02-01 |
09122-76003-000 |
US $11.80 |
||
