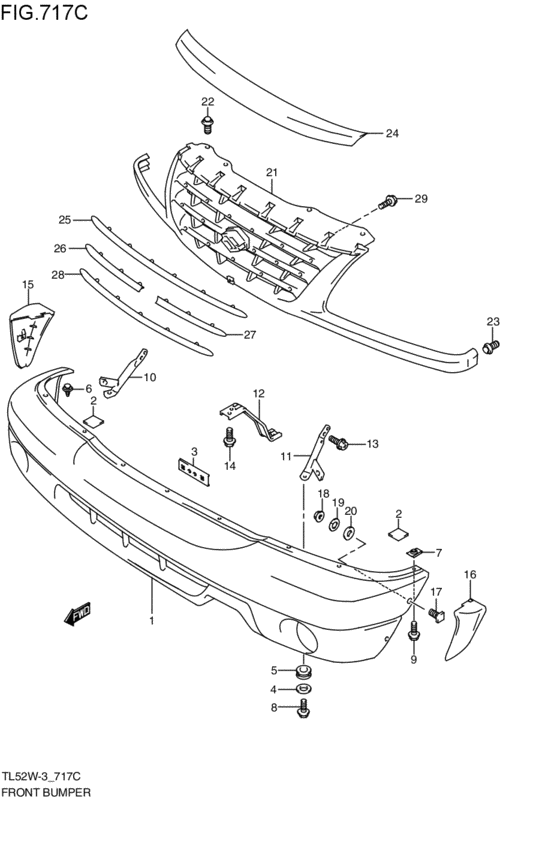

front bumper (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-65DF1-799 BUMPER,FR(PRIMARY)プライマリ-; 2002-11-01~2005-02-01 |
71711-65DF1-799 |
US $1,043.20 |
||
|
2
|
2
51553-15D40-000 CUSHION(50X42X2.0)Cushion, clutch cover 2002-11-01~2005-02-01 |
51553-15D40-000 |
from US $2.29 |
||
|
3
|
3
71771-56B00-000 RETAINER,FR LICENSE PLATE2002-11-01~2005-02-01 |
71771-56B00-000 |
from US $4.41 |
||
|
4
|
4
09169-06062-000 WASHERWasher 2002-11-01~2005-02-01 |
09169-06062-000 |
from US $1.12 |
||
|
5
|
5
09320-09502-000 CUSHIONCushion, leg guard 2002-11-01~2005-02-01 |
09320-09502-000 |
from US $2.88 |
||
|
6
|
6
09409-07325-5PK CLIP(BLACK)ブラック; 2002-11-01~2005-02-01 |
09409-07325-5PK |
from US $1.37 |
||
|
7
|
7
71781-65D00-000 NUT,FR BUMPER SIDE2002-11-01~2005-02-01 |
71781-65D00-000 |
from US $2.56 |
||
|
8
|
8
02162-06203-000
Bolt
2002-11-01~2005-02-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0620C-000 SCREW2002-11-01~2005-02-01 |
02162-0620C-000 |
from US $0.80 |
||
|
9
|
9
02162-06203-000
Bolt
2002-11-01~2005-02-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0620C-000 SCREW2002-11-01~2005-02-01 |
02162-0620C-000 |
from US $0.80 |
||
|
10
|
10
71750-65D10-000 STAY,FR BUMPER LWR SIDE,R2002-11-01~2005-02-01 |
71750-65D10-000 |
US $23.18 |
||
|
11
|
11
71760-65D10-000 STAY,FR BUMPER LWR SIDE,L2002-11-01~2005-02-01 |
71760-65D10-000 |
US $23.18 |
||
|
12
|
12
71771-65D10-000 STAY,FR BUMPER LOWER CENTER2002-11-01~2005-02-01 |
71771-65D10-000 |
from US $15.84 |
||
|
13
|
13
02162-06203-000
Bolt
2002-11-01~2005-02-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0620C-000 SCREW2002-11-01~2005-02-01 |
02162-0620C-000 |
from US $0.80 |
||
|
14
|
14
02162-06163-000
Screw
J20A; 2004-06-01~2005-02-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust J20A; 2004-06-01~2005-02-01 |
02162-0616B-000 |
from US $0.80 |
||
|
14
|
14
02162-06203-000
Bolt
J20A; 2002-11-01~2004-06-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0620C-000 SCREWJ20A; 2002-11-01~2004-06-01 |
02162-0620C-000 |
from US $0.80 |
||
|
15
|
15
71721-65DC0-ZA4
GUARD,FR BUMPER,R
ベ-ジュ; 2002-11-01~2005-02-01 |
71721-65DC0-ZA4 |
— | ||
| replacement | |||||
|
15
|
15
71721-65DC0-799 GUARD,FR BUMPER,Rベ-ジュ; 2002-11-01~2005-02-01 |
71721-65DC0-799 |
from US $43.99 |
||
|
15
|
15
71721-65DC0-Z2S GUARD,FR BUMPER,Rシルバ-; 2002-11-01~2005-02-01 |
71721-65DC0-Z2S |
from US $52.16 |
||
|
16
|
16
71731-65DC0-ZA4 GUARD,FR BUMPER,Lベ-ジュ; 2002-11-01~2005-02-01 |
71731-65DC0-ZA4 |
US $57.04 |
||
|
16
|
16
71731-65DC0-Z2S GUARD,FR BUMPER,Lシルバ-; 2002-11-01~2005-02-01 |
71731-65DC0-Z2S |
from US $57.04 |
||
|
17
|
17
71745-52E00-000 BOLT,FR BUMPER CTR GRILLE2002-11-01~2005-02-01 |
71745-52E00-000 |
US $1.76 |
||
|
18
|
18
08316-10053-000
Nut
2002-11-01~2005-02-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1005A-000 NUT2002-11-01~2005-02-01 |
08316-1005A-000 |
from US $0.77 |
||
|
19
|
19
09160-05045-000 WASHER(5.5X18X1)Washer, vacuum sw valve 2002-11-01~2005-02-01 |
09160-05045-000 |
from US $0.86 |
||
|
20
|
20
09161-06022-000 WASHER(6.2X19X3)2002-11-01~2005-02-01 |
09161-06022-000 |
US $1.28 |
||
|
21
|
21
72111-65D11-000
グリル,フロント(キジショク)
キジショク; 2002-11-01~2005-02-01 |
72111-65D11-000 |
— | ||
| replacement | |||||
|
21
|
21
72111-65D20-000 GRILLE,FRキジショク; 2002-11-01~2005-02-01 |
72111-65D20-000 |
from US $201.60 |
||
|
22
|
22
09409-07332-000 CLIPアッパ; 2002-11-01~2005-02-01 |
09409-07332-000 |
from US $1.26 |
||
|
23
|
23
09409-08322-000 CLIPロア; 2002-11-01~2005-02-01 |
09409-08322-000 |
from US $1.15 |
||
|
24
|
24
72112-65D10-000 GARNISH,FR GRL UPRキジショク; 2002-11-01~2005-02-01 |
72112-65D10-000 |
US $47.47 |
||
|
25
|
25
72113-65D10-0PG GARNISH,FR GRL NO.1クロ-ム; 2002-11-01~2005-02-01 |
72113-65D10-0PG |
US $72.50 |
||
|
26
|
26
72114-65D10-0PG GARNISH,FR GRL,Rクロ-ム; 2002-11-01~2005-02-01 |
72114-65D10-0PG |
from US $20.95 |
||
|
27
|
27
72115-65D10-0PG GARNISH,FR GRL,Lクロ-ム; 2002-11-01~2005-02-01 |
72115-65D10-0PG |
from US $19.28 |
||
|
28
|
28
72116-65D10-0PG GARNISH,FR GRL NO.3クロ-ム; 2002-11-01~2005-02-01 |
72116-65D10-0PG |
US $71.76 |
||
|
29
|
29
03541-04123-000
Screw
2002-11-01~2005-02-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
29
|
29
03541-0412B-000 SCREWScrew, plate 2002-11-01~2005-02-01 |
03541-0412B-000 |
from US $0.80 |
||
|
29
|
29
03541-0412A-000 SCREWScrew, speedometer 2002-11-01~2005-02-01 |
03541-0412A-000 |
from US $0.80 |
||
