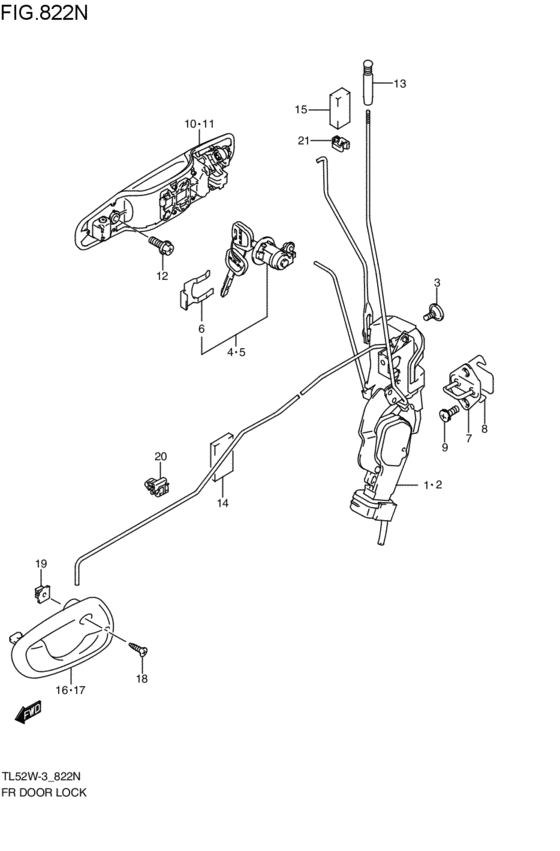

front door lock (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-65D10-000
ラッチアッシ,フロントドア,ライト
2002-11-01~2005-02-01 |
82201-65D10-000 |
— | ||
| replacement | |||||
|
1
|
1
82201-65D11-000 LATCH ASSY,FR DR,R2002-11-01~2005-02-01 |
82201-65D11-000 |
US $327.52 |
||
|
2
|
2
82202-65D10-000
ラッチアッシ,フロントドア,レフト
2002-11-01~2005-02-01 |
82202-65D10-000 |
— | ||
| replacement | |||||
|
2
|
2
82202-65D11-000 LATCH ASSY,FR DR,L2002-11-01~2005-02-01 |
82202-65D11-000 |
US $312.80 |
||
|
3
|
3
82291-65D10-000
スクリュ,フロントドアラッチ
2002-11-01~2005-02-01 |
82291-65D10-000 |
— | ||
| replacement | |||||
|
3
|
3
82291-65D11-000 SCREW2002-11-01~2005-02-01 |
82291-65D11-000 |
US $2.69 |
||
|
4
|
4
82270-52810-000 CYLINDER,FR DR LOCK,R2002-11-01~2005-02-01 |
82270-52810-000 |
US $64.61 |
||
|
5
|
5
82280-52810-000 CYLINDER,FR DR LOCK,L2002-11-01~2005-02-01 |
82280-52810-000 |
US $54.10 |
||
|
6
|
6
82291-52D00-000 RETAINER,FR DOOR CYLINDER2002-11-01~2005-02-01 |
82291-52D00-000 |
US $3.31 |
||
|
7
|
7
82610-60A01-000 STRIKER,FR DOOR LATCH2002-11-01~2005-02-01 |
82610-60A01-000 |
US $21.60 |
||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER2002-11-01~2005-02-01 |
78199-78000-000 |
US $1.60 |
||
|
9
|
9
09137-08011-000 SCREW(8X18)2002-11-01~2005-02-01 |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
82810-65D10-ZA4
HANDLE,SIDE DOOR OUT,R
ベ-ジュ; 2002-11-01~2005-02-01 |
82810-65D10-ZA4 |
— | ||
|
10
|
10
82810-65D10-ZA5
HANDLE,SIDE DOOR OUT,R
ホワイト; 2002-11-01~2005-02-01 |
82810-65D10-ZA5 |
— | ||
|
10
|
10
82810-65D10-Z2S
HANDLE,SIDE DOOR OUT,R
シルバ-; 2002-11-01~2005-02-01 |
82810-65D10-Z2S |
— | ||
|
10
|
10
82810-65D10-Z2U
HANDLE,SIDE DOOR OUT,R
ブル-; 2002-11-01~2005-02-01 |
82810-65D10-Z2U |
— | ||
|
11
|
11
82820-65D10-ZA4
HANDLE,SIDE DOOR OUT,L
ベ-ジュ; 2002-11-01~2005-02-01 |
82820-65D10-ZA4 |
— | ||
|
11
|
11
82820-65D10-ZA5
HANDLE,SIDE DOOR OUT,L
ホワイト; 2002-11-01~2005-02-01 |
82820-65D10-ZA5 |
— | ||
|
11
|
11
82820-65D10-Z2S
HANDLE,SIDE DOOR OUT,L
シルバ-; 2002-11-01~2005-02-01 |
82820-65D10-Z2S |
— | ||
|
11
|
11
82820-65D10-Z2U
HANDLE,SIDE DOOR OUT,L
ブル-; 2002-11-01~2005-02-01 |
82820-65D10-Z2U |
— | ||
|
12
|
12
02162-06123-000
Bolt (6x12)
2002-11-01~2005-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt 2002-11-01~2005-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2005-02-01 |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
82982-65D00-R8H KNOB, DOOR INSIDE LOCK (BEIGE)ベ-ジュ; 2002-11-01~2005-02-01 |
82982-65D00-R8H |
US $2.72 |
||
|
13
|
13
82982-65D00-R8J Knob, Door Inside Lock (Gray)グレ-; 2002-11-01~2005-02-01 |
82982-65D00-R8J |
US $3.90 |
||
|
14
|
14
77591-75000-000 PAD2002-11-01~2005-02-01 |
77591-75000-000 |
US $2.28 |
||
|
15
|
15
83211-65D00-000 PAD2002-11-01~2005-02-01 |
83211-65D00-000 |
US $1.99 |
||
|
16
|
16
83110-76G00-R8H
HANDLE,SIDE DR INSIDE,R(BEIGE)
ベ-ジュ; 2002-11-01~2005-02-01 |
83110-76G00-R8H |
— | ||
| replacement | |||||
|
16
|
16
83110-76G01-R8H HANDLE,SIDE DR INSIDE,Rベ-ジュ; 2002-11-01~2005-02-01 |
83110-76G01-R8H |
US $22.82 |
||
|
16
|
16
83110-76G00-R8J
HANDLE,SIDE DR INSIDE,R(GRAY)
グレ-; 2002-11-01~2005-02-01 |
83110-76G00-R8J |
— | ||
| replacement | |||||
|
16
|
16
83110-76G01-R8J
HANDLE,SIDE DR INSIDE,R
グレ-; 2002-11-01~2005-02-01 |
83110-76G01-R8J |
— | ||
|
17
|
17
83130-76G00-R8H
HANDLE,SIDE DR INSIDE,L(BEIGE)
ベ-ジュ; 2002-11-01~2005-02-01 |
83130-76G00-R8H |
— | ||
| replacement | |||||
|
17
|
17
83130-76G01-R8H HANDLE,SIDE DR INSIDE,Lベ-ジュ; 2002-11-01~2005-02-01 |
83130-76G01-R8H |
US $22.82 |
||
|
17
|
17
83130-76G00-R8J
HANDLE,SIDE DR INSIDE,L(GRAY)
グレ-; 2002-11-01~2005-02-01 |
83130-76G00-R8J |
— | ||
| replacement | |||||
|
17
|
17
83130-76G01-R8J HANDLE,SIDE DR INSIDE,Lグレ-; 2002-11-01~2005-02-01 |
83130-76G01-R8J |
US $43.33 |
||
|
18
|
18
03121-05163-000
Screw
2002-11-01~2005-02-01 |
03121-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03121-0516A-000 SCREW2002-11-01~2005-02-01 |
03121-0516A-000 |
from US $0.80 |
||
|
19
|
19
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE2002-11-01~2005-02-01 |
83119-60B00-000 |
US $1.77 |
||
|
20
|
20
83271-63D10-000 CLIP,DR R/CON ROD2002-11-01~2005-02-01 |
83271-63D10-000 |
US $1.60 |
||
|
21
|
21
09403-07324-000 CLAMP2002-11-01~2005-02-01 |
09403-07324-000 |
US $14 |
||
