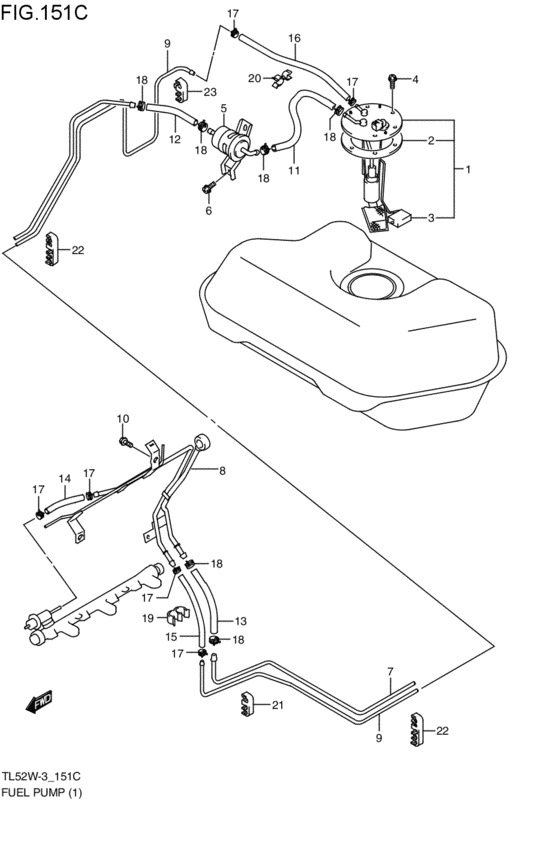

Fuel Pump (J20A; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-65D70-000 PUMP ASSY,FUELJ20A; 2002-11-01~2005-02-01 |
15100-65D70-000 |
US $764.56 |
||
|
2
|
2
15111-65D00-000 GASKET,FUEL PUMPJ20A; 2002-11-01~2005-02-01 |
15111-65D00-000 |
US $13.84 |
||
|
3
|
3
34810-52J00-000 GAUGE ASSY,FUEL LEVELJ20A; 2002-11-01~2005-02-01 |
34810-52J00-000 |
US $90.53 |
||
|
4
|
4
02162-06103-000
Bolt
J20A; 2002-11-01~2005-02-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0610A-000 SCREWJ20A; 2002-11-01~2005-02-01 |
02162-0610A-000 |
from US $0.64 |
||
|
5
|
5
15410-65D00-000 FILTER,FUELJ20A; 2002-11-01~2005-02-01 |
15410-65D00-000 |
US $90.40 |
||
|
6
|
6
02162-06123-000
Bolt (6x12)
J20A; 2002-11-01~2005-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02162-0612B-000 SCREWBolt J20A; 2002-11-01~2005-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
6
|
6
02162-0612A-000 SCREWBolt, bracket J20A; 2002-11-01~2005-02-01 |
02162-0612A-000 |
from US $0.80 |
||
|
7
|
7
15821-65D00-000 PIPE,FUEL FEEDJ20A; 2002-11-01~2005-02-01 |
15821-65D00-000 |
US $72.50 |
||
|
8
|
8
15850-65D00-000 PIPE,FUEL ENG SIDEエンジン サイド; J20A; 2002-11-01~2005-02-01 |
15850-65D00-000 |
US $64.77 |
||
|
9
|
9
15861-65D00-000 PIPE,FUEL RTNJ20A; 2002-11-01~2005-02-01 |
15861-65D00-000 |
US $80.96 |
||
|
10
|
10
01550-06123-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp J20A; 2002-11-01~2005-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTJ20A; 2002-11-01~2005-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
15815-65D00-000 HOSE,FUEL FILTER INLETフィルタ インレット; J20A; 2002-11-01~2005-02-01 |
15815-65D00-000 |
US $58.14 |
||
| replacement | |||||
|
11
|
11
15800-52810-000
HOSE SET,FUEL FILTER INLET
フィルタ インレット; J20A; 2002-11-01~2005-02-01 |
15800-52810-000 |
— | ||
|
12
|
12
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>130; J20A; 2002-11-01~2005-02-01 |
09356-75147-600 |
US $51.68 |
||
|
13
|
13
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>290; J20A; 2002-11-01~2005-02-01 |
09356-75147-600 |
US $51.68 |
||
|
14
|
14
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>100; J20A; 2002-11-01~2005-02-01 |
09356-55117-600 |
US $69.60 |
||
|
15
|
15
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>290; J20A; 2002-11-01~2005-02-01 |
09356-55117-600 |
US $69.60 |
||
|
16
|
16
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>350; J20A; 2002-11-01~2005-02-01 |
09356-55117-600 |
US $69.60 |
||
|
17
|
17
09401-10409-000 CLIPJ20A; 2002-11-01~2005-02-01 |
09401-10409-000 |
from US $1.12 |
||
|
18
|
18
09401-13419-000 CLIPJ20A; 2002-11-01~2005-02-01 |
09401-13419-000 |
from US $1.60 |
||
|
19
|
19
09408-00083-000 CLAMPJ20A; 2002-11-01~2005-02-01 |
09408-00083-000 |
US $17.30 |
||
|
20
|
20
09408-00174-000 CLAMPJ20A; 2002-11-01~2005-02-01 |
09408-00174-000 |
US $1.98 |
||
|
21
|
21
15893-60A11-000 CLAMP,FUEL PIPEJ20A; 2002-11-01~2005-02-01 |
15893-60A11-000 |
US $2.24 |
||
|
22
|
22
15895-60A11-000 CLAMP,FUEL PIPEJ20A; 2002-11-01~2005-02-01 |
15895-60A11-000 |
US $2.56 |
||
|
23
|
23
15893-56B00-000 CLAMP,FUEL PIPEJ20A; 2002-11-01~2005-02-01 |
15893-56B00-000 |
US $2.43 |
||
