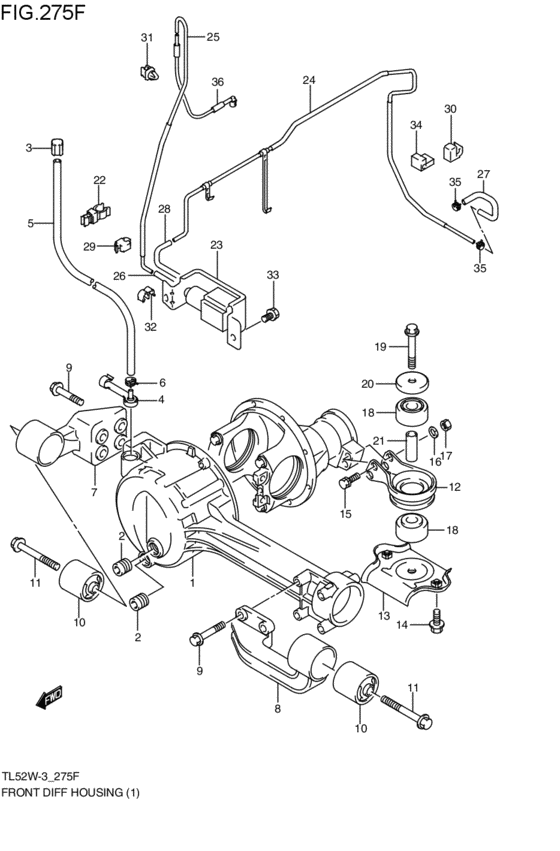

フロントデファレンシャルハウジング (J20A; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27611-82D00-000
Housing,differential
J20A; 2002-11-01~2005-02-01 |
27611-82D00-000 |
— | ||
| replacement | |||||
|
1
|
1
27611-82D01-000 HOUSING,DIFFERENTIALJ20A; 2002-11-01~2005-02-01 |
27611-82D01-000 |
US $461.12 |
||
|
2
|
2
09246-16010-000 PLUGJ20A; 2002-11-01~2005-02-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
2
|
2
09246-16021-000 Plug,t/m Oil DrainJ20A; 2002-11-01~2005-02-01 |
09246-16021-000 |
from US $4.01 |
||
|
3
|
3
27991-65D01-000 PLUG,BREATHERJ20A; 2002-11-01~2005-02-01 |
27991-65D01-000 |
from US $1.92 |
||
|
4
|
4
27895-65D00-000 UNION,DIFF BREATHERJ20A; 2002-11-01~2005-02-01 |
27895-65D00-000 |
US $14.08 |
||
|
5
|
5
27891-65D10-000 HOSE,BREATHERJ20A; 2002-11-01~2005-02-01 |
27891-65D10-000 |
US $17.96 |
||
|
6
|
6
09401-10409-000 CLIPJ20A; 2002-11-01~2005-02-01 |
09401-10409-000 |
from US $1.12 |
||
|
7
|
7
27611-65D00-000 BRACKET,DIFF MOUNT,RJ20A; 2002-11-01~2005-02-01 |
27611-65D00-000 |
US $69.55 |
||
|
8
|
8
27621-65D00-000 BRACKET,MOUNTING,LJ20A; 2002-11-01~2005-02-01 |
27621-65D00-000 |
US $134.40 |
||
|
9
|
9
01570-10303-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01570-10303-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1030A-000 BoltJ20A; 2002-11-01~2005-02-01 |
01570-1030A-000 |
from US $1.12 |
||
|
10
|
10
27550-60A00-000 MOUNTING,DIFFJ20A; 2002-11-01~2005-02-01 |
27550-60A00-000 |
US $92 |
||
|
11
|
11
09103-12033-000 BOLT(12X84)J20A; 2002-11-01~2005-02-01 |
09103-12033-000 |
from US $4.39 |
||
|
12
|
12
29630-85F00-000 BRACKET,DIFF MOUNT RRJ20A; 2002-11-01~2005-02-01 |
29630-85F00-000 |
US $26.13 |
||
|
13
|
13
27675-65D00-000 BRACKET,MTG RR NO.2J20A; 2002-11-01~2005-02-01 |
27675-65D00-000 |
US $14.14 |
||
|
14
|
14
09112-10020-000 BOLT(10X25)J20A; 2002-11-01~2005-02-01 |
09112-10020-000 |
US $26.50 |
||
|
15
|
15
01550-10553-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1055B-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-1055B-000 |
from US $1.44 |
||
|
16
|
16
08321-01103-000
Washer
J20A; 2002-11-01~2005-02-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0110B-000 WASHER,LOCKWasher, knuckle end J20A; 2002-11-01~2005-02-01 |
08321-0110B-000 |
from US $0.80 |
||
|
16
|
16
08321-0110A-000 WASHER,LOCKJ20A; 2002-11-01~2005-02-01 |
08321-0110A-000 |
from US $0.80 |
||
|
17
|
17
08310-00103-000
Nut
J20A; 2002-11-01~2005-02-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0010B-000 NUTJ20A; 2002-11-01~2005-02-01 |
08310-0010B-000 |
from US $0.80 |
||
|
17
|
17
08310-0010A-000 NUTJ20A; 2002-11-01~2005-02-01 |
08310-0010A-000 |
from US $0.80 |
||
|
18
|
18
27561-60A01-000 MOUNTING,DIFF RRJ20A; 2002-11-01~2005-02-01 |
27561-60A01-000 |
from US $9.99 |
||
|
19
|
19
01550-10653-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-10653-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-1065A-000 BOLTJ20A; 2002-11-01~2005-02-01 |
01550-1065A-000 |
US $1.60 |
||
|
20
|
20
71632-83010-000
ボトム,ボディマウンチング
J20A; 2002-11-01~2005-02-01 |
71632-83010-000 |
— | ||
| replacement | |||||
|
20
|
20
71632-83011-000 BOTTOM,BODY MOUNTINGJ20A; 2002-11-01~2005-02-01 |
71632-83011-000 |
US $2.24 |
||
|
21
|
21
09180-10117-000 SPACER(10.9X17.3X46.8)J20A; 2002-11-01~2005-02-01 |
09180-10117-000 |
from US $3.96 |
||
|
22
|
22
27892-65D00-000 CLAMP,DIFF BRTHR HOSEJ20A; 2002-11-01~2005-02-01 |
27892-65D00-000 |
US $1.68 |
||
|
23
|
23
27940-65D03-000 PUMP ASSY,FREE AXLEJ20A; 2002-11-01~2005-02-01 |
27940-65D03-000 |
from US $274.43 |
||
|
24
|
24
27960-65D20-000 PIPE,FREE AXLE NO.1J20A; 2002-11-01~2005-02-01 |
27960-65D20-000 |
US $22.63 |
||
|
25
|
25
27970-65D20-000 PIPE,FREE AXLE NO.2J20A; 2002-11-01~2005-02-01 |
27970-65D20-000 |
US $9.72 |
||
|
26
|
26
27981-65D00-000 HOSE,F/A NO.2J20A; 2002-11-01~2005-02-01 |
27981-65D00-000 |
US $5.59 |
||
|
27
|
27
27985-65D01-000 HOSE,F/A DIFFJ20A; 2002-11-01~2005-02-01 |
27985-65D01-000 |
US $5.70 |
||
| replacement | |||||
|
27
|
27
09355-45857-600 HOSE(4.5X8.5X600)J20A; 2002-11-01~2005-02-01 |
09355-45857-600 |
US $17.03 |
||
|
28
|
28
09355-45857-600 HOSE(4.5X8.5X600)L:600>260; J20A; 2002-11-01~2005-02-01 |
09355-45857-600 |
US $17.03 |
||
|
29
|
29
51751-60B00-000 CLAMP,BRAKE PIPEJ20A; 2002-11-01~2005-02-01 |
51751-60B00-000 |
US $1.60 |
||
|
30
|
30
51752-70B00-000 CLAMP,BK PIPEJ20A; 2002-11-01~2005-02-01 |
51752-70B00-000 |
US $1.60 |
||
|
31
|
31
51771-63B00-000 CLAMP,BK PIPE,RR X MBRJ20A; 2002-11-01~2005-02-01 |
51771-63B00-000 |
US $2.58 |
||
|
32
|
32
09408-00033-000 CLAMPClamp J20A; 2002-11-01~2005-02-01 |
09408-00033-000 |
from US $1.60 |
||
|
33
|
33
01550-08163-000
Bolt, holder
J20A; 2002-11-01~2005-02-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0816B-000 BOLTJ20A; 2002-11-01~2005-02-01 |
01550-0816B-000 |
from US $0.91 |
||
|
33
|
33
01550-0816A-000 BOLTBolt, rear J20A; 2002-11-01~2005-02-01 |
01550-0816A-000 |
from US $0.91 |
||
|
34
|
34
27978-65D00-000 CLAMP,FREE AXLEPIPEJ20A; 2002-11-01~2005-02-01 |
27978-65D00-000 |
US $3.02 |
||
|
35
|
35
09401-08409-000 CLIPJ20A; 2002-11-01~2005-02-01 |
09401-08409-000 |
from US $0.73 |
||
|
36
|
36
27980-65D00-000 HOSE ASSY,FREE AXLEJ20A; 2002-11-01~2005-02-01 |
27980-65D00-000 |
US $9.16 |
||
