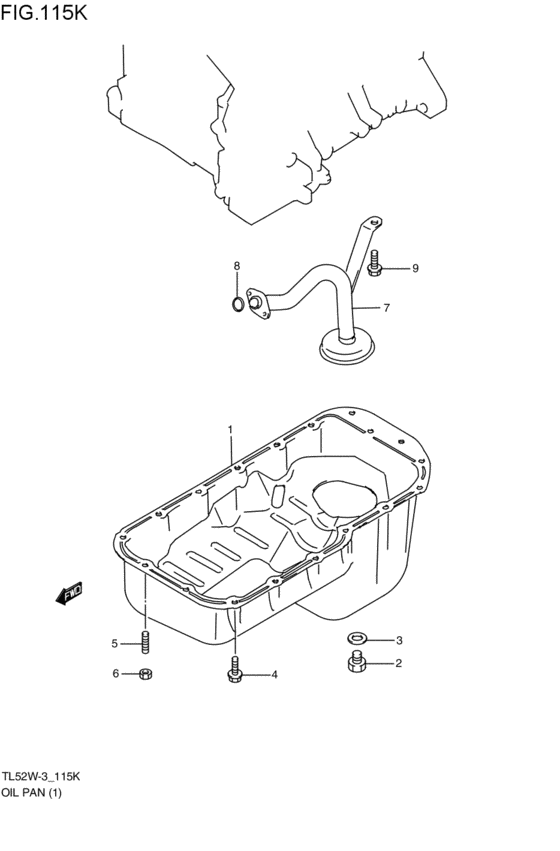

oil pan (J20A; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-77E02-000 PAN,OILJ20A; 2002-11-01~2005-02-01 |
11510-77E02-000 |
from US $124.63 |
||
|
2
|
2
09247-14027-000 PLUG(14X11.5)Plug, oil drain J20A; 2002-11-01~2005-02-01 |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
2
|
2
09247-14044-000 DRAIN PLUG (M14x1.5)J20A; 2002-11-01~2005-02-01 |
09247-14044-000 |
from US $1.33 |
||
|
3
|
3
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union J20A; 2002-11-01~2005-02-01 |
09168-14015-000 |
from US $1.17 |
||
|
4
|
4
09117-06061-000 BOLT(6X16)J20A; 2002-11-01~2005-02-01 |
09117-06061-000 |
from US $1.13 |
||
|
5
|
5
01421-06123-000
Stud m6x1x24
J20A; 2002-11-01~2005-02-01 |
01421-06123-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0612A-000 BOLT,STUDJ20A; 2002-11-01~2005-02-01 |
01421-0612A-000 |
from US $1.12 |
||
|
6
|
6
09159-06077-000 NUTJ20A; 2002-11-01~2005-02-01 |
09159-06077-000 |
US $1.28 |
||
|
7
|
7
16520-77E01-000
STRAINER,OIL PUMP
J20A; 2002-11-01~2005-02-01 |
16520-77E01-000 |
— | ||
|
8
|
8
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) J20A; 2002-11-01~2005-02-01 |
09280-22020-000 |
from US $1.60 |
||
|
9
|
9
01550-06163-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0616B-000 BOLTJ20A; 2002-11-01~2005-02-01 |
01550-0616B-000 |
from US $0.76 |
||
|
9
|
9
01550-0616A-000 BOLTJ20A; 2002-11-01~2005-02-01 |
01550-0616A-000 |
from US $0.76 |
||
