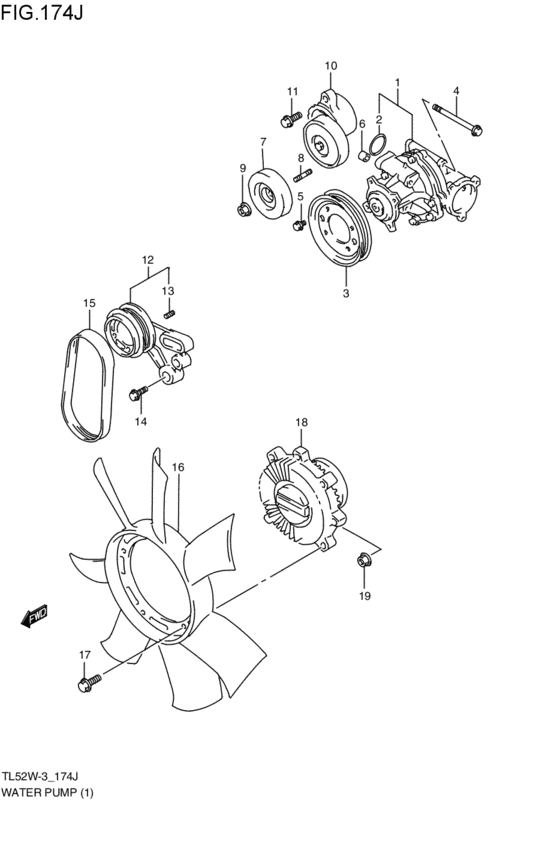

water pump (J20A; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-77812-000
ポンプセット,ウォータ
J20A; 2002-11-01~2005-02-01 |
17400-77812-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-77816-000
PUMP SET,WATER
J20A; 2002-11-01~2005-02-01 |
17400-77816-000 |
— | ||
|
2
|
2
09280-44008-000 O RING(D:2.4,ID:39.5)J20A; 2002-11-01~2005-01-01 |
09280-44008-000 |
from US $2.81 |
||
|
2
|
2
17611-65J00-000 O-RING,WATER PUMPJ20A; 2005-02-01~2005-02-01 |
17611-65J00-000 |
from US $3.47 |
||
|
3
|
3
17511-77E00-000 PULLEY,WATER PUMPJ20A; 2002-11-01~2005-02-01 |
17511-77E00-000 |
from US $36.99 |
||
|
4
|
4
09103-08336-000 BOLT(8X90)J20A; 2002-11-01~2005-02-01 |
09103-08336-000 |
US $2.24 |
||
|
5
|
5
01550-06123-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp J20A; 2002-11-01~2005-02-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTJ20A; 2002-11-01~2005-02-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
04211-11129-000 PINJ20A; 2002-11-01~2005-02-01 |
04211-11129-000 |
from US $0.95 |
||
|
7
|
7
17530-77E00-000 PULLEY,GEN BELT IDLERJ20A; 2002-11-01~2005-02-01 |
17530-77E00-000 |
US $97.28 |
||
|
8
|
8
09108-10125-000 BOLT,STUDJ20A; 2002-11-01~2005-02-01 |
09108-10125-000 |
from US $2.24 |
||
|
9
|
9
08316-10103-000
Nut
J20A; 2002-11-01~2005-02-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTJ20A; 2002-11-01~2005-02-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
17540-77E10-000 TENSIONER ASSY,GEN BELTJ20A; 2002-11-01~2005-02-01 |
17540-77E10-000 |
from US $190.37 |
||
|
11
|
11
01550-08303-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830B-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover J20A; 2002-11-01~2005-02-01 |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
17140-77E06-000
プーリ,クーリングファン
J20A; 2002-11-01~2005-02-01 |
17140-77E06-000 |
— | ||
| replacement | |||||
|
12
|
12
17140-77E07-000 PULLEY,COOLING FANJ20A; 2002-11-01~2005-02-01 |
17140-77E07-000 |
from US $122.99 |
||
|
13
|
13
17146-77E00-000
スタッドボルト
J20A; 2002-11-01~2005-02-01 |
17146-77E00-000 |
— | ||
| replacement | |||||
|
13
|
13
09108-08244-000 BOLT,STUDJ20A; 2002-11-01~2005-02-01 |
09108-08244-000 |
US $1.92 |
||
|
14
|
14
17145-77E00-000 BOLT,FAN PULLEYJ20A; 2002-11-01~2005-02-01 |
17145-77E00-000 |
US $3.05 |
||
|
15
|
15
17144-77E00-000 BELT,COOLING FAN L:495J20A; 2002-11-01~2005-02-01 |
17144-77E00-000 |
from US $24.08 |
||
|
16
|
16
17110-65D00-000 FAN,ENG COOLINGJ20A; 2002-11-01~2005-02-01 |
17110-65D00-000 |
from US $72.25 |
||
|
17
|
17
01550-06203-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-0620B-000 BOLTBolt, inspection cap J20A; 2002-11-01~2005-02-01 |
01550-0620B-000 |
from US $0.76 |
||
|
18
|
18
17120-77E07-000 CLUTCH ASSY,FANJ20A; 2002-11-01~2005-02-01 |
17120-77E07-000 |
from US $207.63 |
||
|
19
|
19
08316-10083-000
Nut
J20A; 2002-11-01~2005-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1008B-000 NUTJ20A; 2002-11-01~2005-02-01 |
08316-1008B-000 |
from US $0.76 |
||
