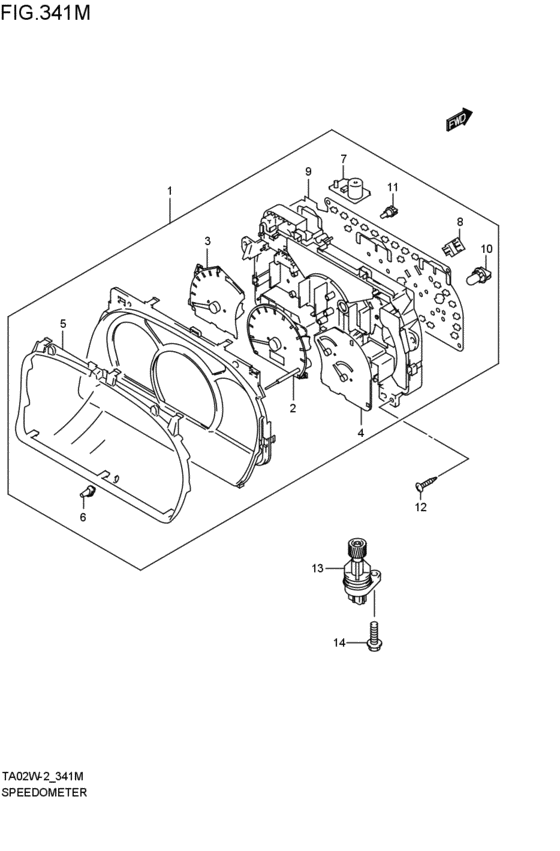

speed meter (2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FG2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-82D71-000
SPEEDOMETER ASSY,COMB
J20A:AT; 2000-04-01~2002-09-01 |
34100-82D71-000 |
— | ||
|
2
|
2
34120-65D40-000 BODY ASSY,SPEEDOMETERJ20A,H25A; 2000-04-01~2002-09-01 |
34120-65D40-000 |
US $338.56 |
||
|
3
|
3
34220-65D00-000
BODY ASSY,TACHOMETER
G16A,J20A; 2000-04-01~2002-09-01 |
34220-65D00-000 |
— | ||
|
4
|
4
34320-65DJ2-000 BODY ASSY,FUEL METERAT; 2000-04-01~2002-09-01 |
34320-65DJ2-000 |
US $113.71 |
||
|
5
|
5
34112-65D00-000 GLASS,METER WINDOW2000-04-01~2002-09-01 |
34112-65D00-000 |
US $40.48 |
||
|
6
|
6
34145-65D00-000 COVER,TRIP KNOB2000-04-01~2002-09-01 |
34145-65D00-000 |
US $7.68 |
||
|
7
|
7
34191-65D00-000 BUZZER ASSY,WARNING2000-04-01~2002-09-01 |
34191-65D00-000 |
US $60.35 |
||
|
8
|
8
34155-82DG0-000 CIRCUIT,ABS WARNING2000-04-01~2002-09-01 |
34155-82DG0-000 |
US $30.54 |
||
|
9
|
9
34152-82D10-000
Plate,printed
AT; 2000-04-01~2002-09-01 |
34152-82D10-000 |
— | ||
|
10
|
10
34171-70G00-000 BULB,14V 3.4W G202000-04-01~2002-09-01 |
34171-70G00-000 |
US $6.59 |
||
|
11
|
11
34171-70G10-000 BULB,14V 1.4W2000-04-01~2002-09-01 |
34171-70G10-000 |
from US $2.59 |
||
|
12
|
12
03541-05163-000
Screw
2000-04-01~2002-09-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW2000-04-01~2002-09-01 |
03541-0516A-000 |
from US $0.68 |
||
|
13
|
13
34910-65D30-000
Sensor assy,speed
J20A,H25A; 2000-04-01~2002-09-01 |
34910-65D30-000 |
— | ||
| replacement | |||||
|
13
|
13
34910-65D31-000 SENSOR ASSY,SPEEDJ20A,H25A; 2000-04-01~2002-09-01 |
34910-65D31-000 |
US $182.40 |
||
|
14
|
14
01550-06163-000
Bolt
4WD; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BOLT4WD; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BOLT4WD; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
