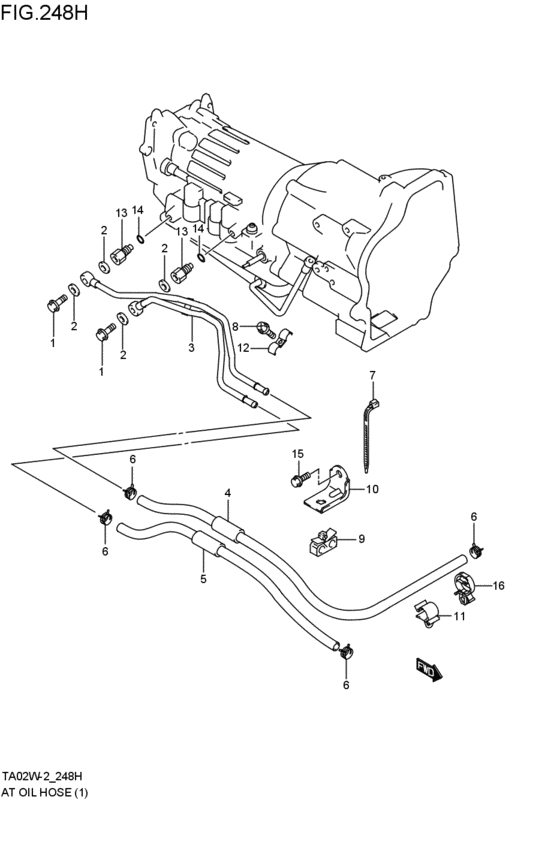

at - oil hose (AT:(G16A,J20A); 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-14012-000 BOLT,14X27Bolt, union (14x27) AT:(G16A,J20A); 2000-04-01~2002-09-01 |
09360-14012-000 |
from US $6.88 |
||
|
2
|
2
22913-65D30-000
Gasket
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
22913-65D30-000 |
— | ||
| replacements | |||||
|
2
|
2
22913-59J10-000 GASKET,14X20X0.9AT:(G16A,J20A); 2000-04-01~2002-09-01 |
22913-59J10-000 |
US $1.52 |
||
|
2
|
2
22910-65810-000 BOLT&GASKET SETAT:(G16A,J20A); 2000-04-01~2002-09-01 |
22910-65810-000 |
US $15.96 |
||
|
3
|
3
22910-77EA0-000
パイプ,オイル
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
22910-77EA0-000 |
— | ||
| replacement | |||||
|
3
|
3
22910-77EA1-000 PIPE,OILAT:(G16A,J20A); 2000-04-01~2002-09-01 |
22910-77EA1-000 |
US $116 |
||
|
4
|
4
22931-56X51-000 HOSE,OILL:1000>900; AT:(G16A,J20A); 2000-04-01~2002-09-01 |
22931-56X51-000 |
US $104 |
||
|
5
|
5
22931-56X51-000 HOSE,OILL:1000>720; AT:J20A; 2000-04-01~2002-09-01 |
22931-56X51-000 |
US $104 |
||
|
6
|
6
09401-13419-000 CLIPAT:(G16A,J20A); 2000-04-01~2002-09-01 |
09401-13419-000 |
US $1.60 |
||
|
7
|
7
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap AT:(G16A,J20A); 2000-04-01~2002-09-01 |
09407-14403-000 |
from US $2.08 |
||
|
8
|
8
02162-06103-000
Bolt
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREWAT:(G16A,J20A); 2000-04-01~2002-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
09403-14313-000 CLAMPAT:J20A; 2000-04-01~2002-09-01 |
09403-14313-000 |
US $2.40 |
||
|
10
|
10
22935-65D10-000
BRACKET,OIL HOSE CLAMP N0.2
AT:J20A; 2000-04-01~2002-09-01 |
22935-65D10-000 |
— | ||
|
11
|
11
09403-14315-000 CLAMPClamp, harness AT:(G16A,J20A); 2000-04-01~2002-09-01 |
09403-14315-000 |
US $17.70 |
||
|
12
|
12
24899-85500-000
PLATE,OIL PIPE
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
24899-85500-000 |
— | ||
|
13
|
13
24743-57B10-000 UNION,OILAT:(G16A,J20A); 2000-04-01~2002-09-01 |
24743-57B10-000 |
US $46.36 |
||
|
14
|
14
29737-57B00-000 O-RING,OIL PIPEAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29737-57B00-000 |
US $2.28 |
||
|
15
|
15
01550-08163-000
Bolt, holder
AT:J20A; 2000-04-01~2002-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 BOLTAT:J20A; 2000-04-01~2002-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BOLTBolt, rear AT:J20A; 2000-04-01~2002-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
09403-14315-000 CLAMPClamp, harness AT:(G16A,J20A); 2000-04-01~2002-09-01 |
09403-14315-000 |
US $17.70 |
||
