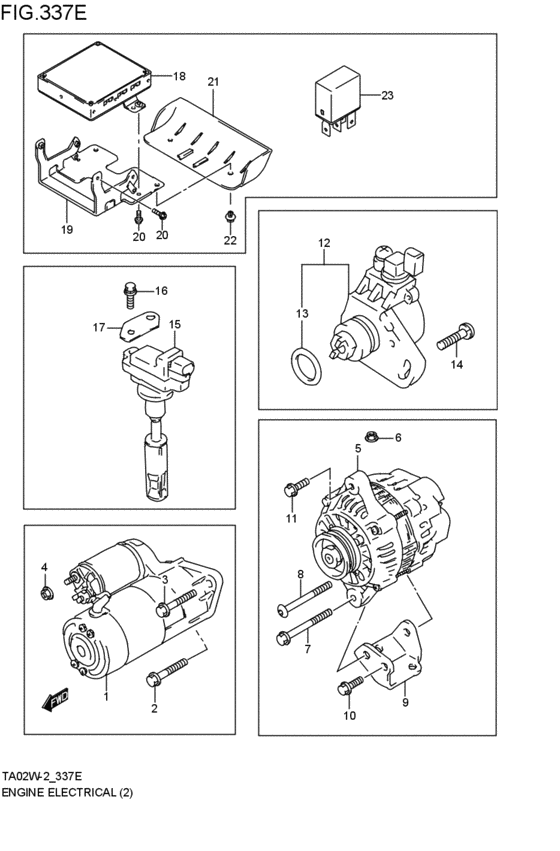

engine electrical (J20A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A13-000
モータアッシ,スターティング
J20A:AT; 2000-04-01~2002-09-01 |
31100-60A13-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
J20A:AT; 2000-04-01~2002-09-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGJ20A:AT; 2000-04-01~2002-09-01 |
31100-60A24-000 |
US $668.80 |
||
|
2
|
2
01550-08353-000
Bolt, rear
J20A:AT; 2000-04-01~2002-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLTJ20A:AT; 2000-04-01~2002-09-01 |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLTJ20A:AT; 2000-04-01~2002-09-01 |
01550-0835A-000 |
from US $1.12 |
||
|
3
|
3
01550-08503-000
Bolt
J20A:AT; 2000-04-01~2002-09-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 BoltJ20A:AT; 2000-04-01~2002-09-01 |
01550-0850B-000 |
from US $1.28 |
||
|
4
|
4
08316-10083-000
Nut
J20A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTJ20A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31400-77E24-000
Generator assy
J20A; 2000-04-01~2002-09-01 |
31400-77E24-000 |
— | ||
| replacements | |||||
|
5
|
5
31400-77E23-REM
Alternator
J20A; 2000-04-01~2002-09-01 |
31400-77E23-REM |
— | ||
|
5
|
5
31400-77E25-000 GENERATOR ASSYJ20A; 2000-04-01~2002-09-01 |
31400-77E25-000 |
US $823.68 |
||
|
6
|
6
08316-10063-000
Nut
J20A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUTJ20A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
01550-10853-000
Bolt
J20A; 2000-04-01~2000-10-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1085A-000 BOLTJ20A; 2000-04-01~2000-10-01 |
01550-1085A-000 |
US $1.68 |
||
|
8
|
8
09139-10002-000 SCREW(10X85)J20A; 2000-10-01~2002-09-01 |
09139-10002-000 |
US $28.70 |
||
|
9
|
9
11551-77EA0-000 BRACKET,GENERATORJ20A; 2000-04-01~2002-09-01 |
11551-77EA0-000 |
US $13.43 |
||
|
10
|
10
01550-10203-000
Bolt
J20A; 2000-04-01~2002-09-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1020A-000 BOLTBolt, bal sprocket J20A; 2000-04-01~2002-09-01 |
01550-1020A-000 |
from US $0.96 |
||
|
11
|
11
01550-08253-000
Bolt, rear
J20A; 2000-04-01~2002-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLTJ20A; 2000-04-01~2002-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLTJ20A; 2000-04-01~2002-09-01 |
01550-0825A-000 |
from US $1.12 |
||
|
12
|
12
33100-65D00-000 SENSOR ASSY,CAM ANGLEJ20A; 2000-04-01~2002-09-01 |
33100-65D00-000 |
US $1,024.80 |
||
|
13
|
13
33278-77E10-000 O-RINGJ20A; 2000-04-01~2002-09-01 |
33278-77E10-000 |
from US $3.04 |
||
|
14
|
14
09138-08003-000 SCREW(8X30)J20A; 2000-04-01~2002-09-01 |
09138-08003-000 |
from US $6.06 |
||
|
15
|
15
33410-77E21-000
コイルアッシ,イグニツシヨン
J20A; 2000-04-01~2002-09-01 |
33410-77E21-000 |
— | ||
| replacement | |||||
|
15
|
15
33410-77E22-000 COIL ASSY,IGNITIONJ20A; 2000-04-01~2002-09-01 |
33410-77E22-000 |
from US $132.35 |
||
|
16
|
16
01580-05203-000
ボルト
J20A; 2000-04-01~2002-09-01 |
01580-05203-000 |
— | ||
| replacement | |||||
|
16
|
16
01580-0520B-000 BOLTJ20A; 2000-04-01~2002-09-01 |
01580-0520B-000 |
US $15.50 |
||
|
17
|
17
36995-77E90-000 BRACKET,ENG HARNJ20A; 2000-04-01~2002-09-01 |
36995-77E90-000 |
US $2.83 |
||
|
18
|
18
33921-65D11-000
Controller assy,epi
J20A:AT; 2000-04-01~2002-09-01 |
33921-65D11-000 |
— | ||
| replacement | |||||
|
18
|
18
33921-65D12-000
CONTROLLER ASSY,EPI
J20A:AT; 2000-04-01~2002-09-01 |
33921-65D12-000 |
— | ||
|
19
|
19
33924-65D20-000 BRACKET,EPI CONTJ20A; 2000-04-01~2002-09-01 |
33924-65D20-000 |
US $17.88 |
||
|
20
|
20
02162-06103-000
Bolt
J20A; 2000-04-01~2002-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0610A-000 SCREWJ20A; 2000-04-01~2002-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
21
|
21
33924-65D00-000 COVER,EPI CONTJ20A; 2000-04-01~2002-09-01 |
33924-65D00-000 |
US $12.59 |
||
|
22
|
22
09409-07332-000 CLIPJ20A; 2000-04-01~2002-09-01 |
09409-07332-000 |
from US $1.10 |
||
|
23
|
23
38860-76F01-000 RELAY ASSYRelay, starting motor J20A; 2000-04-01~2002-09-01 |
38860-76F01-000 |
from US $19.89 |
||
