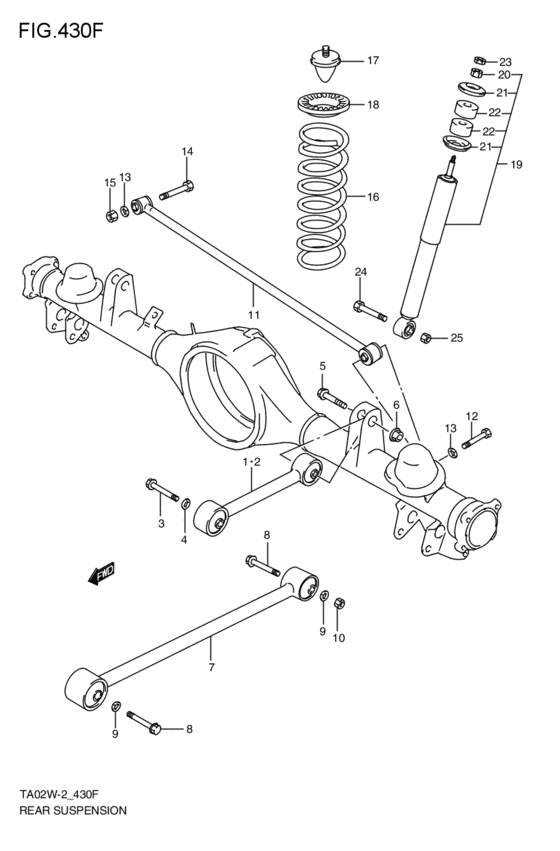

rear suspension (2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46201-65D00-000
ロッドアッシ,リヤサスペンション,アッパ
ライト; 2000-04-01~2002-09-01 |
46201-65D00-000 |
— | ||
| replacement | |||||
|
1
|
1
46201-65D50-000 ROD ASSY,RR SPNSN UPPERライト; 2000-04-01~2002-09-01 |
46201-65D50-000 |
US $144 |
||
|
2
|
2
46201-65D50-000 ROD ASSY,RR SPNSN UPPERレフト; 2000-04-01~2002-09-01 |
46201-65D50-000 |
US $144 |
||
|
3
|
3
09135-12007-000 BOLT(12X76)2000-04-01~2002-09-01 |
09135-12007-000 |
US $29.40 |
||
|
4
|
4
08321-01123-000
Washer
2000-04-01~2002-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0112A-000 WASHER,LOCK2000-04-01~2002-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
5
|
5
09135-12008-000 BOLT(12X71)2000-04-01~2002-09-01 |
09135-12008-000 |
US $26.50 |
||
|
6
|
6
08316-10123-000
Nut
2000-04-01~2002-09-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT2000-04-01~2002-09-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
46202-65D01-000 ROD ASSY,RR SPNSN LOWER2000-04-01~2002-09-01 |
46202-65D01-000 |
US $125.41 |
||
|
8
|
8
09135-12009-000 BOLT(12X88)2000-04-01~2002-09-01 |
09135-12009-000 |
US $41.20 |
||
|
9
|
9
08321-01123-000
Washer
2000-04-01~2002-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0112A-000 WASHER,LOCK2000-04-01~2002-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
10
|
10
08310-00123-000
Nut
2000-04-01~2002-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
10
|
10
08310-0012A-000 NUT2000-04-01~2002-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
11
|
11
46300-65D00-000 ROD ASSY,RR SPNSN LATERAL2000-04-01~2002-09-01 |
46300-65D00-000 |
US $219.20 |
||
|
12
|
12
09100-12071-000 BOLT(12X65)2000-04-01~2002-09-01 |
09100-12071-000 |
US $2.88 |
||
|
13
|
13
08321-01123-000
Washer
2000-04-01~2002-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0112A-000 WASHER,LOCK2000-04-01~2002-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
14
|
14
09135-12003-000 BOLT(12X71)2000-04-01~2002-09-01 |
09135-12003-000 |
US $2.88 |
||
|
15
|
15
08310-00123-000
Nut
2000-04-01~2002-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
15
|
15
08310-0012A-000 NUT2000-04-01~2002-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
16
|
16
41311-65D01-000 SPRING,REAR COIL5DR; 2000-04-01~2002-09-01 |
41311-65D01-000 |
US $152 |
||
|
17
|
17
42110-60A10-000 STOPPER,BUMP2000-04-01~2002-09-01 |
42110-60A10-000 |
US $24 |
||
|
18
|
18
41211-65D00-000 SEAT,COIL SPRING RUBBER2000-04-01~2002-09-01 |
41211-65D00-000 |
US $11.59 |
||
|
19
|
19
41700-65D02-000
アブソーバアッシ,リヤショック
2000-04-01~2002-09-01 |
41700-65D02-000 |
— | ||
| replacements | |||||
|
19
|
19
41700-65D03-000
ABSORBER ASSY,RR SHOCK
2000-04-01~2002-09-01 |
41700-65D03-000 |
— | ||
|
19
|
19
41700-65D04-000
Absorber Assy,rr Shock
2000-04-01~2002-09-01 |
41700-65D04-000 |
— | ||
|
20
|
20
08310-00103-000
Nut
2000-04-01~2002-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
20
|
20
08310-0010B-000 NUT2000-04-01~2002-09-01 |
08310-0010B-000 |
from US $0.80 |
||
|
20
|
20
08310-0010A-000 NUT2000-04-01~2002-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
21
|
21
09165-10003-000 WASHER2000-04-01~2002-09-01 |
09165-10003-000 |
US $22.40 |
||
|
22
|
22
09320-10040-000 BUSHING2000-04-01~2002-09-01 |
09320-10040-000 |
US $8 |
||
|
23
|
23
08310-00103-000
Nut
2000-04-01~2002-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0010B-000 NUT2000-04-01~2002-09-01 |
08310-0010B-000 |
from US $0.80 |
||
|
23
|
23
08310-0010A-000 NUT2000-04-01~2002-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
24
|
24
09135-12003-000 BOLT(12X71)2000-04-01~2002-09-01 |
09135-12003-000 |
US $2.88 |
||
|
25
|
25
08316-10123-000
Nut
2000-04-01~2002-09-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1012A-000 NUT2000-04-01~2002-09-01 |
08316-1012A-000 |
from US $0.96 |
||
