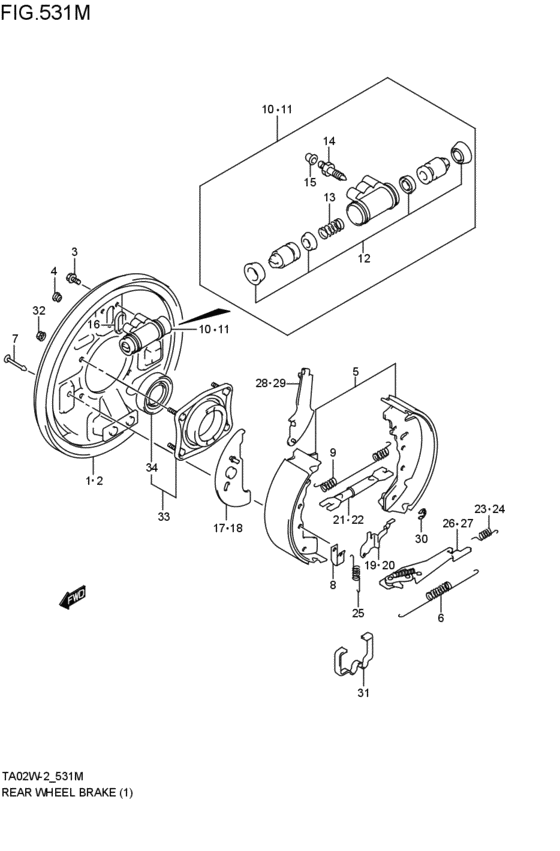

rear wheel brakes (200004 カラ 200009 マデ; 2000-04-01~2000-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-65D00-000 PLATE ASSY,BACKING,RH2000-04-01~2000-09-01 |
53110-65D00-000 |
US $120.70 |
||
|
2
|
2
53120-65D00-000 PLATE ASSY,BACKING,LH2000-04-01~2000-09-01 |
53120-65D00-000 |
US $120.70 |
||
|
3
|
3
01550-06103-000
Bolt, front
2000-04-01~2000-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt 2000-04-01~2000-09-01 |
01550-0610B-000 |
from US $0.80 |
||
|
3
|
3
01550-0610A-000 BOLT2000-04-01~2000-09-01 |
01550-0610A-000 |
from US $0.80 |
||
|
4
|
4
53141-65D00-000 PLUG,BACKING PLATE2000-04-01~2000-09-01 |
53141-65D00-000 |
US $2.83 |
||
|
5
|
5
53200-65D01-000
シューセット,ブレーキ
2000-04-01~2000-09-01 |
53200-65D01-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-65D13-000 SHOE SET,BRAKE2000-04-01~2000-09-01 |
53200-65D13-000 |
from US $77.40 |
||
|
6
|
6
53231-65D00-000 SPRING,SHOE RETURN LOWER2000-04-01~2000-09-01 |
53231-65D00-000 |
from US $2.88 |
||
|
7
|
7
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down 2000-04-01~2000-09-01 |
53241-82030-000 |
from US $1.46 |
||
|
8
|
8
53243-65D00-000 SPRING,SHOE HOLD DOWN2000-04-01~2000-09-01 |
53243-65D00-000 |
from US $1.92 |
||
|
9
|
9
53331-65D00-000 SPRING,SHOE RETURN UPPER2000-04-01~2000-09-01 |
53331-65D00-000 |
from US $5.04 |
||
|
10
|
10
53401-65D00-000 CYLINDER ASSY,RR WHEEL, RH2000-04-01~2000-09-01 |
53401-65D00-000 |
from US $61.72 |
||
|
11
|
11
53402-65D00-000
CYLINDER ASSY,RR WHEEL, LH
2000-04-01~2000-09-01 |
53402-65D00-000 |
— | ||
| replacement | |||||
|
11
|
11
53402-65D01-000 CYLINDER ASSY WHEEL RR LH2000-04-01~2000-09-01 |
53402-65D01-000 |
from US $61.36 |
||
|
12
|
12
53400-60830-000 PISTON CUP/BOOT SET2000-04-01~2000-09-01 |
53400-60830-000 |
from US $12 |
||
|
13
|
13
53441-56B00-000 SPRING,WHEEL CYLINDER2000-04-01~2000-09-01 |
53441-56B00-000 |
US $3.04 |
||
|
14
|
14
55473-82031-000 PLUG,BLEEDER2000-04-01~2000-09-01 |
55473-82031-000 |
US $4.80 |
||
|
15
|
15
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug レフト; 2000-04-01~2000-09-01 |
55156-66310-000 |
from US $1.98 |
||
|
16
|
16
53417-82030-000 GASKET,RR WHEEL CYLINDERGasket, rear wheel cylinder 2000-04-01~2000-09-01 |
53417-82030-000 |
from US $4.71 |
||
|
17
|
17
53711-65D00-000 LINK ASSY,R2000-04-01~2000-09-01 |
53711-65D00-000 |
from US $29.81 |
||
|
18
|
18
53712-65D00-000 LINK ASSY,L2000-04-01~2000-09-01 |
53712-65D00-000 |
from US $22.49 |
||
|
19
|
19
53781-65D00-000 LEVER,PARKING ADJUSTER,R2000-04-01~2000-09-01 |
53781-65D00-000 |
US $12.80 |
||
|
20
|
20
53782-65D00-000 LEVER,PARKING ADJUSTER,L2000-04-01~2000-09-01 |
53782-65D00-000 |
US $14.08 |
||
|
21
|
21
53810-65D00-000 ADJUSTER ASSY,R2000-04-01~2000-09-01 |
53810-65D00-000 |
from US $31.82 |
||
|
22
|
22
53850-65D00-000 ADJUSTER ASSY,L2000-04-01~2000-09-01 |
53850-65D00-000 |
from US $34 |
||
|
23
|
23
53791-65D00-000 SPRING,ADJUSTER,R2000-04-01~2000-09-01 |
53791-65D00-000 |
from US $2.13 |
||
|
24
|
24
53792-65D00-000 SPRING,ADJUSTER,L2000-04-01~2000-09-01 |
53792-65D00-000 |
from US $2.13 |
||
|
25
|
25
53824-65D00-000 SPRING,ADJUSTER2000-04-01~2000-09-01 |
53824-65D00-000 |
from US $2.88 |
||
|
26
|
26
53830-65D00-000 STRUT ASSY,R2000-04-01~2000-09-01 |
53830-65D00-000 |
from US $46.55 |
||
|
27
|
27
53840-65D00-000 STRUT ASSY,L2000-04-01~2000-09-01 |
53840-65D00-000 |
from US $48.44 |
||
|
28
|
28
53720-65D00-000
レバーアッシ,パーキングシュー,ライト
2000-04-01~2000-09-01 |
53720-65D00-000 |
— | ||
| replacements | |||||
|
28
|
28
53720-65D01-000 LEVER ASSY,PARKING SHOE,R2000-04-01~2000-09-01 |
53720-65D01-000 |
from US $17.89 |
||
|
28
|
28
53753-67H00-000 PUSH NUT,PARKING LEVER2000-04-01~2000-09-01 |
53753-67H00-000 |
from US $1.22 |
||
|
29
|
29
53730-65D00-000
レバーアッシ,パーキングシュー,レフト
2000-04-01~2000-09-01 |
53730-65D00-000 |
— | ||
| replacements | |||||
|
29
|
29
53730-65D01-000 LEVER ASSY,PARKING SHOE,L2000-04-01~2000-09-01 |
53730-65D01-000 |
from US $20.48 |
||
|
29
|
29
53753-67H00-000 PUSH NUT,PARKING LEVER2000-04-01~2000-09-01 |
53753-67H00-000 |
from US $1.22 |
||
|
30
|
30
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper 2000-04-01~2000-09-01 |
53753-82030-000 |
from US $0.99 |
||
|
31
|
31
53201-65D00-000 SHIM,ANCHOR2000-04-01~2000-09-01 |
53201-65D00-000 |
US $5.78 |
||
|
32
|
32
09159-08075-000 NUT2000-04-01~2000-09-01 |
09159-08075-000 |
US $0.91 |
||
|
33
|
33
53820-65D00-000 RETAINER,RR WHL BRG OUTER2000-04-01~2000-09-01 |
53820-65D00-000 |
from US $42.17 |
||
|
34
|
34
43593-65D00-000 SEAL,OIL2000-04-01~2000-09-01 |
43593-65D00-000 |
from US $21.51 |
||
