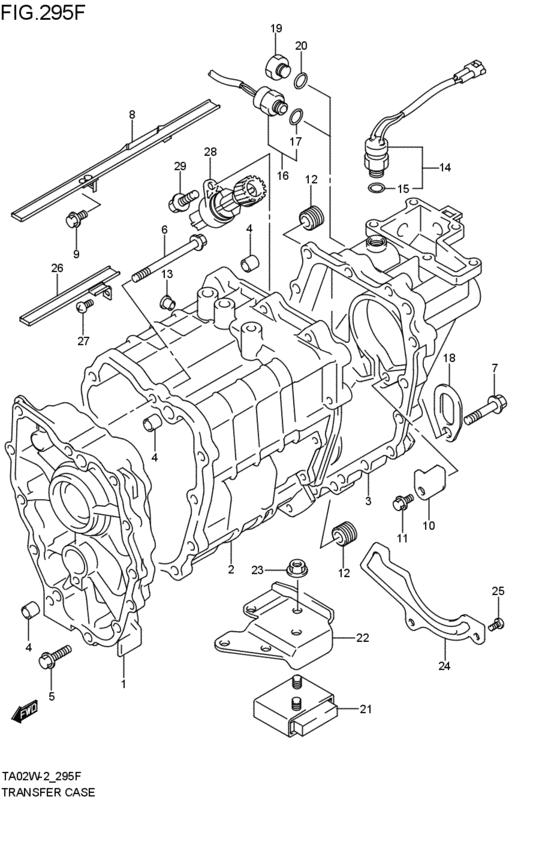

transfer case (4WD; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-85F40-000 CASE,T/F,FR4WD; 2000-04-01~2002-09-01 |
29511-85F40-000 |
US $297.60 |
||
|
2
|
2
29521-60A10-000
CASE,T/F,CENTER
4WD; 2000-04-01~2002-09-01 |
29521-60A10-000 |
— | ||
|
3
|
3
29531-85F10-000
ケース,トランスファ,リヤ
4WD; 2000-04-01~2002-09-01 |
29531-85F10-000 |
— | ||
| replacements | |||||
|
3
|
3
29531-85F11-000 CASE,T/F,RR4WD; 2000-04-01~2002-09-01 |
29531-85F11-000 |
US $296.24 |
||
|
3
|
3
01550-0855B-000 Bolt4WD; 2000-04-01~2002-09-01 |
01550-0855B-000 |
from US $5.58 |
||
|
4
|
4
04211-13149-000 PIN4WD; 2000-04-01~2002-09-01 |
04211-13149-000 |
from US $1.28 |
||
|
5
|
5
01550-08303-000
Bolt
4WD; 2000-04-01~2002-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830B-000 Bolt4WD; 2000-04-01~2002-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01550-0830A-000 BOLTBolt, mount oil seal cover 4WD; 2000-04-01~2002-09-01 |
01550-0830A-000 |
from US $1.12 |
||
|
6
|
6
01550-08803-000
Bolt (8x80)
4WD; 2000-04-01~2002-09-01 |
01550-08803-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0880B-000 BoltBolt, muffler bracket & stand 4WD; 2000-04-01~2002-09-01 |
01550-0880B-000 |
from US $3.05 |
||
|
6
|
6
01550-0880A-000 BOLT4WD; 2000-04-01~2002-09-01 |
01550-0880A-000 |
from US $1.76 |
||
|
7
|
7
01550-08453-000
Bolt,cylinder h
4WD; 2000-04-01~2002-09-01 |
01550-08453-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0845B-000 BOLT4WD; 2000-04-01~2002-09-01 |
01550-0845B-000 |
from US $1.06 |
||
|
7
|
7
01550-0845A-000 BOLTBolt, oil pump (s) 4WD; 2000-04-01~2002-09-01 |
01550-0845A-000 |
US $5.03 |
||
|
8
|
8
29528-60A00-000
GUTTER,T/F CTR CASE
4WD; 2000-04-01~2002-09-01 |
29528-60A00-000 |
— | ||
|
9
|
9
09103-06083-000
Bolt (6x12)
4WD; 2000-04-01~2002-09-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
9
|
9
09103-06285-000 BOLT(6X12)Bolt (6x12) 4WD; 2000-04-01~2002-09-01 |
09103-06285-000 |
from US $1.28 |
||
|
10
|
10
29536-60A01-000 PLATE,T/F REAR CASE4WD; 2000-04-01~2002-09-01 |
29536-60A01-000 |
US $2.10 |
||
|
11
|
11
09103-06083-000
Bolt (6x12)
4WD; 2000-04-01~2002-09-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-06285-000 BOLT(6X12)Bolt (6x12) 4WD; 2000-04-01~2002-09-01 |
09103-06285-000 |
from US $1.28 |
||
|
12
|
12
09246-16010-000
PLUG
4WD; 2000-04-01~2002-09-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
12
|
12
09246-16021-000 Plug,t/m Oil Drain4WD; 2000-04-01~2002-09-01 |
09246-16021-000 |
US $4.86 |
||
|
13
|
13
09250-08001-000 PLUG(OD:14)Cap, remote control shaft 4WD; 2000-04-01~2002-09-01 |
09250-08001-000 |
US $1.28 |
||
|
14
|
14
37680-60A01-000 SWITCH ASSY,4WD4WD; 2000-04-01~2002-09-01 |
37680-60A01-000 |
US $63.20 |
||
|
15
|
15
09280-11002-000 O RING(D:1.9,ID:11.4)4WD; 2000-04-01~2002-09-01 |
09280-11002-000 |
US $1.52 |
||
|
16
|
16
37680-60A11-000 SWITCH ASSY,4WD4WD:AT; 2000-04-01~2002-09-01 |
37680-60A11-000 |
US $81.60 |
||
|
17
|
17
09280-11002-000 O RING(D:1.9,ID:11.4)4WD:AT; 2000-04-01~2002-09-01 |
09280-11002-000 |
US $1.52 |
||
|
18
|
18
11851-62B00-000 HOOK4WD; 2000-04-01~2002-09-01 |
11851-62B00-000 |
US $5.02 |
||
|
24
|
24
29527-60A00-000 PLATE,T/F SYNC4WD; 2000-04-01~2002-09-01 |
29527-60A00-000 |
US $4.71 |
||
|
25
|
25
09125-06113-000 SCREW(6X12)4WD; 2000-04-01~2002-09-01 |
09125-06113-000 |
US $21.70 |
||
|
26
|
26
29529-60A00-000 GUTTER,T/F SYNC4WD; 2000-04-01~2002-09-01 |
29529-60A00-000 |
US $6.99 |
||
|
27
|
27
09125-06113-000 SCREW(6X12)4WD; 2000-04-01~2002-09-01 |
09125-06113-000 |
US $21.70 |
||
|
28
|
28
34910-65D30-000
Sensor assy,speed
4WD:(J20A,H25A); 2000-04-01~2002-09-01 |
34910-65D30-000 |
— | ||
| replacement | |||||
|
28
|
28
34910-65D31-000 SENSOR ASSY,SPEED4WD:(J20A,H25A); 2000-04-01~2002-09-01 |
34910-65D31-000 |
US $182.40 |
||
|
29
|
29
01550-06163-000
Bolt
4WD; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0616B-000 BOLT4WD; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
29
|
29
01550-0616A-000 BOLT4WD; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
