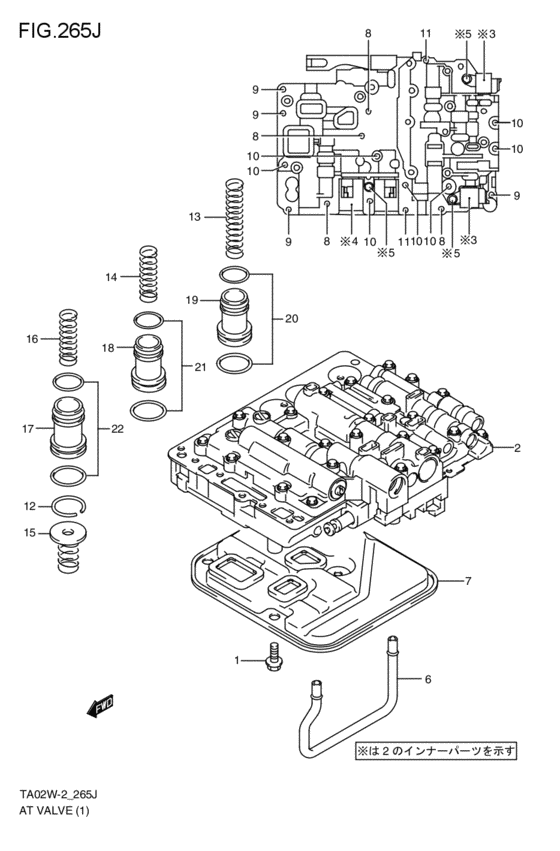

at - valve (AT:(G16A,J20A); 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- SHD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26449-65G00-000
ボルト,バルブボディトランスミッションケース
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
26449-65G00-000 |
— | ||
| replacement | |||||
|
1
|
1
26449-65G10-000 BoltAT:(G16A,J20A); 2000-04-01~2002-09-01 |
26449-65G10-000 |
US $1.80 |
||
|
2
|
2
26500-65D90-000
ボディアッシ,コントロールバルブ
AT:J20A; 2000-04-01~2002-09-01 |
26500-65D90-000 |
— | ||
|
3
|
3
26591-65D10-000 SOLENOID ASSY,T/MAT:(G16A,J20A); 2000-04-01~2002-09-01 |
26591-65D10-000 |
US $307.20 |
||
|
4
|
4
26593-65D10-000
ソレノイドアッシ,ロックアップ
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
26593-65D10-000 |
— | ||
|
5
|
5
25991-60G10-000 BOLTAT:(G16A,J20A); 2000-04-01~2002-09-01 |
25991-60G10-000 |
US $3.20 |
||
|
6
|
6
26543-65D10-000 TUBE,O/D BRAKE APPLYAT:(G16A,J20A); 2000-04-01~2002-09-01 |
26543-65D10-000 |
US $24.66 |
||
|
7
|
7
26570-65D10-000 STRAINER ASSY,OILAT:(G16A,J20A); 2000-04-01~2002-09-01 |
26570-65D10-000 |
US $246.40 |
||
|
8
|
8
29971-57B00-000 BoltAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29971-57B00-000 |
US $5.59 |
||
|
9
|
9
29971-65D10-000 BoltAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29971-65D10-000 |
US $5.81 |
||
|
10
|
10
29972-65D10-000 BOLT,VALVE BODY T/M CASEAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29972-65D10-000 |
US $8.98 |
||
|
11
|
11
29986-57B00-000 BOLT,BRAKE APPLYAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29986-57B00-000 |
US $6.73 |
||
|
12
|
12
26412-57B00-000 CIRCLIP,FWD CL ACC PSTNAT:(G16A,J20A); 2000-04-01~2002-09-01 |
26412-57B00-000 |
US $5.23 |
||
|
13
|
13
29641-65D10-000 SPRING,FORWARD CL ACC NO.1AT:(G16A,J20A); 2000-04-01~2002-09-01 |
29641-65D10-000 |
US $17.60 |
||
|
14
|
14
29643-65D30-000 SPRING,DIRECT CL ACC NO.2AT:J20A; 2000-04-01~2002-09-01 |
29643-65D30-000 |
US $12.80 |
||
|
15
|
15
29644-85FA0-000 SPRING,2ND BRAKE ACC NO.1AT:(G16A,J20A); 2000-04-01~2002-09-01 |
29644-85FA0-000 |
US $18.40 |
||
|
16
|
16
29645-57B10-000
SPRING,2ND BRAKE ACC NO,2
AT:(G16A,J20A); 2000-04-01~2002-09-01 |
29645-57B10-000 |
— | ||
|
17
|
17
29721-85FA0-000 PISTON,2ND BRAKE ACCAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29721-85FA0-000 |
US $28 |
||
|
18
|
18
29722-57B00-000 PISTON,DIRECT CL ACCAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29722-57B00-000 |
US $27.20 |
||
|
19
|
19
29723-77ED0-000 PISTON,FWD CLUTCH ACCAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29723-77ED0-000 |
US $84 |
||
|
20
|
20
29731-57BT0-000 O-RING,FORWARD CL ACC PSTNAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29731-57BT0-000 |
US $13.28 |
||
|
21
|
21
29732-57BT0-000 O-RING SET,DIRECT CL ACC PSTNAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29732-57BT0-000 |
US $12.32 |
||
|
22
|
22
29733-57BT0-000 O-RING SET,2ND BK ACC PSTNAT:(G16A,J20A); 2000-04-01~2002-09-01 |
29733-57BT0-000 |
US $12.32 |
||
