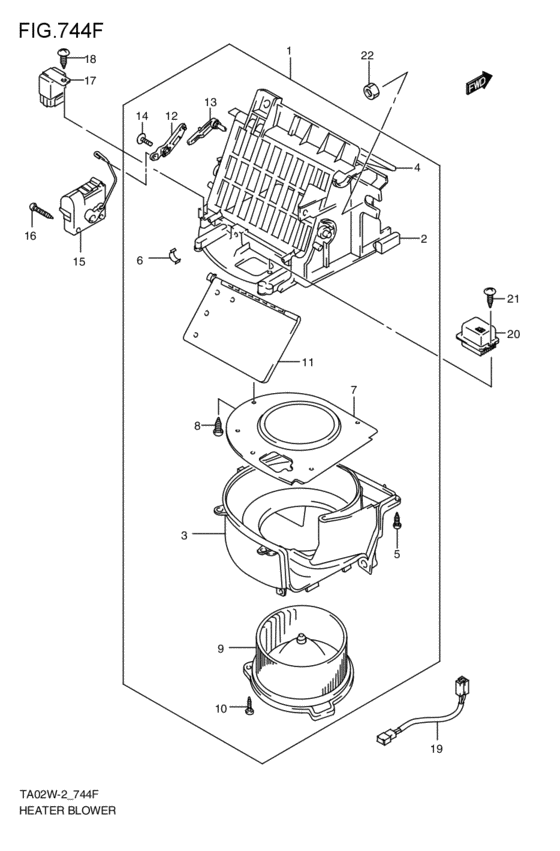

heater bloy (2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- SHD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-65D82-000
ブロワユニット
2000-04-01~2002-09-01 |
74200-65D82-000 |
— | ||
|
2
|
2
74211-65D01-000 CASE,BLOWER,UPPER2000-04-01~2002-09-01 |
74211-65D01-000 |
US $50.78 |
||
|
3
|
3
74212-65D01-000 CASE,BLOWER,LOWER2000-04-01~2002-09-01 |
74212-65D01-000 |
US $61.09 |
||
|
4
|
4
74163-84101-000 PACKINGL:750>580; 2000-04-01~2002-09-01 |
74163-84101-000 |
from US $7.90 |
||
|
5
|
5
03511-04163-000
Screw
2000-04-01~2002-09-01 |
03511-04163-000 |
— | ||
| replacement | |||||
|
5
|
5
03511-0416A-000 SCREW2000-04-01~2002-09-01 |
03511-0416A-000 |
from US $2.45 |
||
|
6
|
6
74133-82000-000 CLAMP,CASE2000-04-01~2002-09-01 |
74133-82000-000 |
US $2.91 |
||
|
7
|
7
74213-65D00-000 PLATE2000-04-01~2002-09-01 |
74213-65D00-000 |
US $12.36 |
||
|
8
|
8
03111-04103-000
スクリュ
2000-04-01~2002-09-01 |
03111-04103-000 |
— | ||
| replacement | |||||
|
8
|
8
03111-0410A-000 SCREW2000-04-01~2002-09-01 |
03111-0410A-000 |
US $7.70 |
||
|
9
|
9
74250-65D01-000 MOTOR ASSY2000-04-01~2002-09-01 |
74250-65D01-000 |
US $464.64 |
||
|
10
|
10
74135-82000-000 SCREW,MOTOR2000-04-01~2002-09-01 |
74135-82000-000 |
US $1.73 |
||
|
11
|
11
74271-65D00-000 DOOR ASSY2000-04-01~2002-09-01 |
74271-65D00-000 |
US $28.15 |
||
|
12
|
12
74281-65D10-000
LEVER,MAIN
2000-04-01~2002-09-01 |
74281-65D10-000 |
— | ||
|
13
|
13
74282-65D11-000
LEVER,DR
2000-04-01~2002-09-01 |
74282-65D11-000 |
— | ||
|
14
|
14
74183-82005-000 SCREW,LINK2000-04-01~2002-09-01 |
74183-82005-000 |
US $1.73 |
||
|
15
|
15
95652-65D00-000
ACTUATOR,FRESH / RECIRCULATION
DENSO; 2000-04-01~2002-09-01 |
95652-65D00-000 |
— | ||
|
16
|
16
03511-04353-000
Screw
2000-04-01~2002-09-01 |
03511-04353-000 |
— | ||
| replacement | |||||
|
16
|
16
03511-0435A-000 SCREW2000-04-01~2002-09-01 |
03511-0435A-000 |
US $9.90 |
||
|
17
|
17
74291-65D00-000 RELAY,BLOWER MOTOR2000-04-01~2002-09-01 |
74291-65D00-000 |
US $38.27 |
||
|
18
|
18
03541-04123-000
Screw
2000-04-01~2002-09-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
18
|
18
03541-0412B-000 SCREWScrew, plate 2000-04-01~2002-09-01 |
03541-0412B-000 |
from US $0.80 |
||
|
18
|
18
03541-0412A-000 SCREWScrew, speedometer 2000-04-01~2002-09-01 |
03541-0412A-000 |
from US $0.80 |
||
|
19
|
19
74292-65D00-000 HARNESS,BLOWER MOTOR2000-04-01~2002-09-01 |
74292-65D00-000 |
US $15.42 |
||
|
20
|
20
95626-65D00-000 DRIVER,BLOWER FAN2000-04-01~2002-09-01 |
95626-65D00-000 |
from US $104.18 |
||
|
21
|
21
03541-04123-000
Screw
2000-04-01~2002-09-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
21
|
21
03541-0412B-000 SCREWScrew, plate 2000-04-01~2002-09-01 |
03541-0412B-000 |
from US $0.80 |
||
|
21
|
21
03541-0412A-000 SCREWScrew, speedometer 2000-04-01~2002-09-01 |
03541-0412A-000 |
from US $0.80 |
||
|
22
|
22
09159-06081-000 NUT2000-04-01~2002-09-01 |
09159-06081-000 |
US $12.50 |
||
